SQUARE D

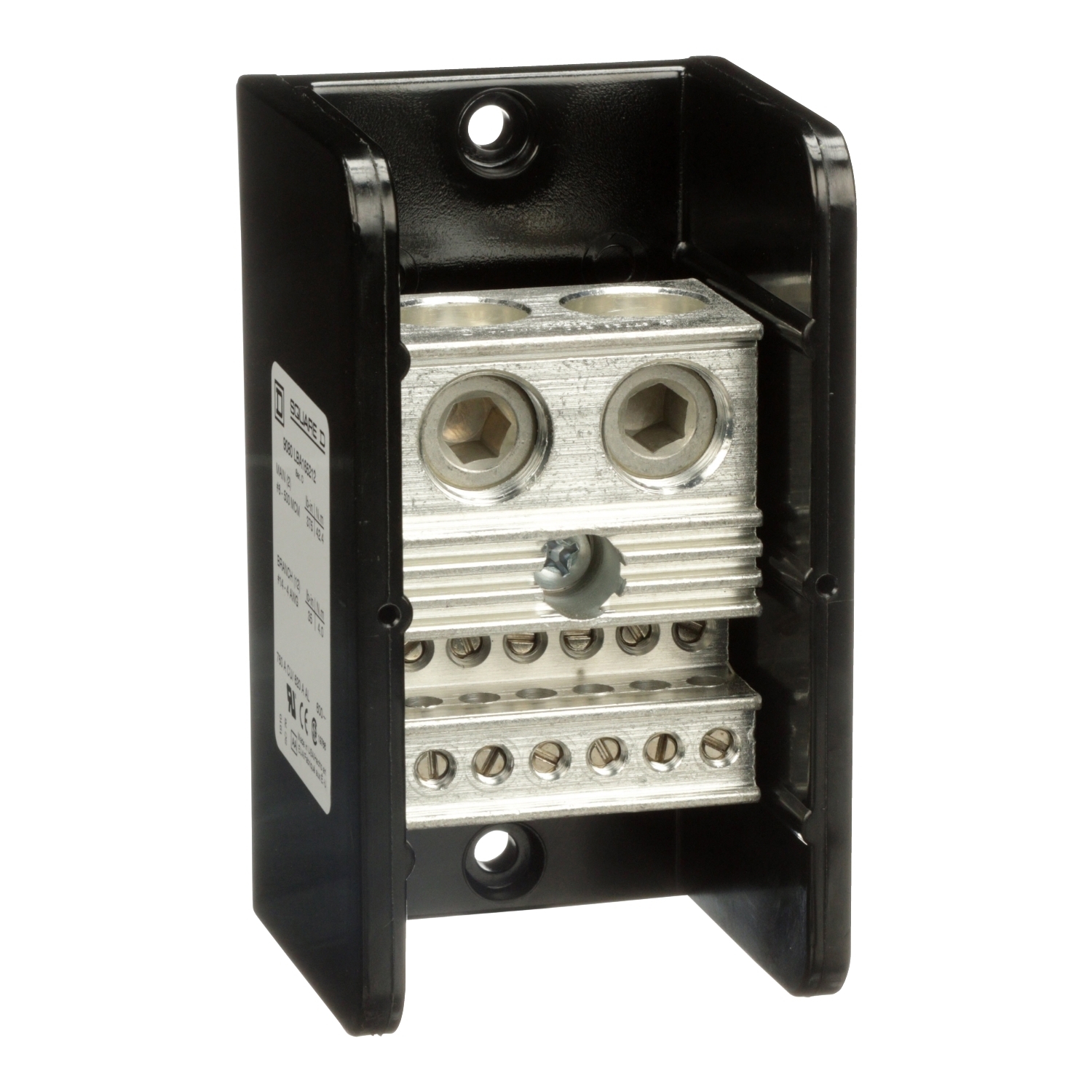

9080LBA165212 Linergy Power Distribution Block, 600 V AC/DC, 620/760 A, 1 Poles, 14 to 4 AWG, 4 AWG to 500 kcmil Wire, Phenolic

MFR:
Schneider Electric
MFR #:
9080LBA165212
UPC:
785901097419
Item #:
31289

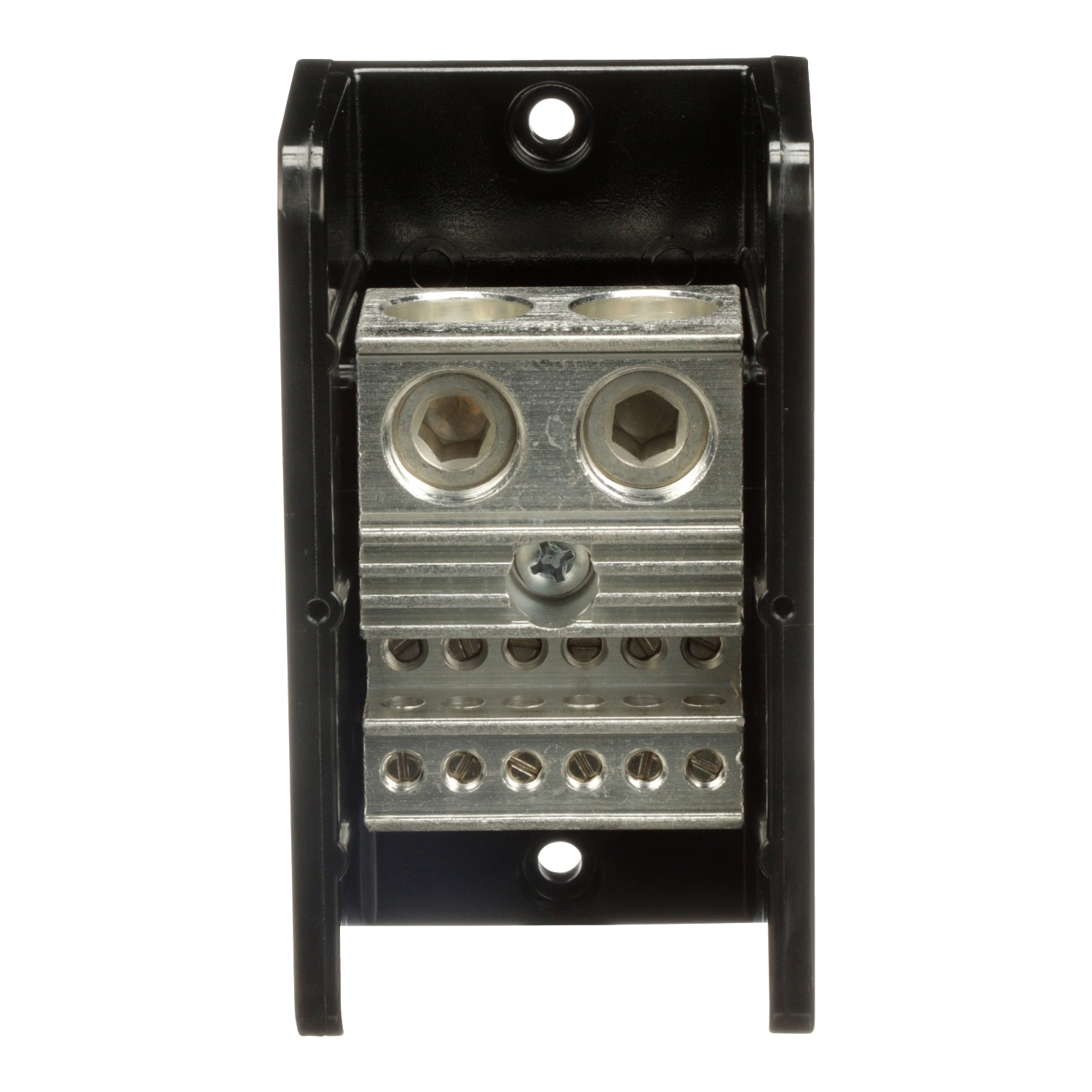

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has two lug openings on the line (main) side and twelve lug openings on the load (branch) side. The line side lug is rated to accept one #6 to 500 kcmil copper or aluminum wire. The load side lugs are rated to accept one #14 to #4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 760 amperes with copper wire and 620 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Manuals & Documentation
Catalog Number 9080LBA165212
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Connection Tin plated aluminium lugs;Load lug 35 lbf.in AWG 14...AWG 4 copper or aluminium;line lug 375 lbf.in AWG 4...500 kcmil copper or aluminium
Material Phenolic: block
Mounting Surface
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372949&lang=en-us
UPC 785901097419
GTIN 00785901097419
Item Type Power Distribution Block;9080LB51
Width 3.17
Width UOM Inch
Height 5.5
Height UOM Inch
Depth 3.13 IN
