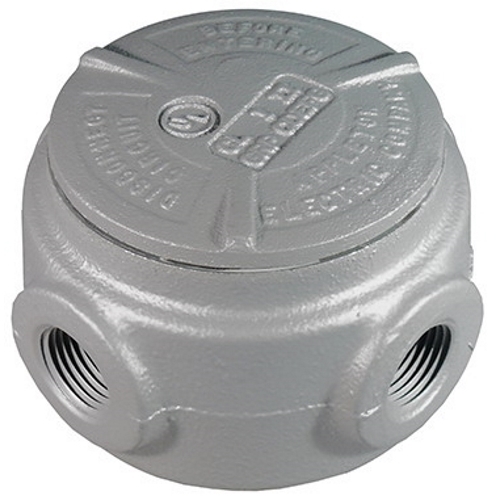

UNILETS Universal Outlet Box, Number Of Outlet: 5, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (5) 3/4 IN GRJS Hub, Cubic Capacity: 7.3 CU-IN, Knockouts: No, Cover Opening: 2.56 IN, Height: 3-3/4 IN, Width: 3-3/4 IN, Depth: 1.94 I

Manuals & Documentation
Catalog Number GRJS75
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit
Cable Entry (5) 3/4 IN GRJS Hub
Cubic Capacity 7.3 CU IN
Knockouts No
Material Malleable Iron
Special Features Explosionproof, dust-ignitionproof, raintight; Furnished with internal ground screw; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with copperfree (4/10 of 1 PCT maximum) aluminum epoxy powder coat cover; General purpose wiring; Universal design with five threaded openings and three close-up plugs; Compact round box for use where space is limited; Serve as mounting means for lighting fixtures when used with hub cover; Internally threaded body with externally threaded cover; Smooth, rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant: ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance
Standard UL 886, UL File Number E10444, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
RoHS Indicator Contact Manufacturer
UPC 781381440905
GTIN 00781381440905
Item Type Universal Outlet Box
Length 5.0000
Length UOM Inch
Width 4.8000
Width UOM Inch
Height 4.1000
Height UOM Inch
Weight 2.510
Weight UOM Pounds
Size 3/4
