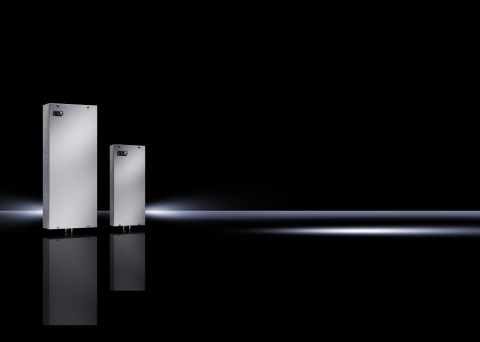

3384510 TopTherm SK Series 1-Phase Cooling Unit, 115 V AC, 8.5/15.3 A, 50/60 Hz, NEMA 12/IP34/54 Enclosure, 3923/4435/5118/5630 Btu
- MFR:
- Rittal
- MFR #:
- 3384510
- UPC:
- 639889000476
- Item #:
- 312228
3384510 TopTherm SK Series 1-Phase Cooling Unit, 115 V AC, 8.5/15.3 A, 50/60 Hz, NEMA 12/IP34/54 Enclosure, 3923/4435/5118/5630 Btu
- MFR #:
- 3384510
- UPC:
- 639889000476
- Item #:
- 312228
TopTherm roof-mounted cooling units Blue e, Total cooling output 0.50 - 4.00 kW, total cooling output L35L35 at 50Hz: 5118, material: Sheet steel, color: RAL 7035, supply includes: Nano-coated condenser, Integral electric condensate evaporation, Fully wired ready for connection (plug-in terminal strip), Drilling template, Assembly parts, description: Energy-efficient Blue e roof-mounted cooling units in output categories from 500 W to 4,000 W, with integral e-Comfort controller, RiNano coating on the condenser and electrical condensate evaporation as standard.
| Catalog Number | 3384510 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Color | RAL 7035 |
| Frequency Rating | 50/60 HZ |
| Phase | 1 |
| Standard | UL Recognized, cUL Recognized, TUV, CSA Certified, DINEN14511 |
| UPC | 639889000476 |
| GTIN | 00639889000476 |
| Item Type | Roof Mounted Cooling Unit |
| Dimensions | 16 (H) x 24 (W) x 19 (D) IN |
| Operating Temperature | +10 to +55 DEG C |
| Voltage Rating | 115 |
