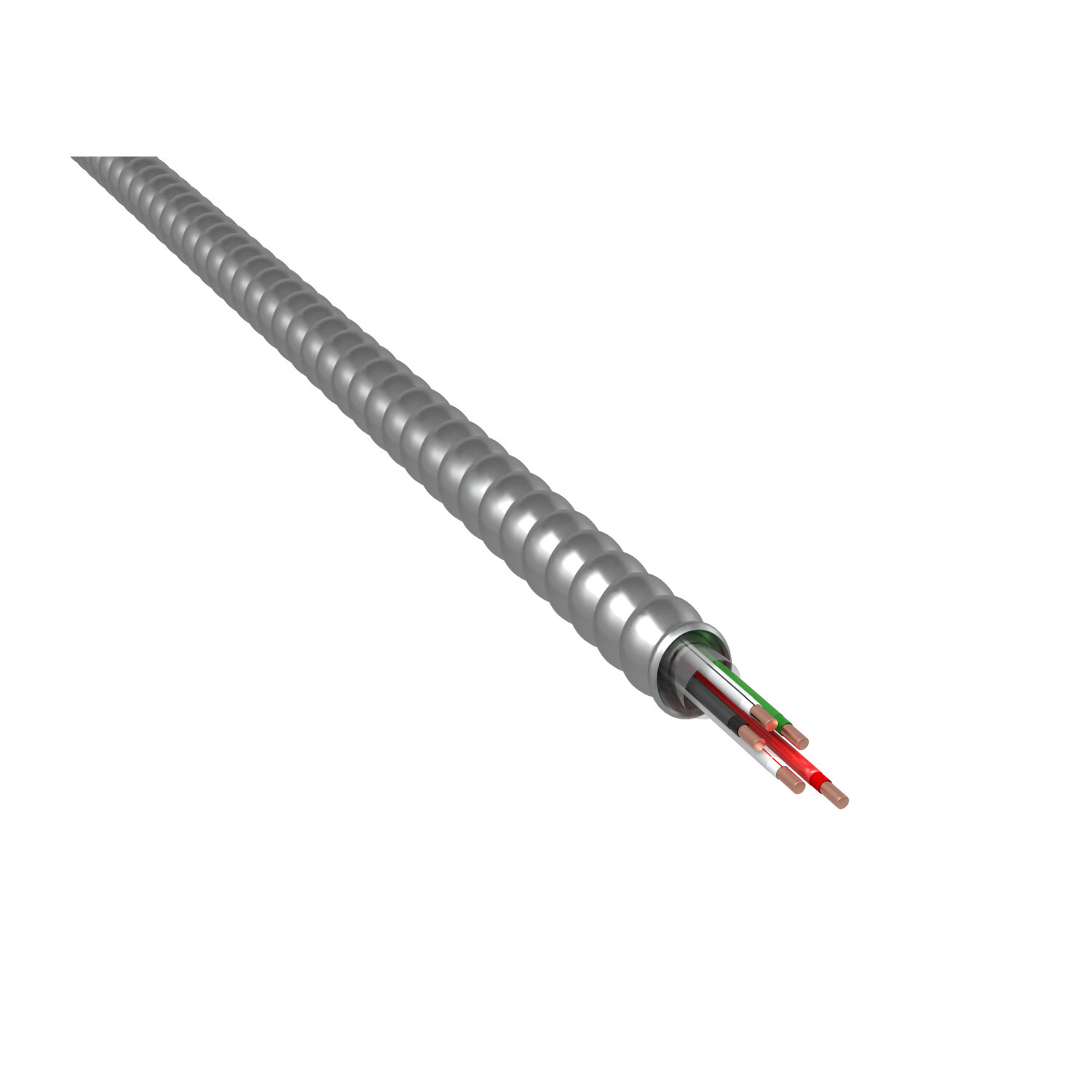

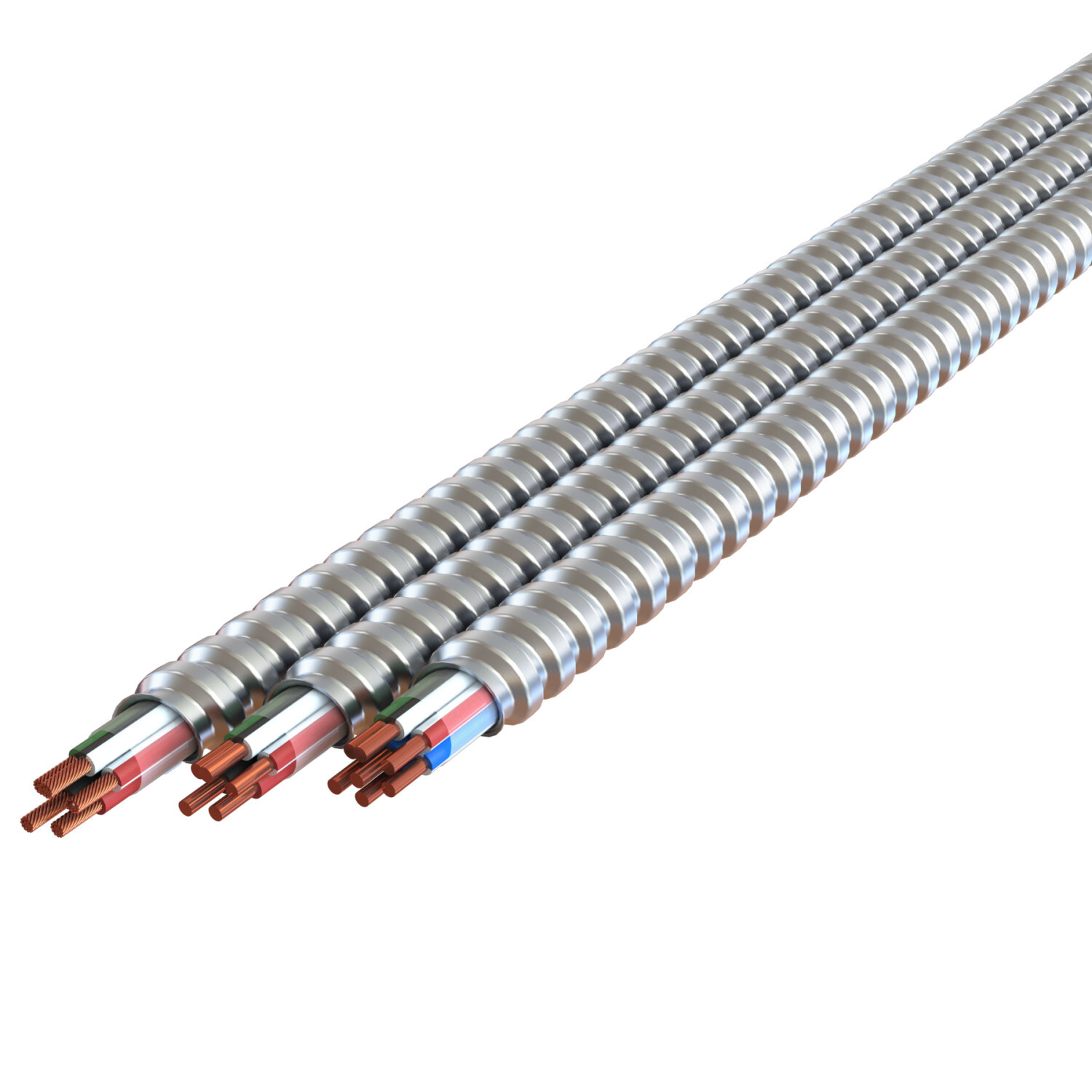

3658-60-700 MC-Plus Lite Type THHN/THWN Neutral Per Phase Cable, 600 V, (5) 12 AWG Stranded Copper Conductor, 1000 ft L
- MFR:
- ATKORE - AFC CABLE
- MFR #:
- 3658-60-700
- UPC:
- 077680348159
- Item #:
- 312161
3658-60-700 MC-Plus Lite Type THHN/THWN Neutral Per Phase Cable, 600 V, (5) 12 AWG Stranded Copper Conductor, 1000 ft L
- MFR #:
- 3658-60-700
- UPC:
- 077680348159
- Item #:
- 312161
Atkore's MC Plus is the modern-day Type MC homerun cable that incorporates a neutral per-phase design ideal for multi-wire branch circuit applications and addresses harmonics distortions in power distribution systems. MC Plus's neutral per-phase design eliminates shared neutrals and the risk of overloading. This design also helps quickly identify faulty circuits, reducing outages. The MC Plus cable offers improved safety and efficiency in electrical systems for a range of applications.
Manuals & Documentation
| Catalog Number | 3658-60-700 |
| Manufacturer | ATKORE - AFC CABLE |
| Brand | AFC Cable Systems |
| Sub Brand | MC Plus |
| Country of Origin | United States |
| Made in USA | Yes |
| Armour | Interlocked Aluminum Strip |
| Bend Radius | 9.195 |
| Color | Plain |
| Conductor Material | Copper |
| Material | Aluminum |
| Number of Conductors | 5 |
| UPC | 077680348159 |
| GTIN | 00077680348159 |
| Length | 1000 |
| Length UOM | Foot |
| Weight | 0.1693 LB/FT |
| Inside Diameter | 0.413 IN |
| Outside Diameter | 0.613 IN |
| Temperature Rating | 194 |
| Trade Size | 12-4 STR |
| Voltage Rating | 600V |
