Appleton

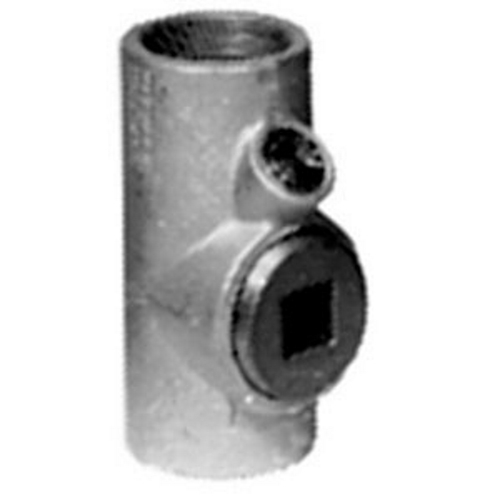

EYSEF200AL Unilets Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting, 2 in, For Use With IMC/Threaded Rigid Metallic Conduit, Almag 35 Aluminum, Epoxy Powder Coated

MFR:
Appleton Electric
MFR #:
EYSEF200AL
UPC:
781381809856
Item #:
311813

UNILETS EY Series 40 PCT Expanded Fill Vertical And Horizontal Conduit Sealing Fitting, Size: 2 IN, Material: Almag 35 Aluminum, Finish: Epoxy Powder Coat, Connection: Female Threaded, Turning Radius: 2.63 IN, Length: 7-1/2 IN, Width: 3-1/2 IN, Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Division 1 And 2 Groups C, D, Class II, Division 1 And 2 Groups E, F, G, Class III, For Use With Threaded Rigid Metal Conduit and IMC

Manuals & Documentation
Catalog Number EYSEF200AL
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Rigid Metal Conduit and IMC
Connection Female Threaded
Finish Epoxy Powder Coat
Material Almag 35 Aluminum
Special Features For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; A
Standard UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Division 1 And 2 Groups C, D, Class II, Division 1 And 2 Groups E, F, G, Class III
RoHS Indicator No
UPC 781381809856
GTIN 00781381809856
Item Type EY Series 40 PCT Expanded Fill Vertical And Horizontal Conduit Sealing Fitting
Length 9.0000
Length UOM Inch
Width 6.0000
Width UOM Inch
Height 5.0000
Height UOM Inch
Weight 3.450
Weight UOM Pounds
Size 2
