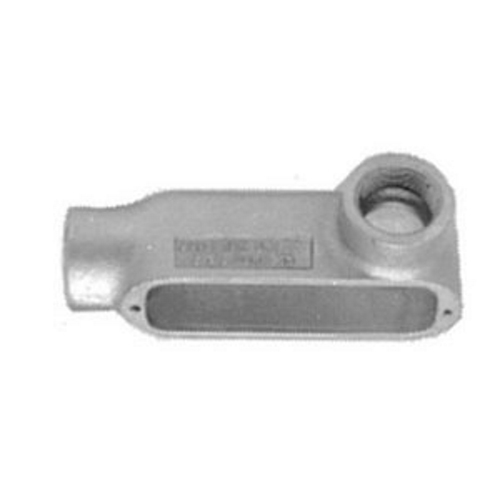

Type LR Conduit Body, 1-1/2 inch, Malleable Iron, Triple-Coat (Zinc Electroplate/Chromate/Epoxy Powder Coat)
- MFR:
- Appleton Electric
- MFR #:
- LR150-M
- UPC:
- 781381482059
- Item #:
- 310922
Type LR Conduit Body, 1-1/2 inch, Malleable Iron, Triple-Coat (Zinc Electroplate/Chromate/Epoxy Powder Coat)
- MFR #:
- LR150-M
- UPC:
- 781381482059
- Item #:
- 310922
Form 35 UNILETS Type LR Conduit Outlet Body, Hub Size: 1-1/2 IN, Form: 35, Length: 8.19 IN, Width: 3-1/2 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Tapered Female Thr
Manuals & Documentation
| Catalog Number | LR150-M |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| Connection | Tapered Female Threaded |
| Finish | Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) |
| Form | 35 |
| Hub Size | 1-1/2 IN |
| Material | Malleable Iron |
| Special Features | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; High tensile strength and ductility, high corrosion resistance, high impact and shock resistance; Sizes with flat-back design ideal where fitting is mounted flat against surface; Wiring capacity: 35.5 CU-IN as per NEC 314.16(A) |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| UPC | 781381482059 |
| GTIN | 00781381482059 |
| Item Type | Type LR Conduit Outlet Body |
| Length | 8.19 |
| Length UOM | Inch |
| Width | 3-1/2 |
| Width UOM | Inch |
