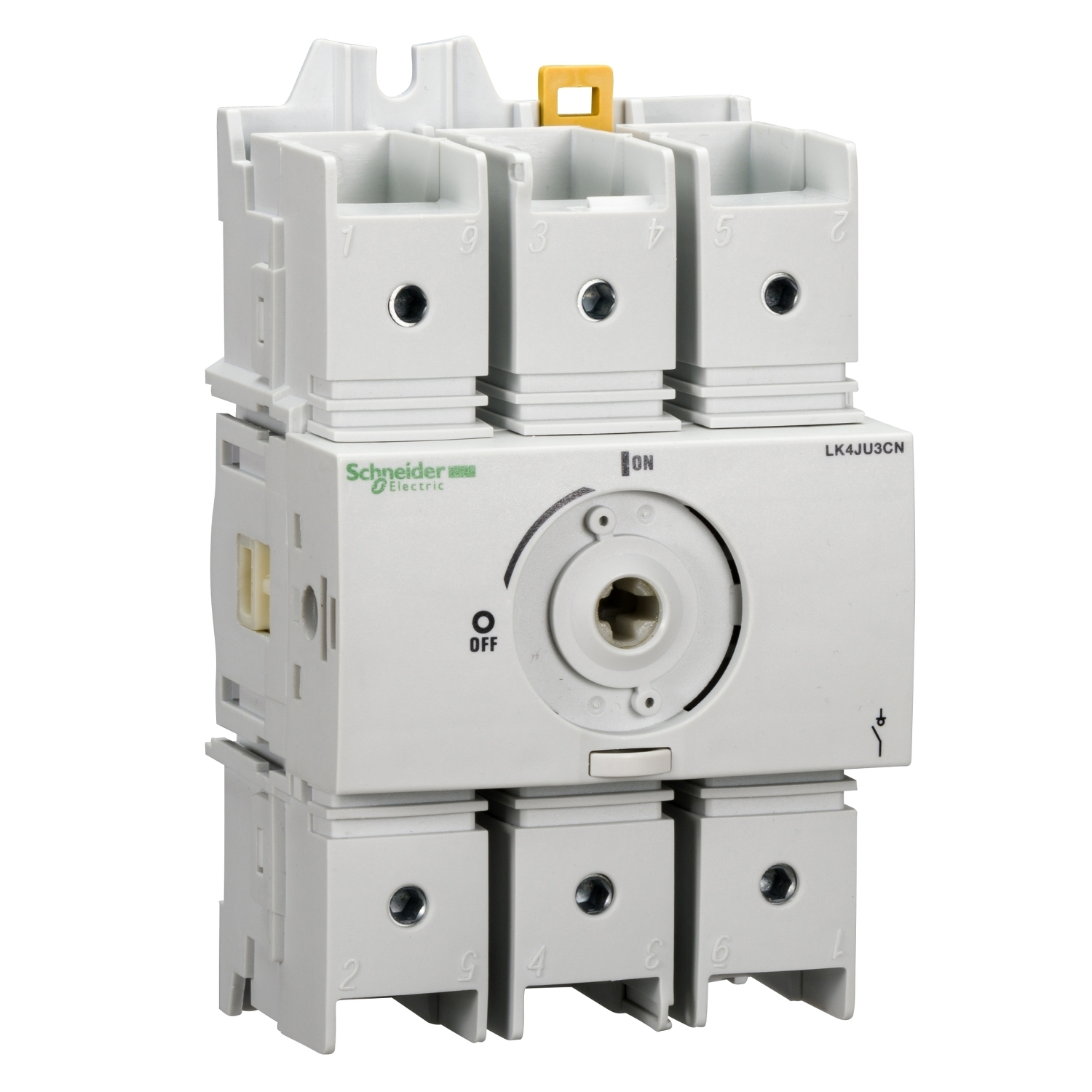

LK4JU3CN LK4, 750 V, 100 A, 20 hp 240 V 53 A AC, 50 hp 480 V 64 A AC, 50 hp 600 V 51 A AC, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LK4JU3CN
- Item #:
- 310170
LK4JU3CN LK4, 750 V, 100 A, 20 hp 240 V 53 A AC, 50 hp 480 V 64 A AC, 50 hp 600 V 51 A AC, 3 Poles
- MFR #:
- LK4JU3CN
- Item #:
- 310170
TeSys LK4 non fusible disconnect switches are compact or standard sized switches that break and make power circuits, on and off loads, and provide safety isolation. This 3 pole non fusible disconnect switch has a 100 ampere rating. It can be used in applications up to 600 VAC. This nonfusible disconnect switch has a 20HP rating at 240VAC, a 50HP rating at 480VAC, and a 50HP rating at 600VAC. This disconnect switch is operated with a rotary handle. This 100A disconnect switch has a 100kA short circuit current rating (SCCR) when used with Type J fuses. Each terminal has a lug that will accept one 4 AWG to 2/0 AWG copper or aluminum wire. TeSys LK his motor circuit protector is UL Listed and CSA certified.
Manuals & Documentation
| Catalog Number | LK4JU3CN |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | China |
| Made in USA | No |
| Actuator | Rotary handle |
| Connection | Lugs-ring terminals 1 4-4 mm² |
| Mounting | Mounting Plate |
| Number of Poles | 3 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402915732&lang=en-us |
| GTIN | 03606480510434 |
| Item Type | Non-fusible disconnect switch;Disconnect Switch |
