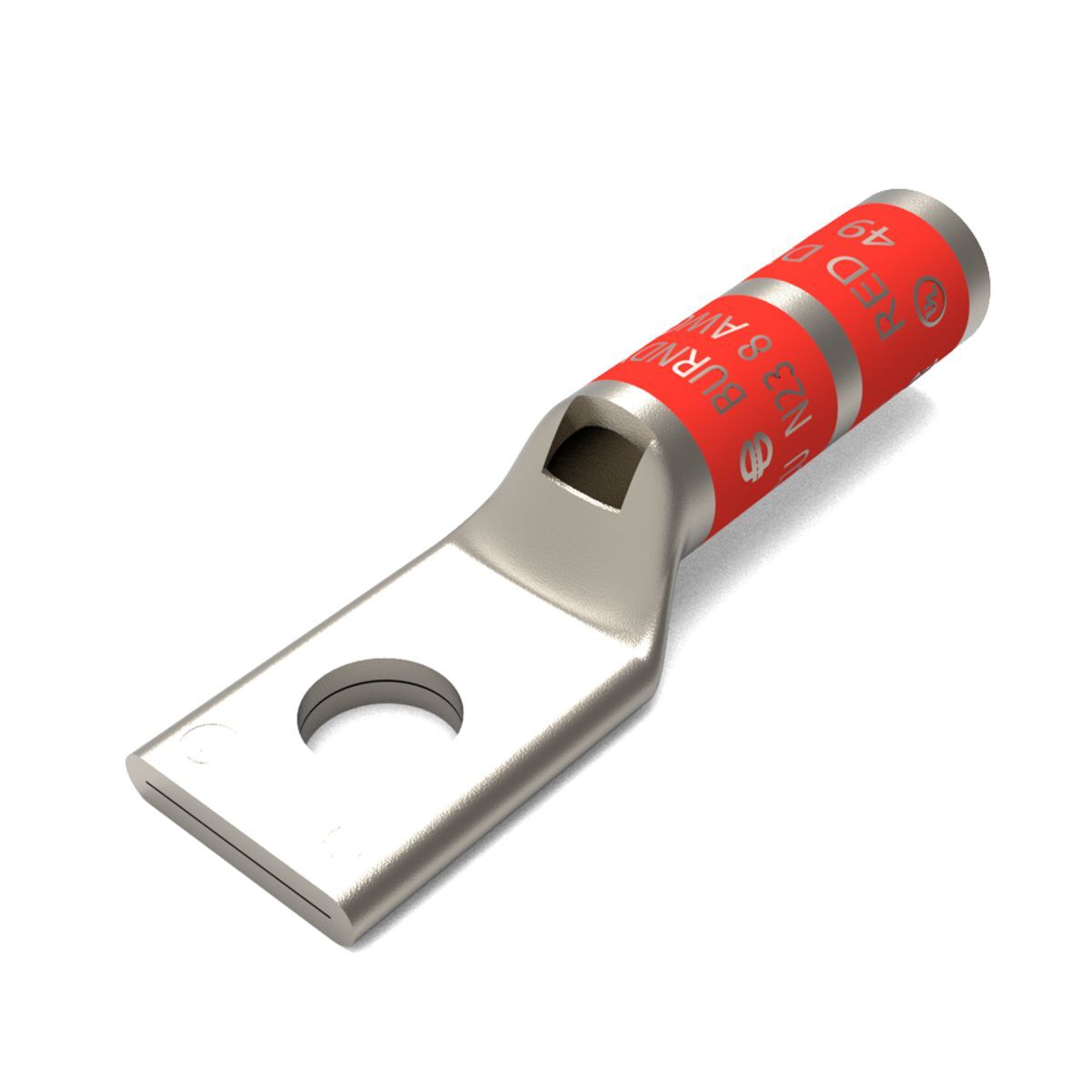

YAZ8CTC38 1-Hole Uninsulated Compression Lug With Inspection Window, 8 AWG Stranded Copper Conductor, Die Code: 49, 3/8 in Stud, Tin Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YAZ8CTC38
- UPC:
- 781810239339
- Item #:
- 309641
YAZ8CTC38 1-Hole Uninsulated Compression Lug With Inspection Window, 8 AWG Stranded Copper Conductor, Die Code: 49, 3/8 in Stud, Tin Plated Copper
- MFR #:
- YAZ8CTC38
- UPC:
- 781810239339
- Item #:
- 309641
Manuals & Documentation
| Catalog Number | YAZ8CTC38 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Tongue Angle: Straight, Finish: Electro-Tin Plated, Wire Strip Length: 7/8 IN, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W8CVT, W8CRT, X8CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W8CVT, W8CRT, X8CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U8CRT Die, (1), Y46 Tool, U8CRT Die With PUADP-1 Adapter, (1), Color Code: Red, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Y1MRTC, MY29-3, MY29-11, MRC840 Tool, (2), Die Index: 49 |
| Standard | UL 486A-486B |
| UPC | 781810239339 |
| GTIN | 00781810239339 |
| Item Type | Long Barrel, Skive, Tin Plated |
| Voltage Rating | 35 |
