Telemecanique

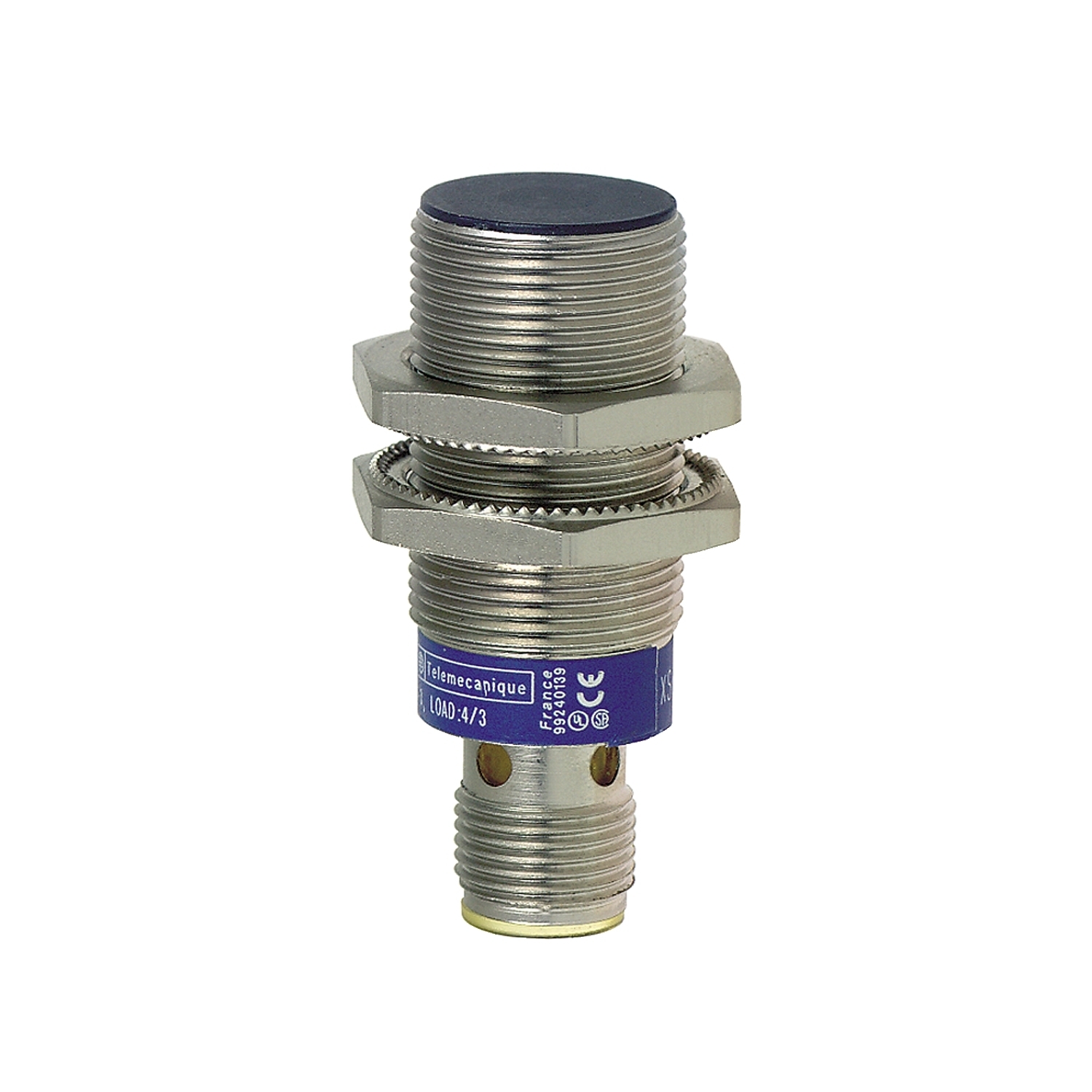

XS1N18PA349D OsiSense XS Fixed Cylindrical Proximity Sensor, Inductive, PNP Output, 1NO Contact, 10 to 36/12 to 24 V DC

MFR:
Telemecanique Sensors
MFR #:
XS1N18PA349D
UPC:
785901911579
Item #:
308871

This cylindrical diameter 18 mm threaded M18 x 01 flush mountable sensor is part of XS range, an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected, thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products). It features a nickel plated brass case and a M12 connector. It has a sensing distance of 10mm, three-wire, DC supply, 12V to 24V, NO function, PNP solid state output.

Manuals & Documentation
Catalog Number XS1N18PA349D
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application General purpose;-
Connection Male connector M12, 4 pins
Connector MALE CONNECTOR M12, 4 PINS
Control Output 1 NO, PNP
Enclosure Nickel Plated Brass
Indicator OUTPUT STATE 1 LED YELLOW)
Material Metal
Mounting Flush
Output PNP;1 NO;Discrete;DC
Sensing Range 10 MM,> 0.31...0.59 IN (> 8...15 MM)
Sensor 18 MM,50 MM,INDUCTIVE PROXIMITY SENSOR
Special Features Output state 1 LED yellow);Frontal
Standard IP67 conforming to IEC 60529;IP69K conforming to DIN 40050;CE
Supply Voltage 12...24 V DC REVERSE POLARITY PROTECTION
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=867392&lang=en-us
UPC 785901911579
GTIN 03389110911572
Item Type Inductive proximity sensor
Operating Temperature -25-50 A Degrees C
