BURNDY

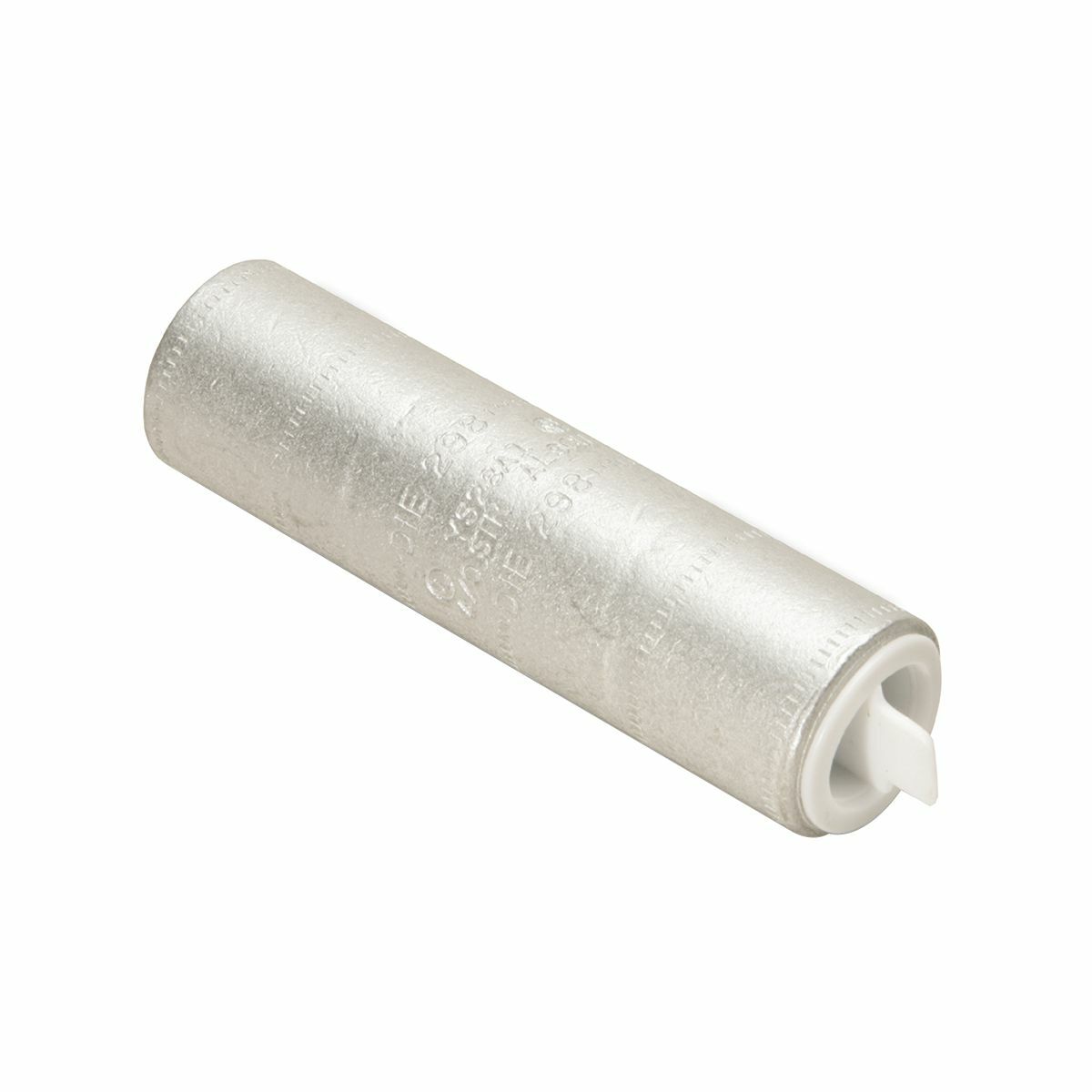

YS27A1 Type YS-A Standard Barrel Compression Butt Splice, 3/0 AWG Conductor, 2.88 in L, Long Barrel, Aluminum, Ruby

MFR:
Burndy, a Hubbell affiliate
MFR #:
YS27A1
UPC:
781810757208
Item #:
308808
Manuals & Documentation
Catalog Number YS27A1
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application Wire Splice
Finish Tin-Plated
Material ALUMINUM
Special Features Features: Manufactured From High-Conductivity Wrought Aluminum With Heavy Duty Wall Thickness: Provides High-Conductivity/Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Corrosion Resistance, Internally Bevelled Barrel: Provides Easy Cable Entry, Solid Center Stop And Prefilled With PENETROX Oxide Inhibiting Compound: Provides Stop For Proper Conductor Insertion And An Aid In Forcing ThePENETROX Between The Individual Wire Strands, Color-Coded End Caps: Provides Easy Wire Size And Die Code Identification Plus Prevents Foreign Materials From Entering And Contaminating The Connector Prior To Usage, Connector Is Clearly Marked With Wire Size, Die Index And The Proper Number And Location Of Crimps: Provides Easy Identification And Tooling Recommendation, Proper Compression Forms A Homogeneous Mass Resulting In An Excellent Electrical Connection, Designed To Accommodate Conductors From 12 Stranded Through 1,000 KCMIL In Standard And Heavy Duty Applications, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750, Y46, Y60BHU Tool, U27ART Die, (2), Die Index: 467 Element A, Color Code: Ruby, Dieless Tools (number Of Crimps): Mechanical HYTOOL: MY29-3, MRC840AL Tool, (2), Hydraulic HYPRESS: Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Wire Strip Length: 1-1/2 IN
Standard UL 486A-486B
UPC 781810757208
GTIN 00781810757208
Item Type YS-A, Standard Barrel
Temperature Rating 194
Voltage Rating 35
Cross Reference Products ASC3/0T, ASP30, 60542
