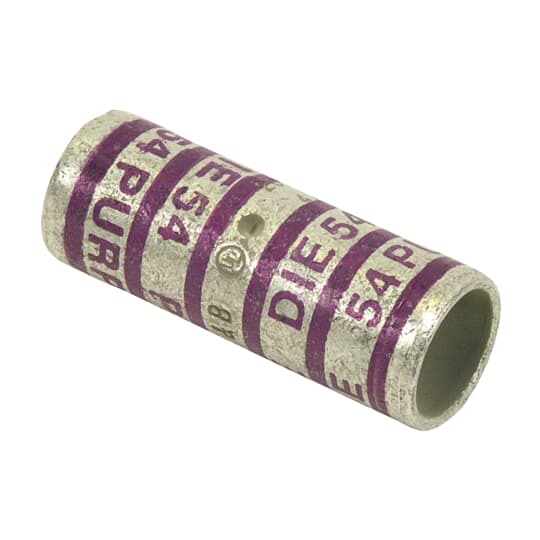

54512 Color-Keyed 2-Way Standard Barrel Splice Connector, 4/0 AWG Copper Conductor, Die Code: 54, 1.88 in L, Copper
- MFR:
- ABB - Installation Products
- MFR #:
- 54512
- UPC:
- 786210545127
- Item #:
- 30876
54512 Color-Keyed 2-Way Standard Barrel Splice Connector, 4/0 AWG Copper Conductor, Die Code: 54, 1.88 in L, Copper
- MFR #:
- 54512
- UPC:
- 786210545127
- Item #:
- 30876
Manuals & Documentation
| Catalog Number | 54512 |
| Manufacturer | ABB - Installation Products |
| Brand | Color-Keyed |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Applications certified to 600 V and recommended up to 35 kV¥ |
| Color | Purple |
| Conductor Range | 4/0-4/0 AWG |
| Finish | Tin Plated |
| Material | Copper |
| Special Features | Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost |
| Standard | UL E9809 |
| UPC | 786210545127 |
| GTIN | 00786210545127 |
| Item Type | Splice |
| Voltage Rating | 600 V |
| Cross Reference Products | 3M 10008|ABBInstall 54512|ABBInstall CSP40|ABBInstall S989082|ABBInstall SC40|Amprobe 324460|Amprobe 324461|Anderson VHSS40|Burndy HCSS28|Burndy YGHS28 |
