Telemecanique

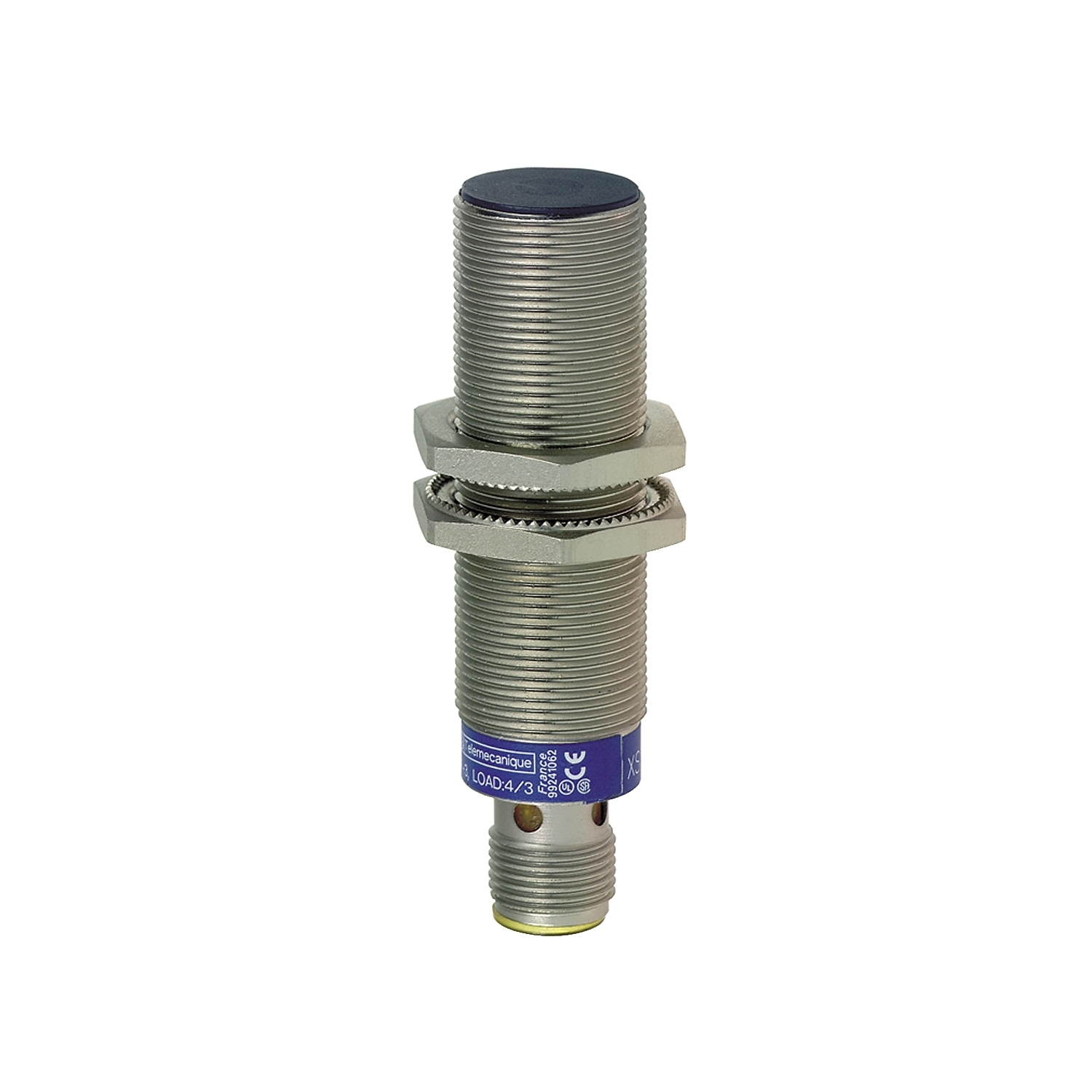

XS1M18KP340D OsiSense XS Fixed Cylindrical Proximity Sensor, Inductive, NPN/PNP Output, 1NO-1NC Contact, 10 to 36/12 to 24 V DC

MFR:
Telemecanique Sensors
MFR #:
XS1M18KP340D
UPC:
785901903987
Item #:
308530

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, flush mountable sensor. Diameter 18mm, threaded M18 x 1. It features a nickel plated brass case and a M12 connector. It has a sensing distance of 5mm Four-wire, DC supply, 12V to 24V, solid state PNP + NPN, NO or NC programmable output.

Manuals & Documentation
Catalog Number XS1M18KP340D
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application -
Connector Male connector M12, 4 pins
Control Output 1 NO OR 1 NC (PROGRAMMABLE)
Enclosure Nickel Plated Brass
Indicator Output state 1 LED yellow)
Material Metal
Mounting Flush
Sensing Range 5 MM,> 0.16...0.31 IN (> 4...8 MM)
Sensor 18 MM,72 MM,INDUCTIVE PROXIMITY SENSOR
Special Features METAL
Standard IP67 conforming to IEC 60529;CE
Supply Voltage 12...24 V DC reverse polarity protection
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=866600&lang=en-us
UPC 785901903987
GTIN 03389110515077
Item Type Inductive proximity sensor;Cylindrical M18
Operating Temperature -25-70 A Degrees C
