Appleton

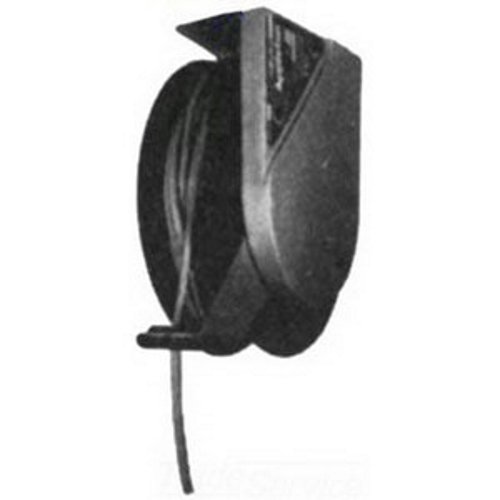

RL5340 RL5000 Grounded Portable Cord Reel With Locking Ratchet, 125 V AC, 13 A, 50 ft L Cord, 14 to 13 AWG Conductor

MFR:
Appleton Electric
MFR #:
RL5340
UPC:
781381672719
Item #:
30826

Portable Grounded Cord Reel With Locking Ratchet, Cable Type: SJOOW-A, Cable Active Length: 50 FT, Voltage Rating: 125 VAC, Reel Frame: Steel, Amperage Rating: 13 AMP, Cord Size: 14 - 3 AWG, Finish: Gray Hammer Epoxy/Polyester Powder Coat,

Manuals & Documentation
Catalog Number RL5340
Manufacturer Appleton Electric
Brand Appleton
Country of Origin United States
Made in USA Yes
Application For Industrial/MRO, Warehouse, Loading Docks, Commercial Building, Oem Machinery And Equipment, Osha Regulated Service Garages, Muffler And Oil Change Shops, Institutions And State Agencies
Special Features All steel construction provides added strength for rugged commercial/industrial dry location service; Compact design offers long cable capacity in a small unit, advantageous to the OEM manufacturers; Overhung drum design offers simple field cable tension adjustment without cable disconnection; Adjustable cable guide provides for various reel mounting positions; Cable locking ratchet (included as standard) holds cable at desired length; Ratchet can be disengaged when constant cable tension is desired; Reels having handlamp without switch in the handle are operated by an internal automatic switch located inside the reel; Power to the handlamp is actuated when cable is pulled out at any length and ratchet is locked; Power is automatically turned off when all cable is retracted back into the reel; No handlamp or accessories
Standard UL File Number E4961, UL 355, CSA Number LR3060, NEC/CSA
UPC 781381672719
GTIN 00781381672719
Item Type Portable Grounded Cord Reel With Locking Ratchet
Cable Type SJOOW-A
Voltage Rating 125
