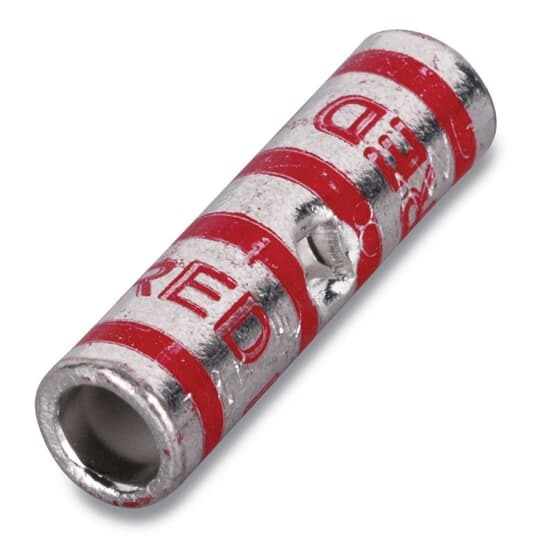

54511 Color-Keyed 2-Way Standard Barrel Splice Connector, 3/0 AWG Copper Conductor, Die Code: 50, 1-3/4 in L, Copper
- MFR:
- ABB - Installation Products
- MFR #:
- 54511
- UPC:
- 786210545110
- Item #:
- 30790
54511 Color-Keyed 2-Way Standard Barrel Splice Connector, 3/0 AWG Copper Conductor, Die Code: 50, 1-3/4 in L, Copper
- MFR #:
- 54511
- UPC:
- 786210545110
- Item #:
- 30790
Manuals & Documentation
| Catalog Number | 54511 |
| Manufacturer | ABB - Installation Products |
| Brand | Color-Keyed |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Applications certified to 600 V and recommended up to 35 kV¥ |
| Color | Orange |
| Finish | Tin-Plated |
| Material | Copper |
| Special Features | Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost |
| Standard | UL E9809 |
| UPC | 786210545110 |
| GTIN | 00786210545110 |
| Item Type | Splice |
| Voltage Rating | 600 V |
| Cross Reference Products | 3M 10007|ABBInstall 54511|ABBInstall 54511PFPH|ABBInstall CSP30|ABBInstall SC30|Anderson VHSS30|Burndy HCSS27|Burndy YS27-L|Burndy YS27-L-BOX|Dossert DPCS-17 |
