SQUARE D

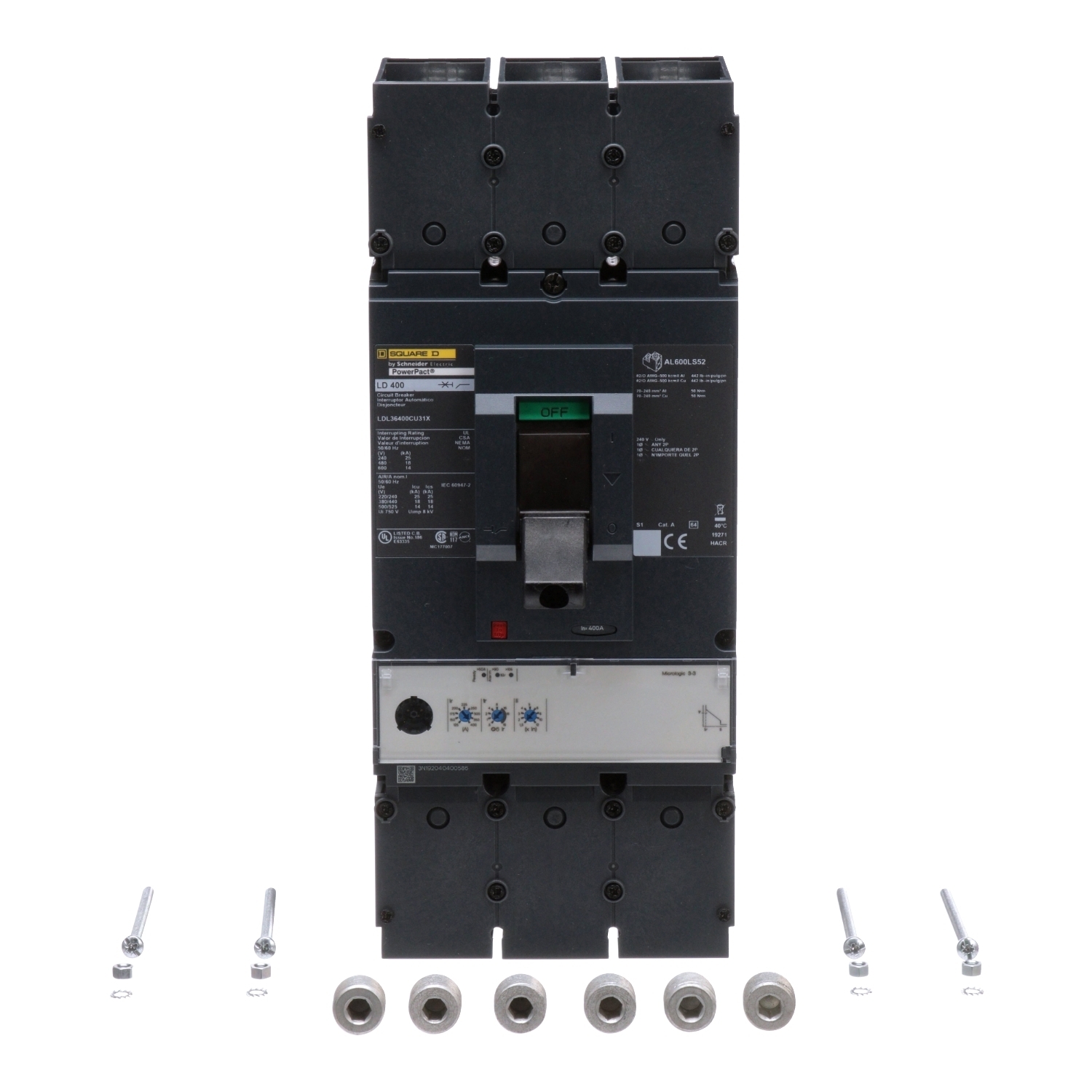

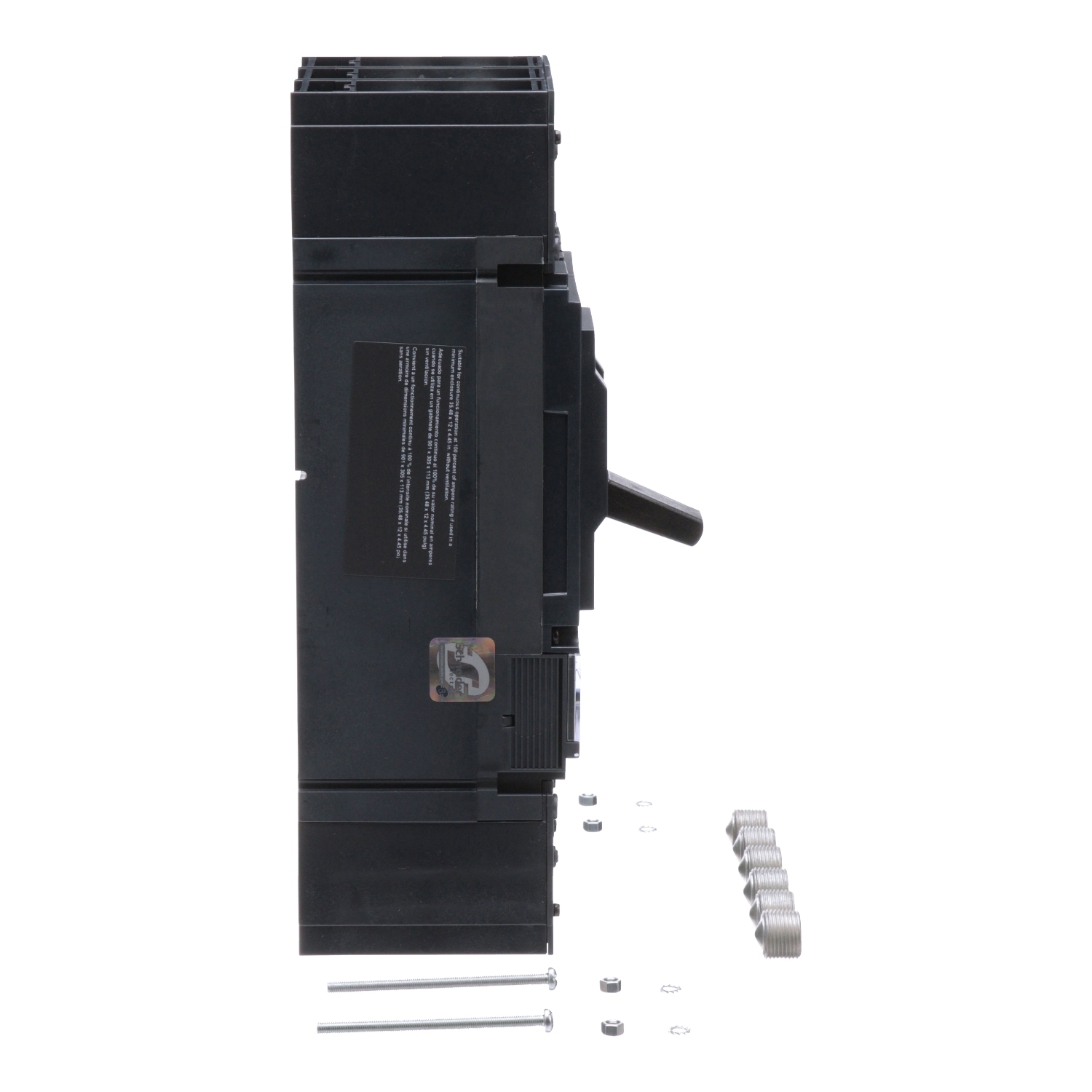

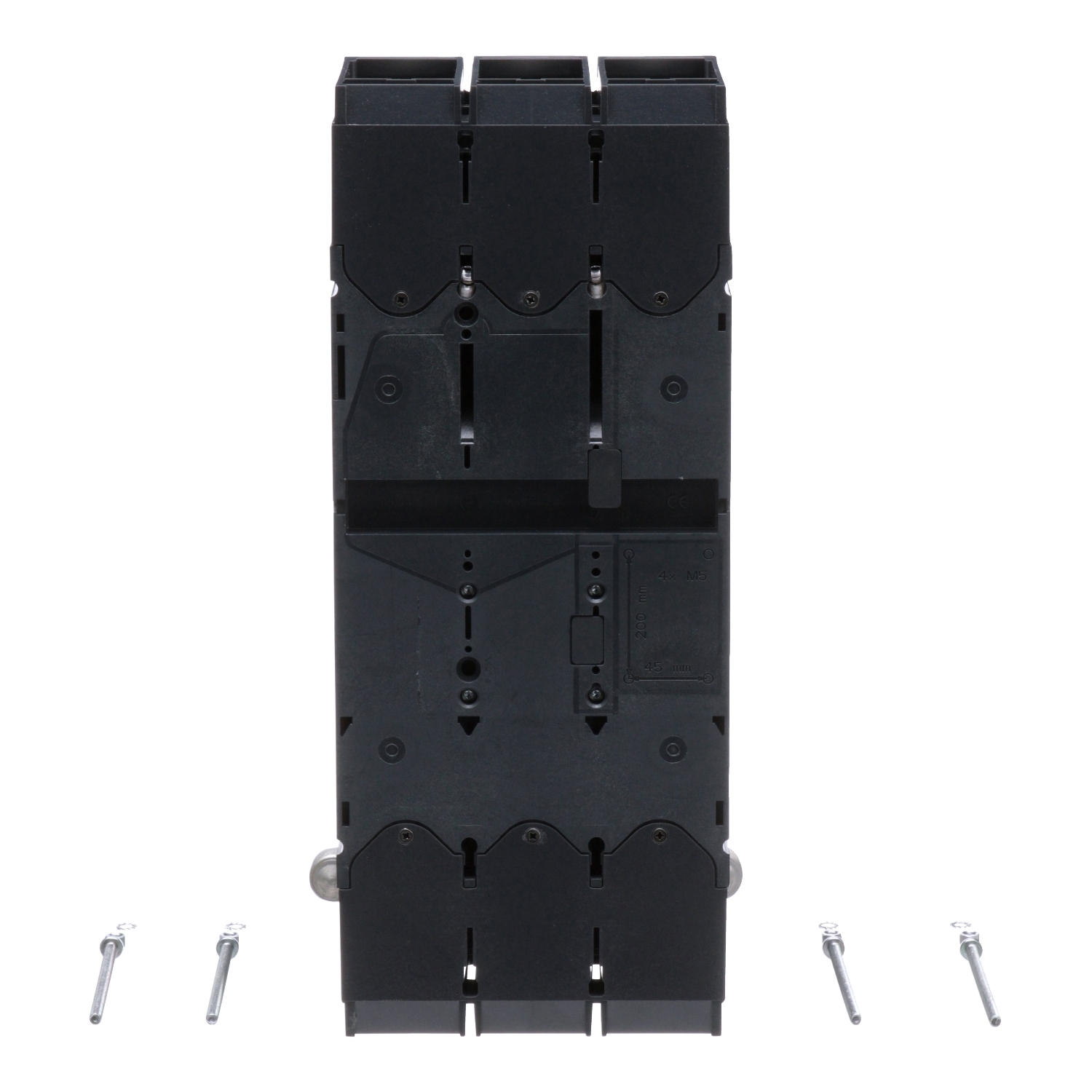

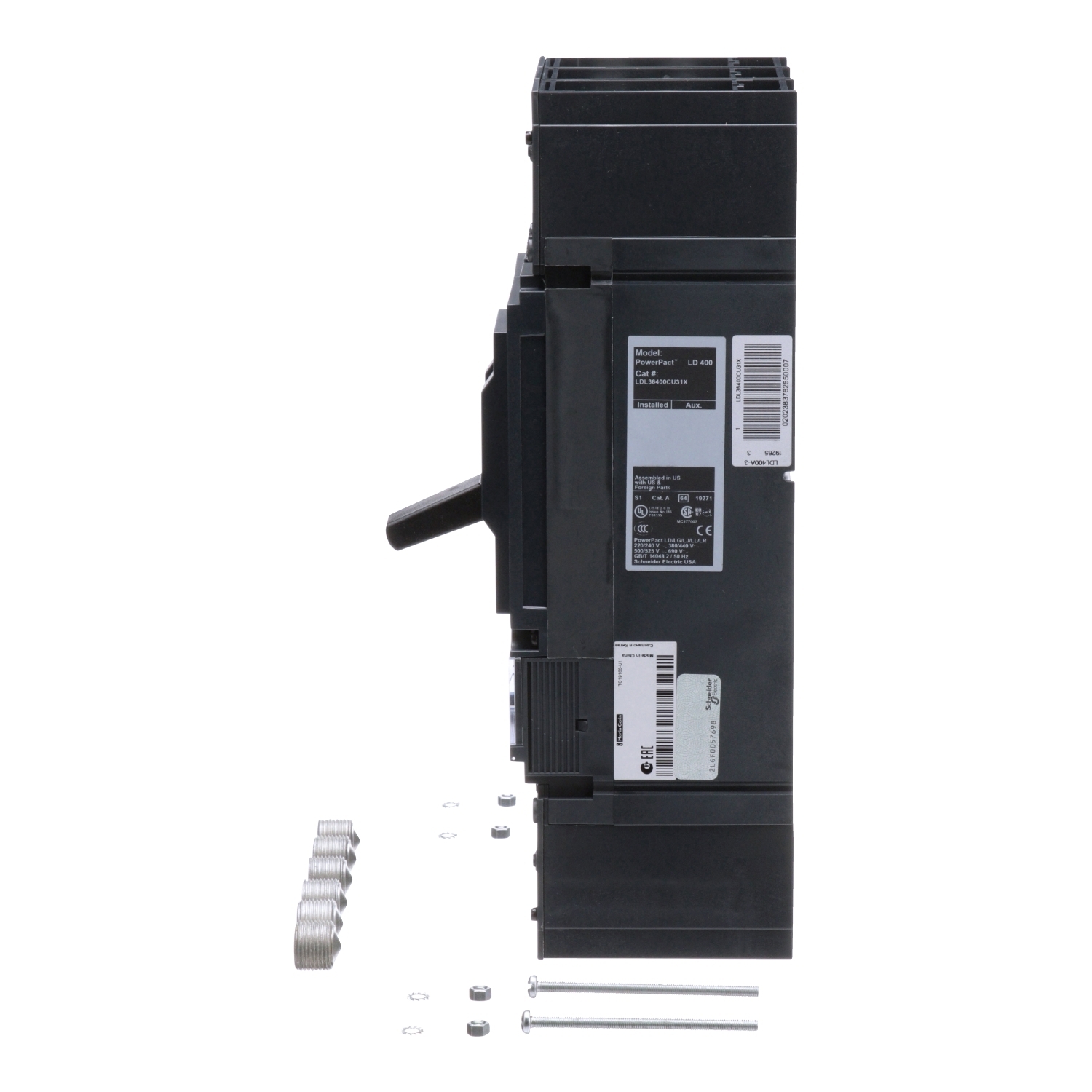

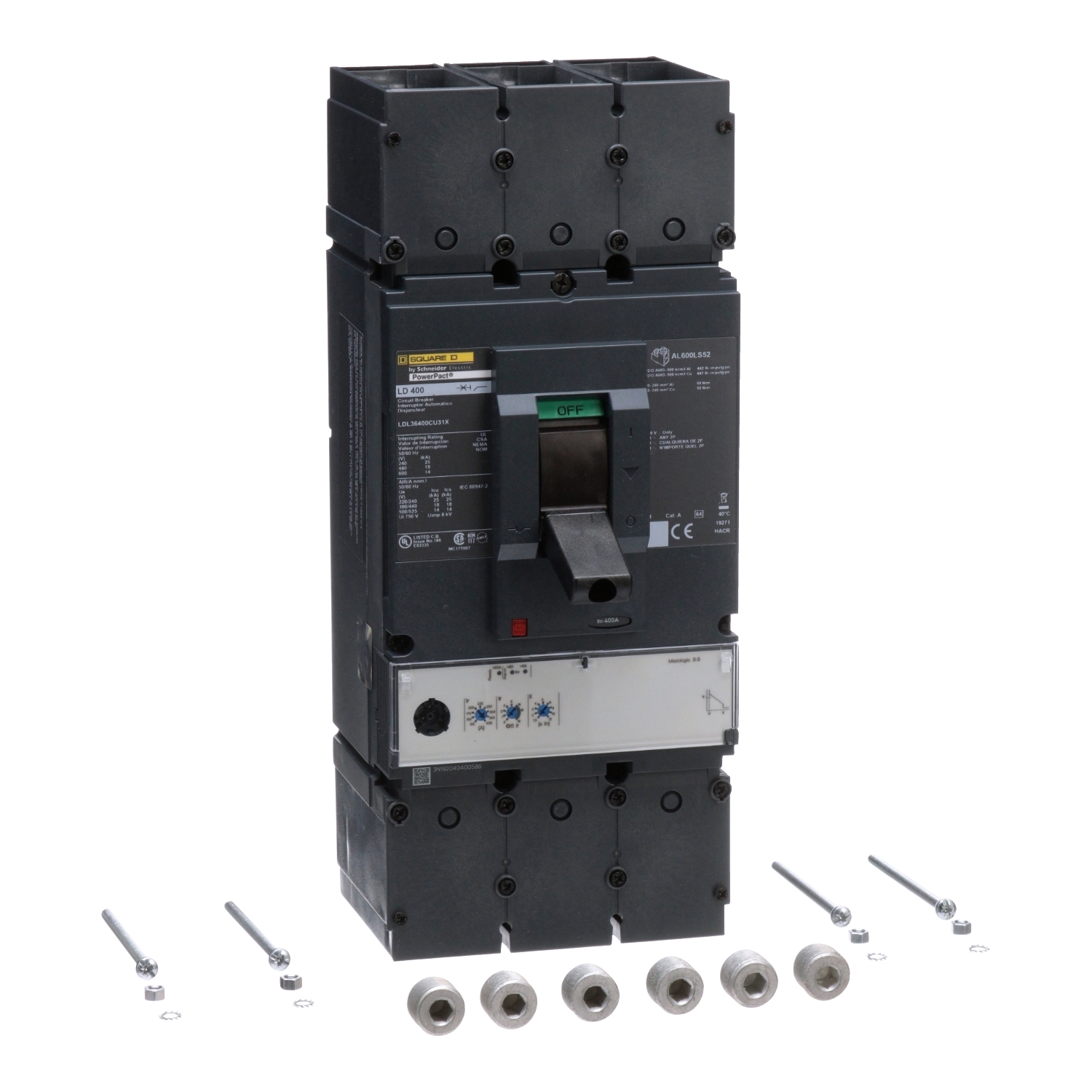

LDL36400CU31X PowerPact Type LDL Molded Case Circuit Breaker, 600 V AC, 400 A, 14 kA Interrupt, 3 Poles, Electronic Trip

MFR:
Schneider Electric
MFR #:
LDL36400CU31X
UPC:
785901626664
Item #:
307307

PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 14kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 100%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals & Documentation
Catalog Number LDL36400CU31X
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Actuator Toggle
Application Distribution;HACR rated
Color Black
Connection Lugs, line;lugs, load; 2 x AWG 2/0...500 kcmil aluminium/copper
Frequency Rating 50/60 Hz
Number of Poles 3
Special Features Modbus;Ethernet
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268667586&lang=en-us
UPC 785901626664
GTIN 00785901626664
Item Type Circuit breaker
Trip Type Electronic, standard, MicroLogic 3.3, LI
