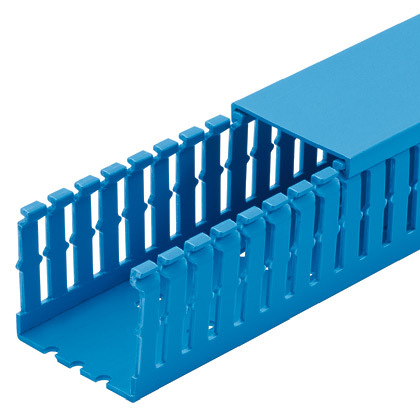

F2X4IB6 Panduct Type F Base Wiring Duct, 0.2 in Narrow Slot Slot, 2-1/4 in W x 4 in D, PVC
- MFR:
- Panduit
- MFR #:
- F2X4IB6
- UPC:
- 074983018017
- Item #:
- 30635
F2X4IB6 Panduct Type F Base Wiring Duct, 0.2 in Narrow Slot Slot, 2-1/4 in W x 4 in D, PVC
- MFR #:
- F2X4IB6
- UPC:
- 074983018017
- Item #:
- 30635
The F2X4IB6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122F (50C). Mounting holes provided. Lead-free PVC. 2 x 4 (50.8 mm x 101.6 mm) and 6' (1.83 m) long. Cover sold separately. Color Intrinsic Blue.
Manuals & Documentation
| Catalog Number | F2X4IB6 |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Color | Intrinsic Blue |
| Connection | Mounting Holes |
| Material | PVC |
| Slot Pitch | 0.2 IN |
| Slot Style | Slotted |
| Special Features | Narrow Slotted |
| Standard | RoHS Compliant, UL Recognized, CE Compliant |
| UPC | 074983018017 |
| GTIN | 00074983018017 |
| Item Type | Base Wiring Duct |
| Width | 2.25 |
| Width UOM | Inch |
| Size | 2.00 x 4.00 |
| Thickness | 0.11 IN |
