SQUARE D

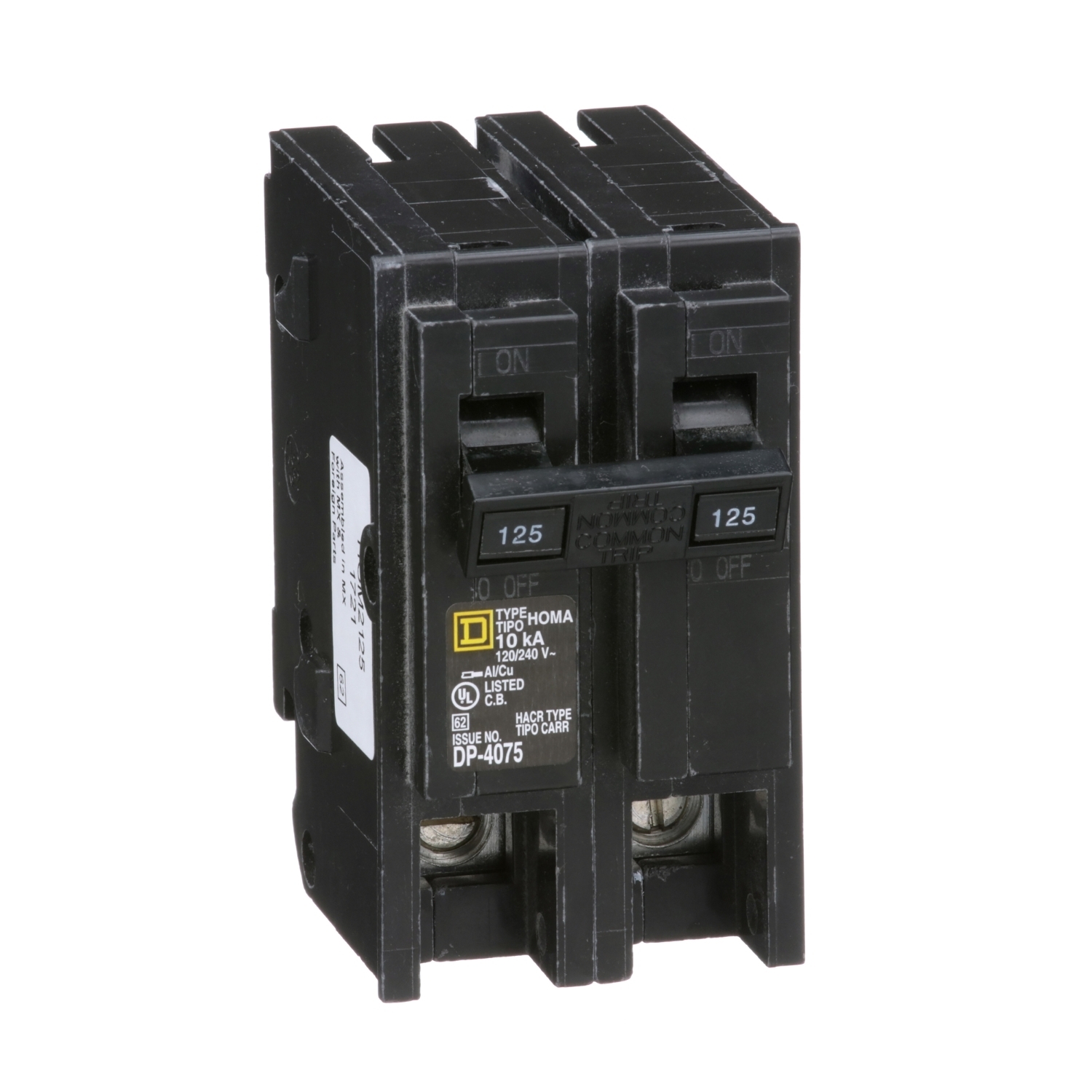

HOM2125 Homeline Miniature Circuit Breaker, 125 Amp, 2 Pole, 120/240V

MFR:
Schneider Electric
MFR #:
HOM2125
UPC:
785901065791
Item #:
30370

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 125A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Manuals & Documentation
Catalog Number HOM2125
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:Lifetime
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398057&lang=en-us
UPC 785901065791
GTIN 00785901065791
Width 2.000000000000000
Width UOM Inch
Height 3.130000000000000
Height UOM Inch
Depth 2.98 IN
