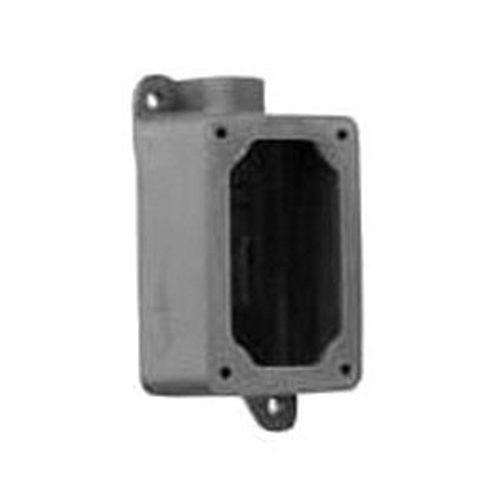

1-Gang Explosion-Proof Box, 1 inch, Malleable Iron, Lug Mount
- MFR:
- Appleton Electric
- MFR #:
- EFDC110-NL-Q
- UPC:
- 781381106115
- Item #:
- 303372
1-Gang Explosion-Proof Box, 1 inch, Malleable Iron, Lug Mount
- MFR #:
- EFDC110-NL-Q
- UPC:
- 781381106115
- Item #:
- 303372
1-Gang Feed Thru Mounting Body, Number Of Outlet: 2, Material: Malleable Iron, Size: 1 IN, Cable Entry: (2) 1 IN Hub, Mounting: Lugs, Width: 3 IN, Height: 6.38 IN, Enclosure: NEMA 7CD, 9EFG, Standard: UL 508, 698, 1203, UL File Number E10449, E81751, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, For U-Line 20 AMP Receptacles, EDS Series Factory Sealed Manual Motor Starters, CPS 20 AMP Receptacles, EFD/EFDB and EDS Series Control Stations
Manuals & Documentation
| Catalog Number | EFDC110-NL-Q |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For U-Line 20 AMP Receptacles, EDS Series Factory Sealed Manual Motor Starters, CPS 20 AMP Receptacles, EFD/EFDB and EDS Series Control Stations |
| Material | Malleable Iron |
| Mounting | Lugs |
| Special Features | Furnished with Internal Ground Screw; EFD/EFDB and EDS factory sealed control stations confine arcing of device within the enclosure, preventing ignition of ignitable atmospheres during control operation of motors and other equipment; Used in classified areas where flammable vapors, gases or highly combustible dusts are present; For installation in chemical and petrochemical plants, refineries and other process industries |
| Standard | UL 508, 698, 1203, UL File Number E10449, E81751, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III |
| UPC | 781381106115 |
| GTIN | 00781381106115 |
| Item Type | 1-Gang Feed Thru Mounting Body |
