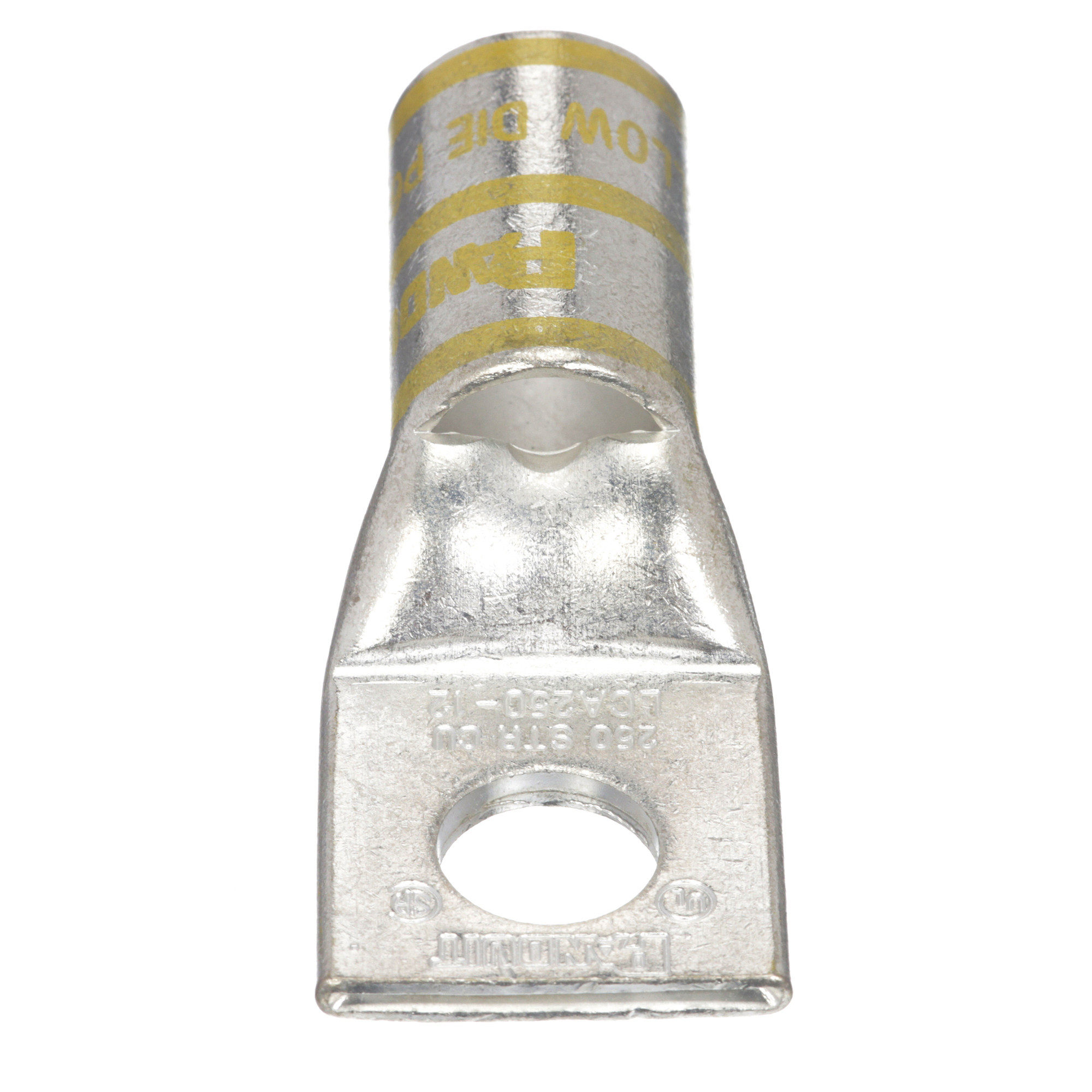

The LCA250-12-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
Manuals & Documentation
| Catalog Number | LCA250-12-X |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Yellow |
| Material | Copper |
| Number of Holes | 1 |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13 |
| UPC | 074983900459 |
| GTIN | 00074983900459 |
| Item Type | Compression Lug |
| Size | 250 kcmil Code |
| Stud Size | 1/2 IN |
| Voltage Rating | 35kV |
| Cross Reference Products | 3M 30048|ABBInstall 54113|ABBInstall 54113BELP|ABBInstall 80680|ABBInstall CTL250-12|ABBInstall HL250-48|ABBInstall M975|ABBInstall S989182|Anderson VHCS-250-12|BICC BT120C10 |
