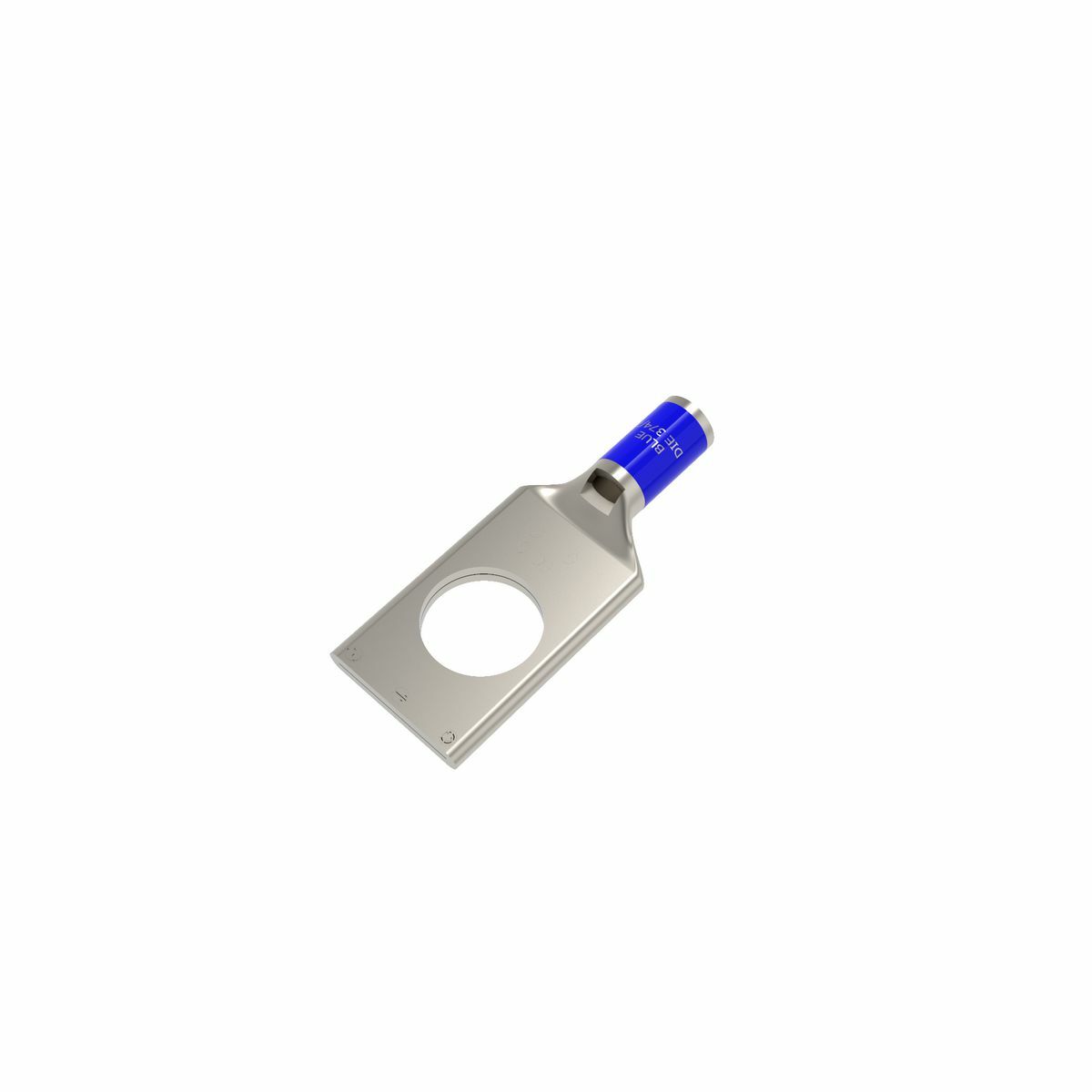

YA6CL6 YA-L 1-Hole Compression Lug With Inspection Window, 6 AWG Stranded Aluminum/Copper Conductor, Die Code: 7/374, 1/2 in Stud, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YA6CL6
- UPC:
- 781810018965
- Item #:
- 302881
YA6CL6 YA-L 1-Hole Compression Lug With Inspection Window, 6 AWG Stranded Aluminum/Copper Conductor, Die Code: 7/374, 1/2 in Stud, Copper
- MFR #:
- YA6CL6
- UPC:
- 781810018965
- Item #:
- 302881
Manuals & Documentation
| Catalog Number | YA6CL6 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 7/16 IN, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Die Index: 7, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W5CVT, W5CRT, X5CRT, X8CART Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W5CVT,W5CRT, X5CRT, X8CART Die, (1), Y35, Y39, Y750, PAT750 Tool, U5CRT, UBCABT Die, (1), Y46 Tool, U5CRT, UBCABT Die With PUADP-1 Adapter, (1), Color Code: Blue, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, Y1MRTC, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1) |
| Standard | UL 486A-486B |
| UPC | 781810018965 |
| GTIN | 00781810018965 |
| Item Type | Standard Barrel, Tin Plated |
| Voltage Rating | 35 |
| Cross Reference Products | ABBInstall 256-30695-422|ABBInstall CZL16-12|Ilsco CLWS-6-12|Panduit LCA6-12-L|PennUnion BLU6S9|ThomasBett 256-30695-422|ThomasBett CZL16-12 |
