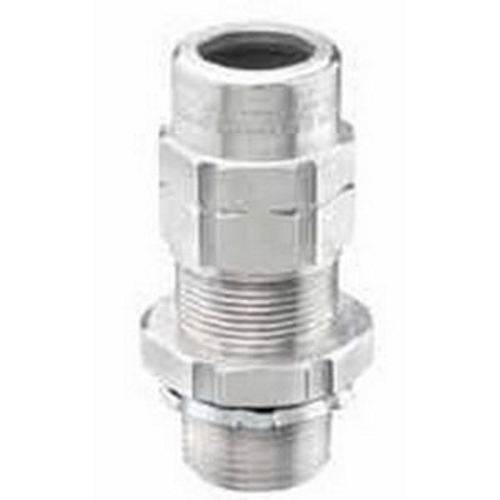

TMC2-200233A TMC2 Cable Gland Connector, 2 in Trade, 1.91 to 2.33 in Cable Openings, Copper Free Aluminum
- MFR:
- Appleton Electric
- MFR #:
- TMC2-200233A
- UPC:
- 781381300858
- Item #:
- 301554
TMC2-200233A TMC2 Cable Gland Connector, 2 in Trade, 1.91 to 2.33 in Cable Openings, Copper Free Aluminum
- MFR #:
- TMC2-200233A
- UPC:
- 781381300858
- Item #:
- 301554
TMC2 Series Cable Gland Connector, Size: 2 IN, Material: Copperfree Aluminum, Enclosure: IP66, Nema Rating: NEMA 4X, Temperature Rating: -60 To 110 DEG C, Connection: NPT, Dimensions: 2.95 IN Across Flat X 3.19 IN Across Corner X 4.2
Manuals & Documentation
| Catalog Number | TMC2-200233A |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | India |
| Made in USA | No |
| Application | For Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armor, Continuously Welded Armor Cable |
| Connection | NPT |
| Enclosure | IP66 |
| Material | Copperfree Aluminum |
| NEMA Rating | 4X |
| Special Features | TMC2 connectors provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor; Simplified two piece design; Integral o-ring face seal providing - 4X and IP66; Independent sealing and armor clamping; True 360 DEG grounding; Removable cable armor end stop accommodates larger insulated conductors; Superior pull out prevention; Compact slim profile; Reduced installation time (no disassembly required); Widest cable acceptance range; Re-usable design; Additional integral deluge proof seal for protection in extreme offshore and onshore environments; Stainless steel grounding spring; LSF-TPE (halogen free) bushing; Nylon end stop washer; Viton o-ring |
| Standard | Class I, Division 2, Groups A, B, C, D; Class I, Zones 1 And 2, AExe II AEx tA IIC; Class I, Zones 1 And 2, Exe II Ex tA IIC; Class II, Divisions 1 And 2, Groups E, F, G; Class III, Divisions 1 And 2; UL 514B, 2225, CSA C22.2 No. 174, 249506 |
| UPC | 781381300858 |
| GTIN | 00781381300858 |
| Item Type | TMC2 Series Cable Gland Connector |
| Size | 2 |
| Temperature Rating | -60 To 110 DEG C |
| Cross Reference Products | ABBInstall 2200170|ABBInstall 2200180|ABBInstall 2200190|ABBInstall 2200200|ABBInstall ST200-474|ABBInstall ST200-551|ABBInstall STE200|Adalet JAG21920|Adalet JAG23620|Appleton TMC200A |
