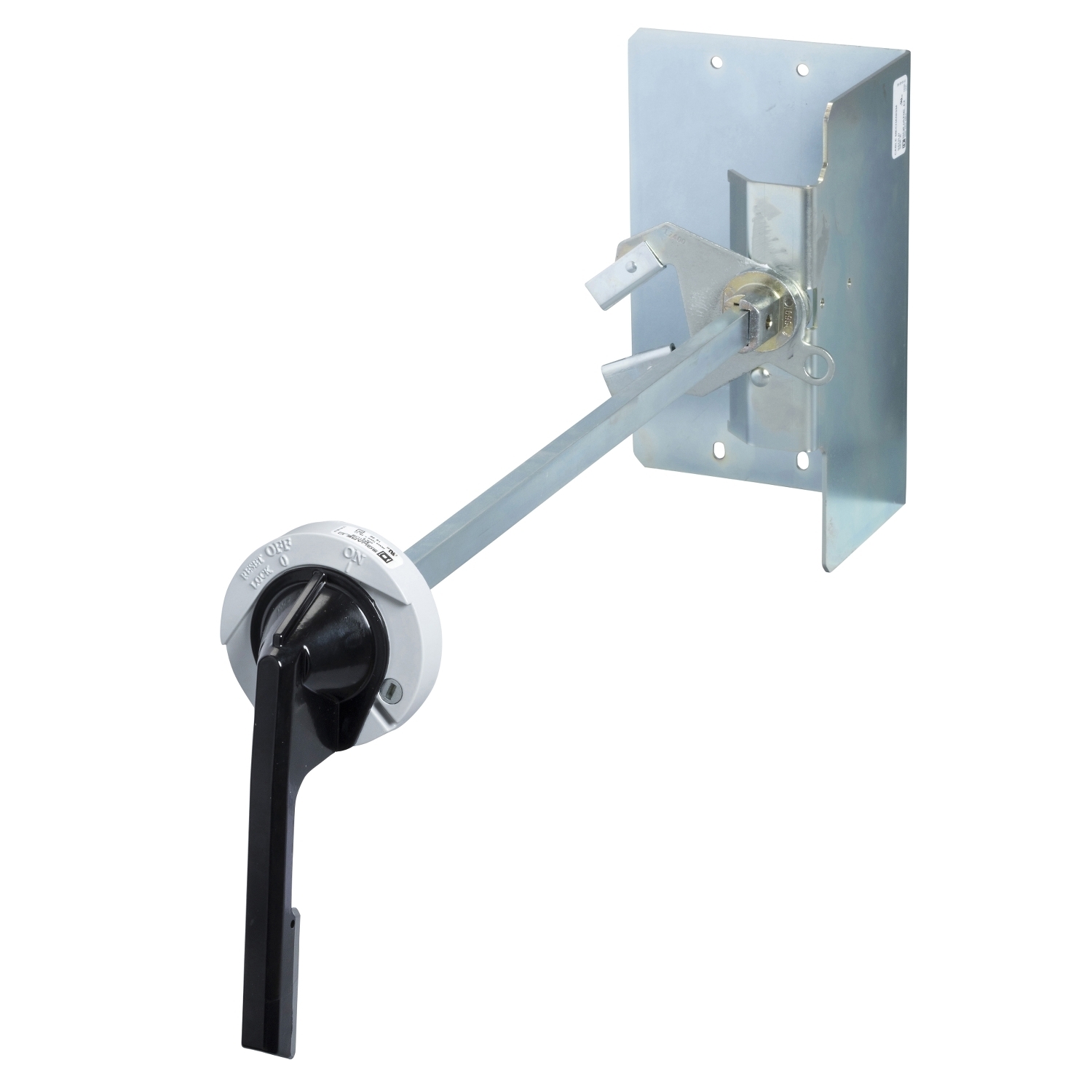

9421LD4 Type L Long Shaft Variable Depth Circuit Breaker Operating Mechanism, NEMA 1/3R/12 NEMA Rating, Rotary Handle Handle/Operation, For Use With PowerPact L Frame 400 A 3-Pole Circuit Breaker
- MFR:
- Schneider Electric
- MFR #:
- 9421LD4
- UPC:
- 785901998181
- Item #:
- 301164
9421LD4 Type L Long Shaft Variable Depth Circuit Breaker Operating Mechanism, NEMA 1/3R/12 NEMA Rating, Rotary Handle Handle/Operation, For Use With PowerPact L Frame 400 A 3-Pole Circuit Breaker
- MFR #:
- 9421LD4
- UPC:
- 785901998181
- Item #:
- 301164

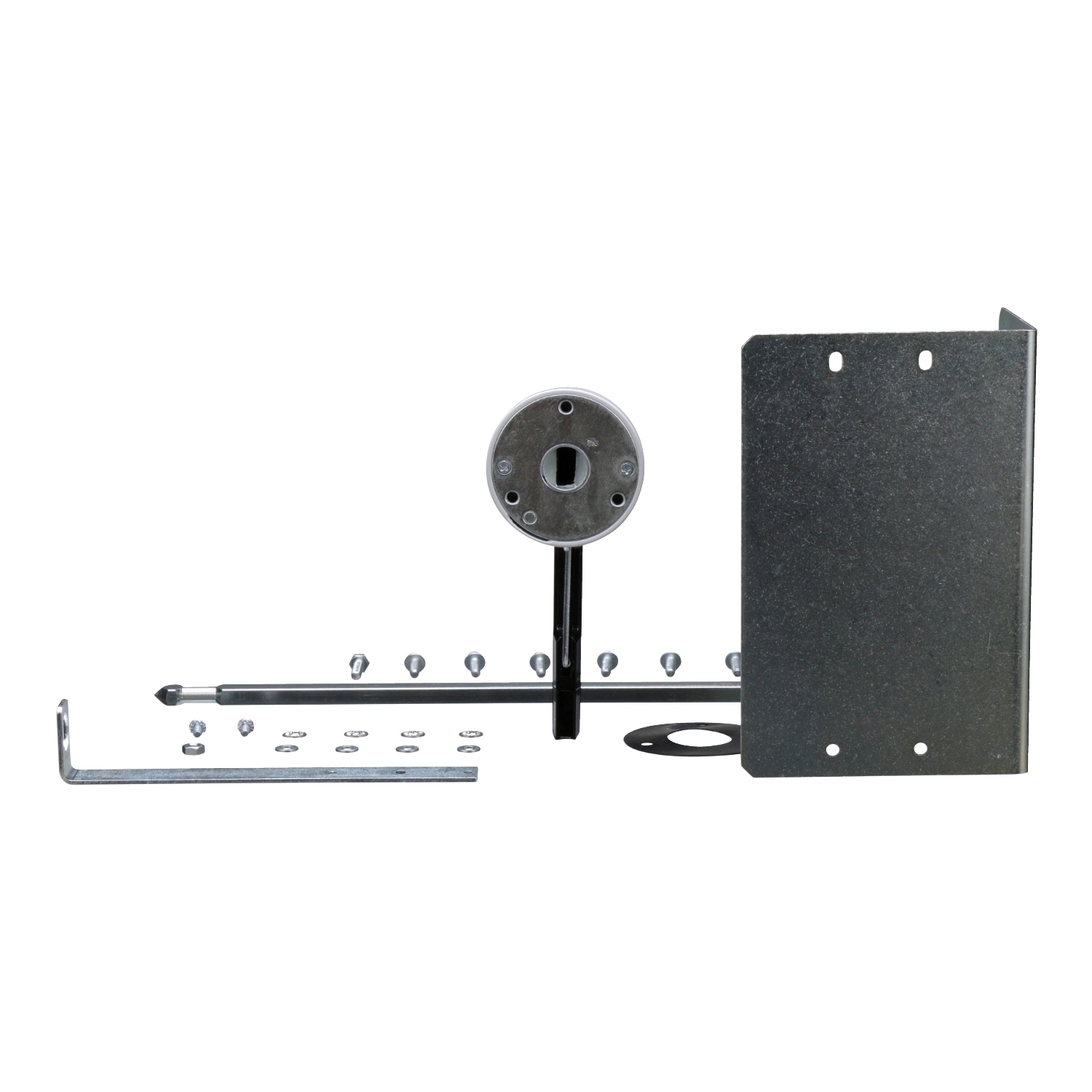

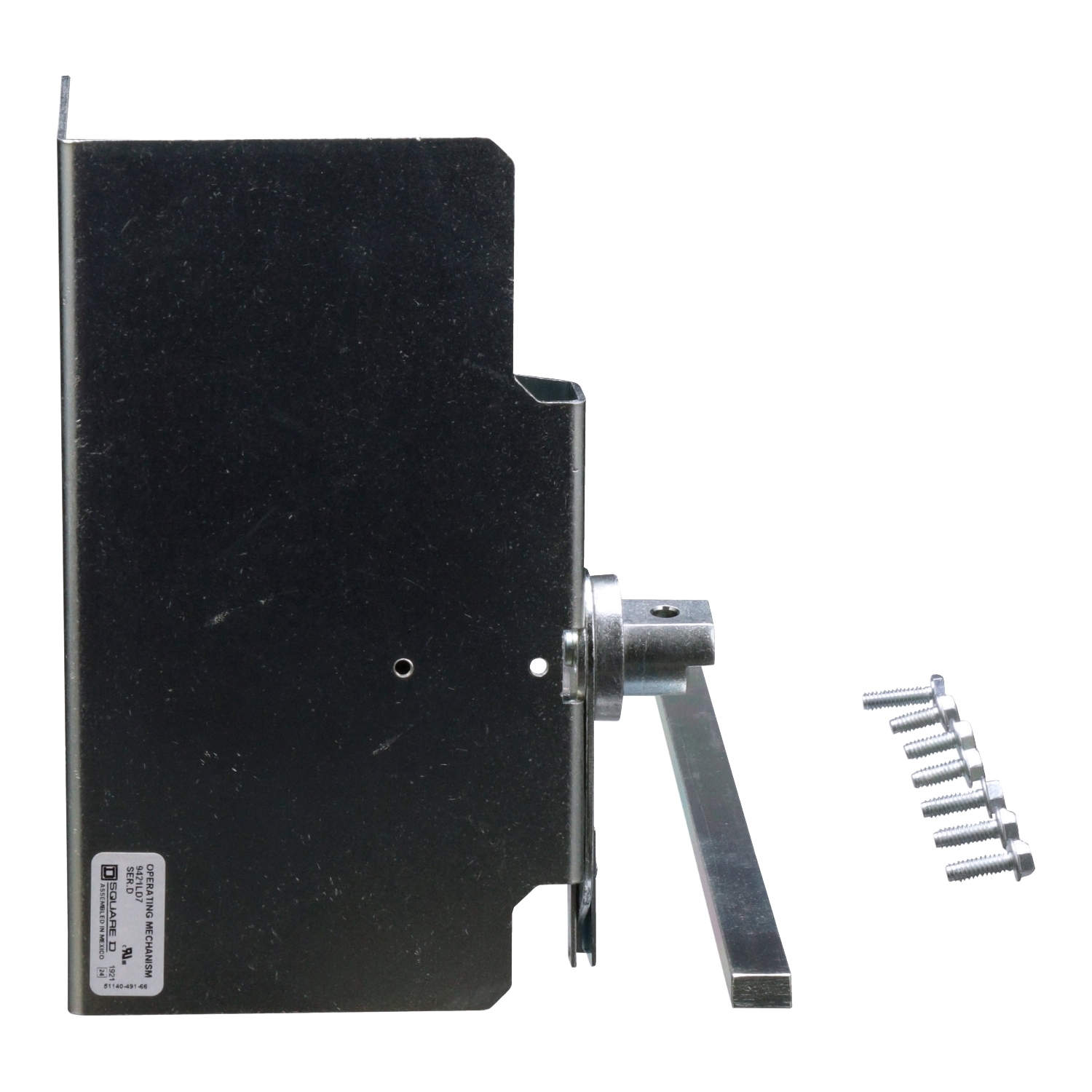

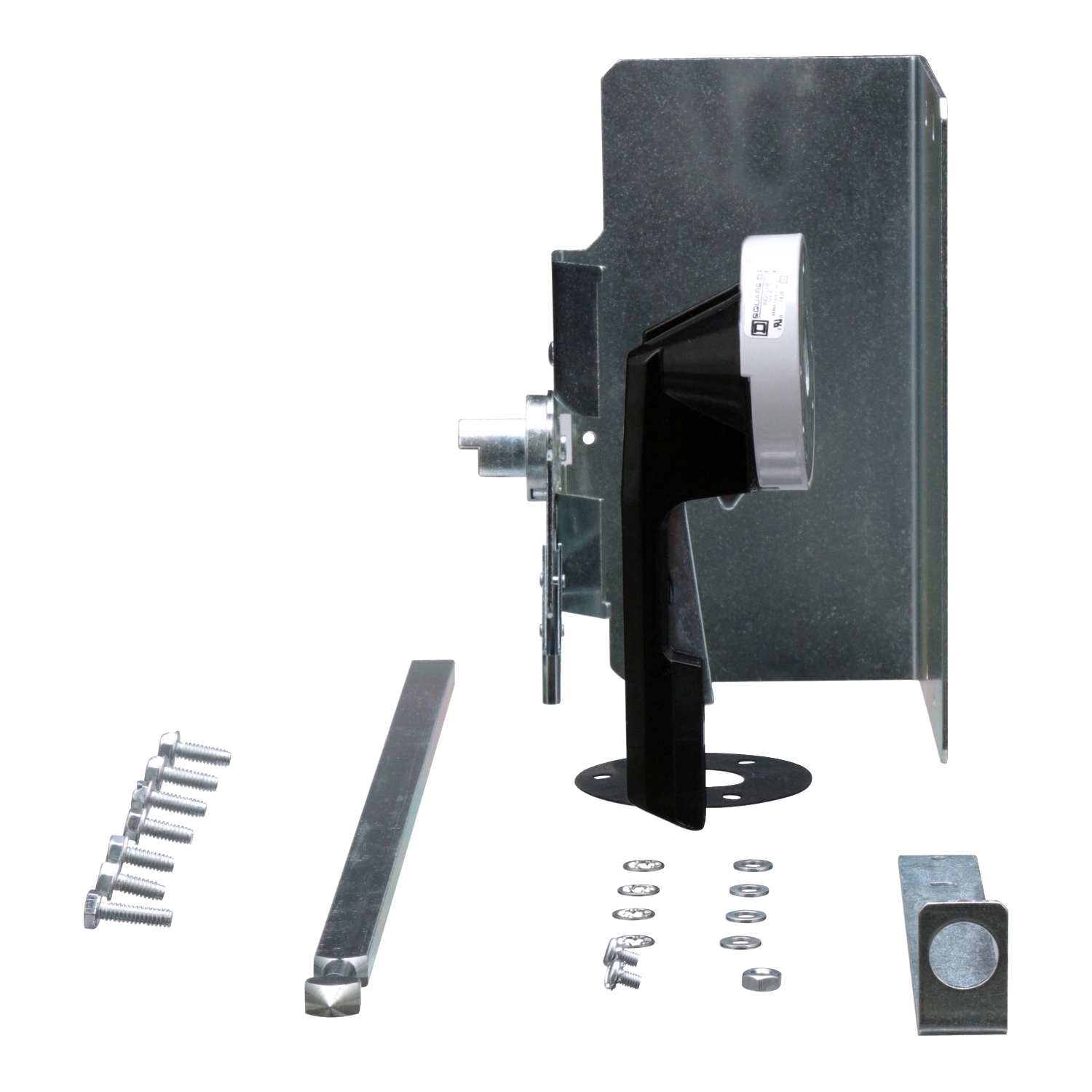

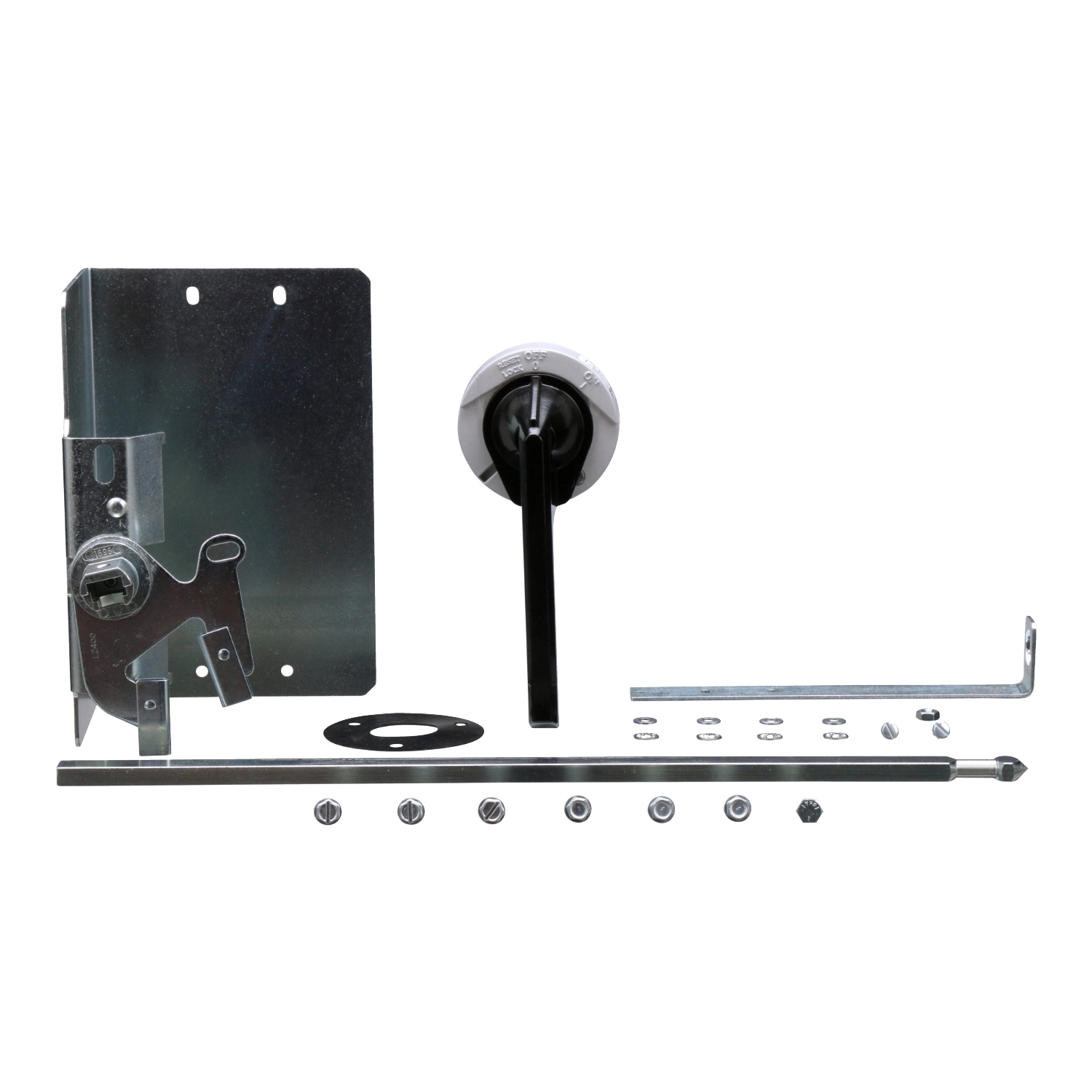

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism will work with PowerPacT D and PowerPacT L circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 600A. Proper circuit breaker must be ordered separately. Kit contains a 6 inch long handle that is rated NEMA 1/3R/12. The kit contains a long shaft. The mounting depth of this kit is 7.25 to 22.63 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Mechanism is UL Component Recognized and CSA certified.
Manuals & Documentation
| Catalog Number | 9421LD4 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | PowerPact D circuit breaker 600 A;PowerPact L circuit breaker 600 A |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=565399&lang=en-us |
| UPC | 785901998181 |
| GTIN | 00785901998181 |
| Item Type | Circuit Breaker Mechanism |
| Length | 6.0 |
| Length UOM | Inch |
