SQUARE D

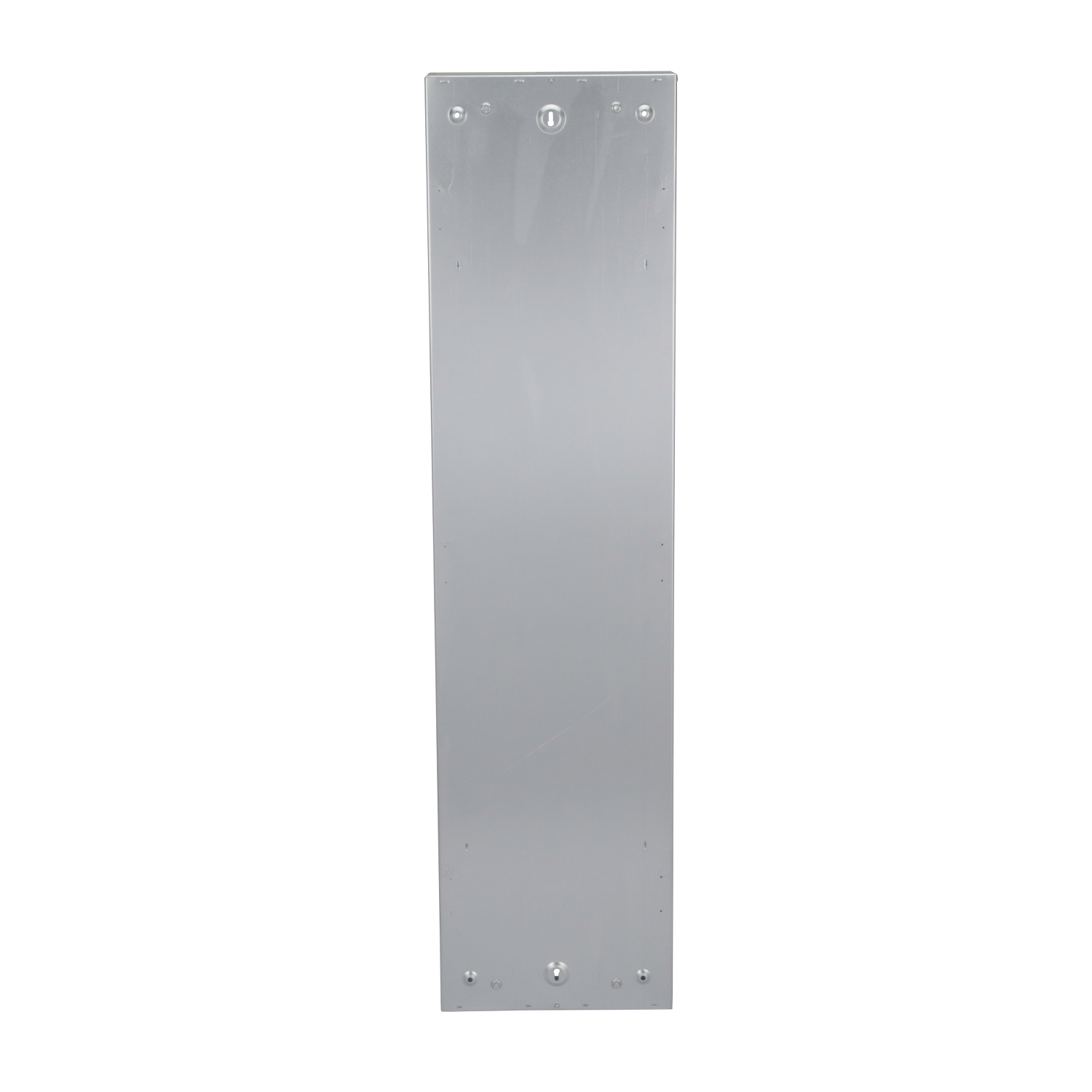

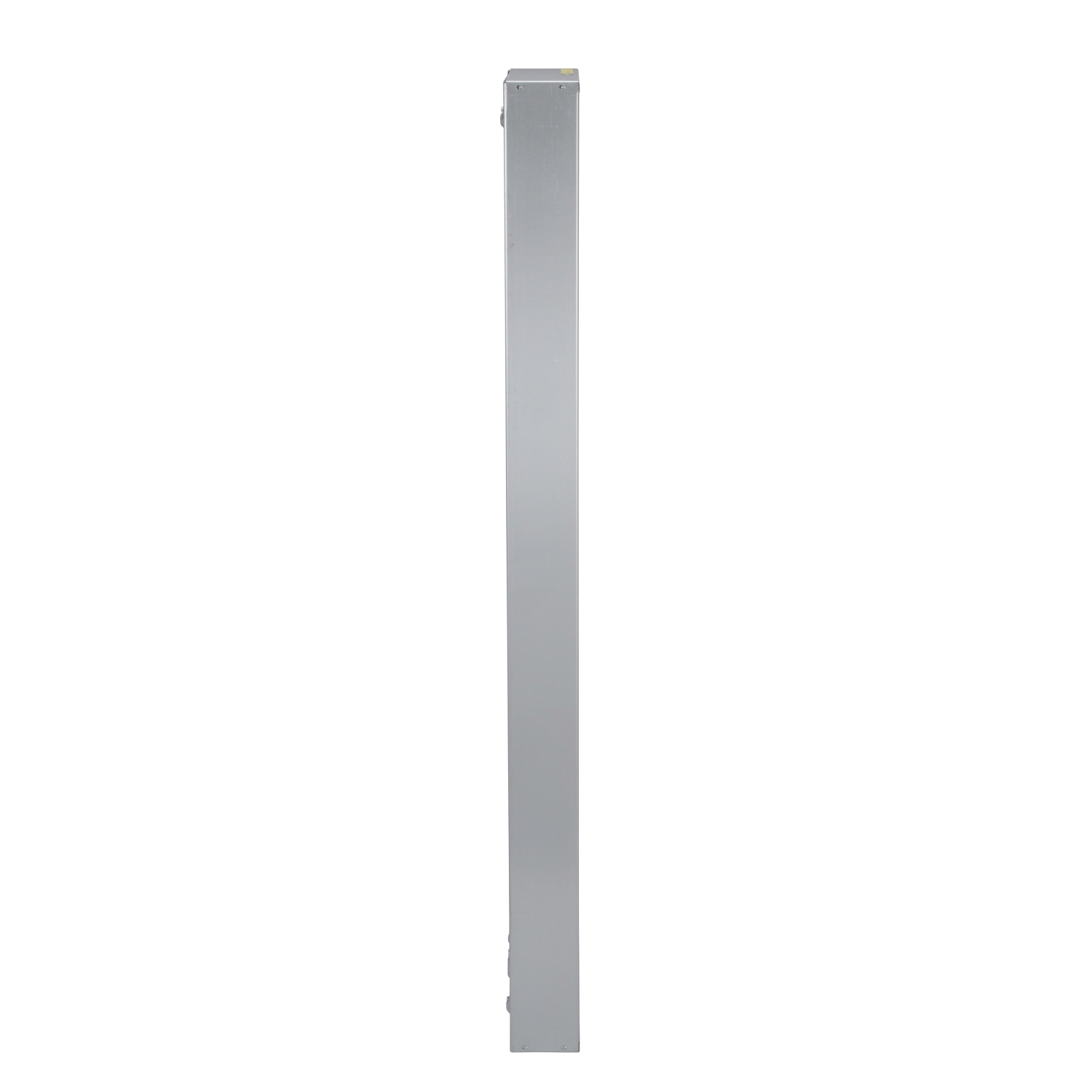

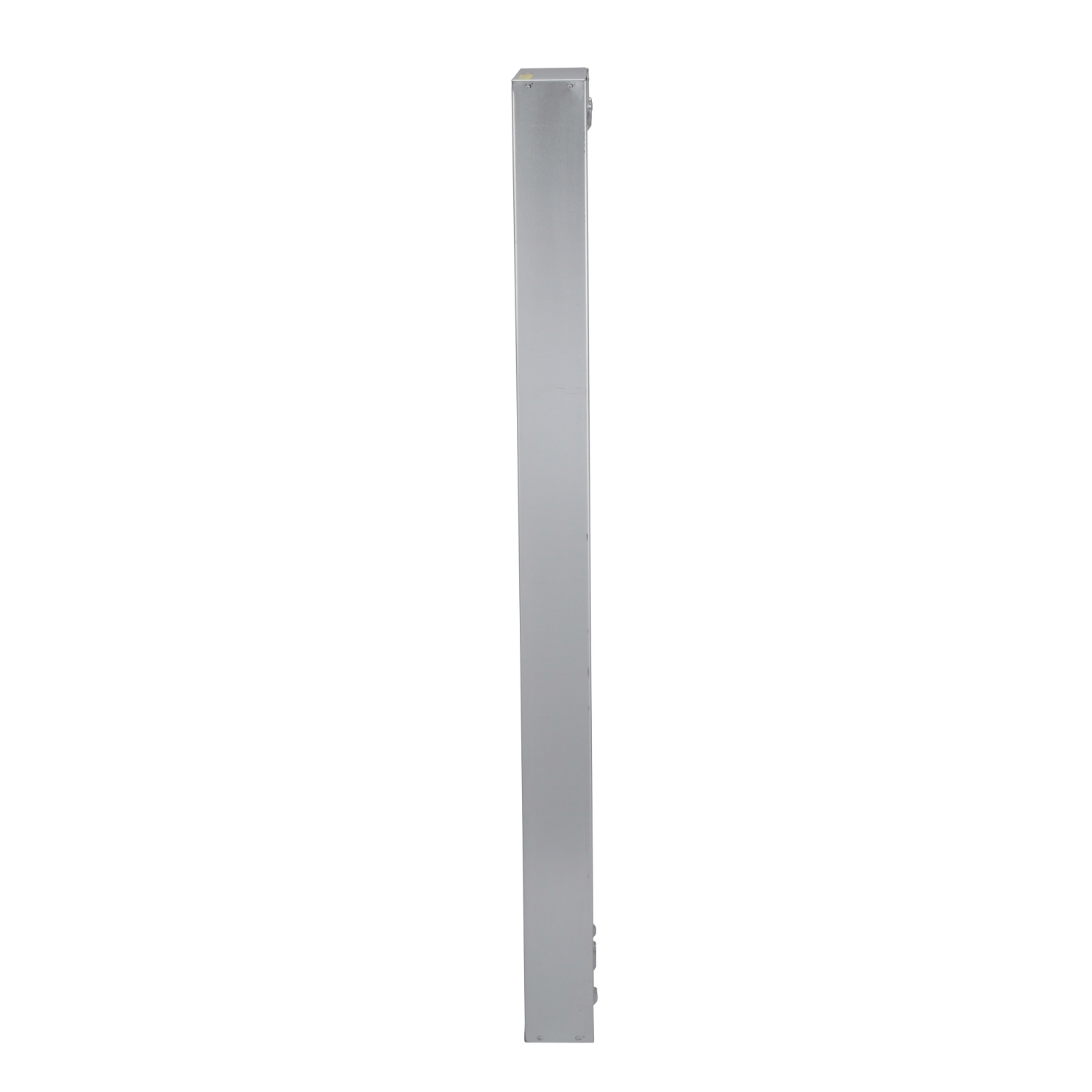

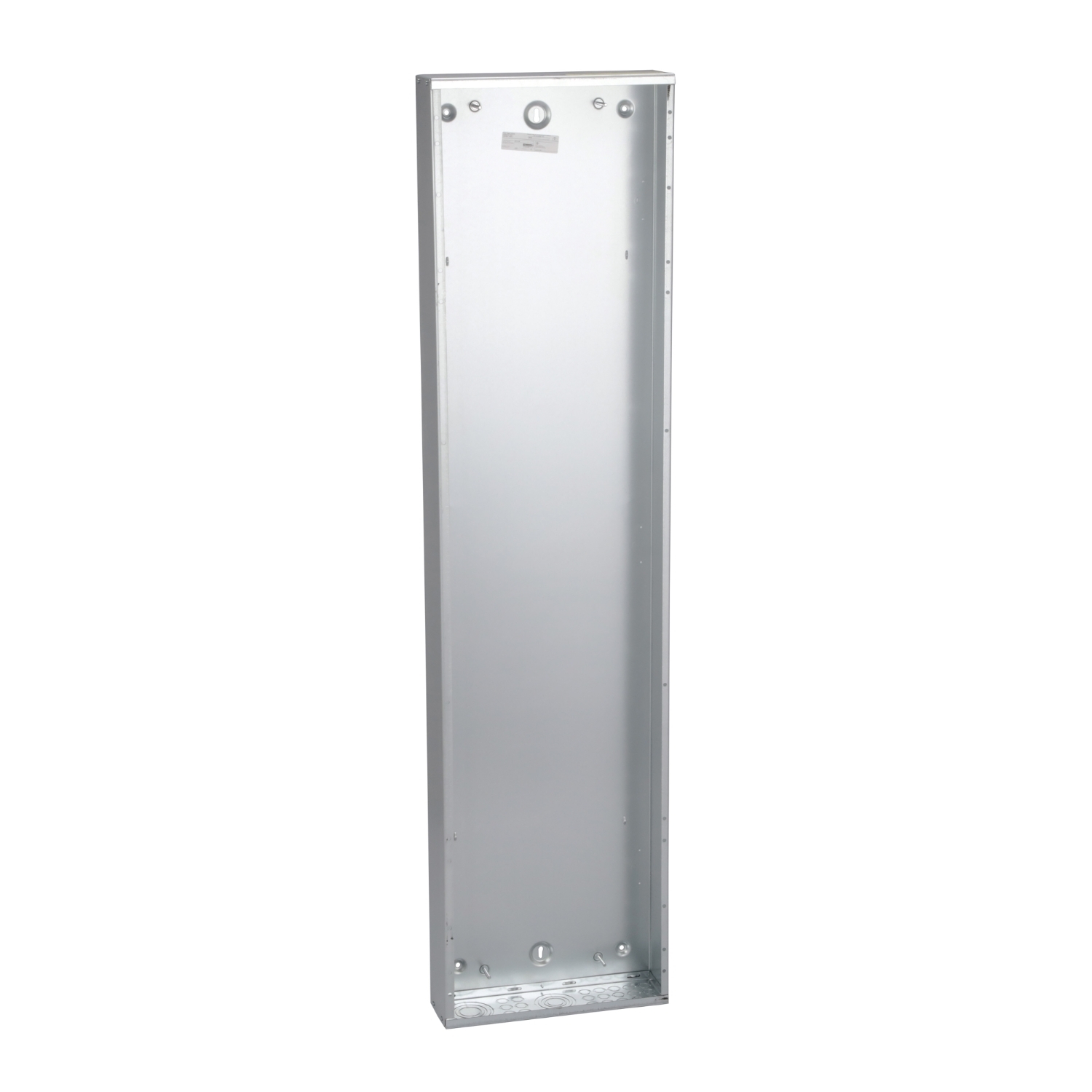

MH80 NQ+NF Panelboard Enclosure/Box, NEMA 1 NEMA Rating, 80 in L x 20 in W x 5-3/4 in D, Steel

MFR:
Schneider Electric
MFR #:
MH80
UPC:
785901083337
Item #:
30035

NQ and NF Panelboards applications include commercial buildings, industrial buildings, data centers, stadiums, and offices. NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. These panelboards have many different options for your enclosure box and its accessories. This enclosure box is rated as a Type 1 with one blank end wall and one end wall with knockouts for common conduit sizes. The enclosure dimensions are 20 inch width x 80 inch height x 5.75 inch depth. NQ and NF enclosures are UL listed for use in the USA and Canada. The end walls of NF and NQ enclosures are removable to simplify field modification to support the widest range of electrical conduit connections. NC trim fronts for interiors rated up to 250A may be screwed directly to the deadfront of the NF or NQ panelboard. NC trim fronts for interiors rated 400A or greater are vented and designed to be screwed directly to the Type 1, 2 enclosure of the NF or NQ panelboard. MHxxWP enclosures provide Type 3R/5/12 protection to NF and NQ Panelboards, and are supplied with removable blank end walls. MHxxBE and MHxxD9 Type 1 enclosures are supplied with removable blank end walls at both ends. MHxx enclosures have one blank end wall and one end wall with knockouts for common conduit sizes.

Manuals & Documentation
Catalog Number MH80
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Enclosure Steel
Panelboard Type Panelboard Box
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446757&lang=en-us
UPC 785901083337
GTIN 00785901083337
Item Type Enclosure
Width 20.0
Width UOM Inch
Height 80.0
Height UOM Inch
Depth 5.75 IN
