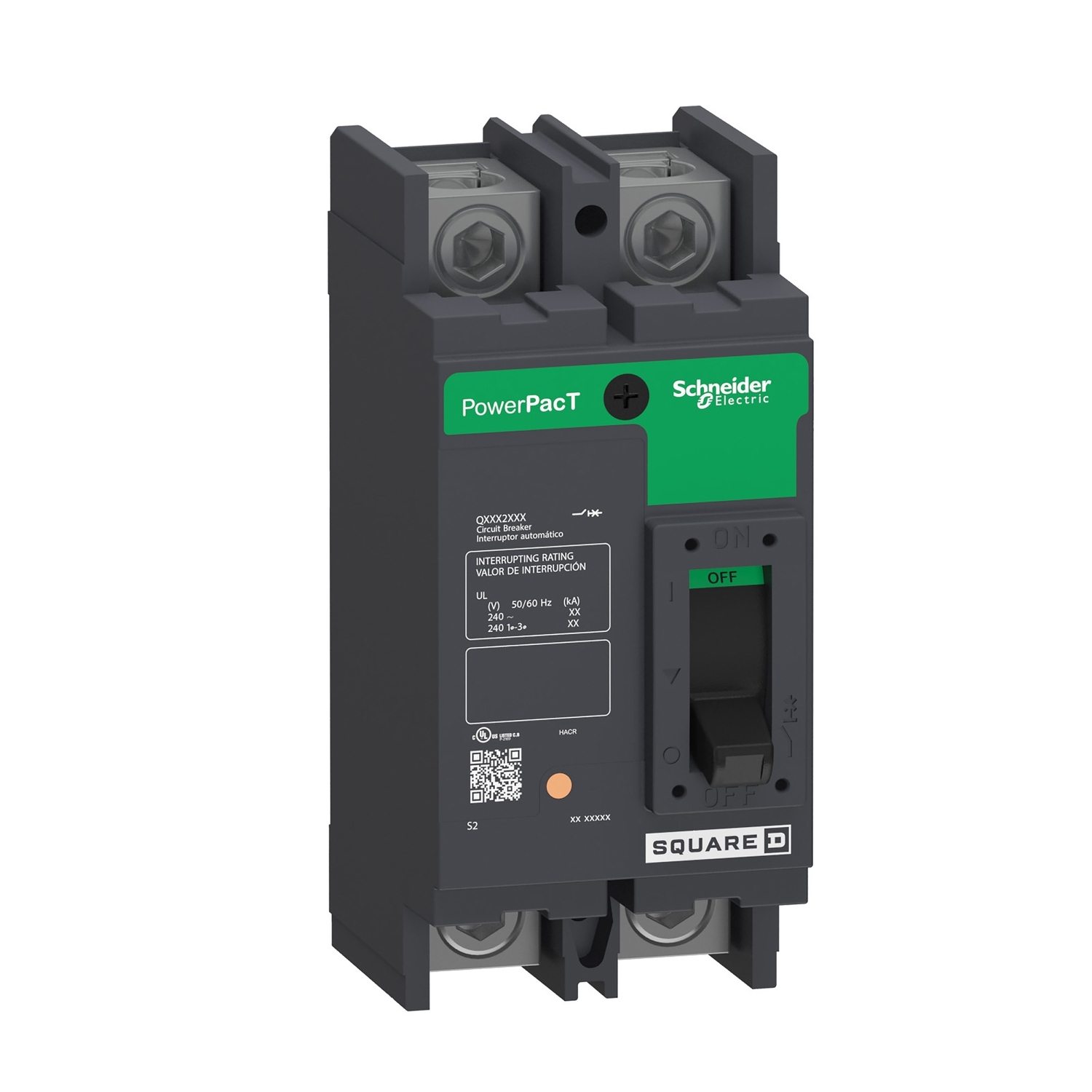

QBM22175TN PowerPact MasterPact Type QBM Molded Case Circuit Breaker, 240 V AC, 175 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- QBM22175TN
- UPC:
- 785901565536
- Item #:
- 299767
QBM22175TN PowerPact MasterPact Type QBM Molded Case Circuit Breaker, 240 V AC, 175 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
- MFR #:
- QBM22175TN
- UPC:
- 785901565536
- Item #:
- 299767

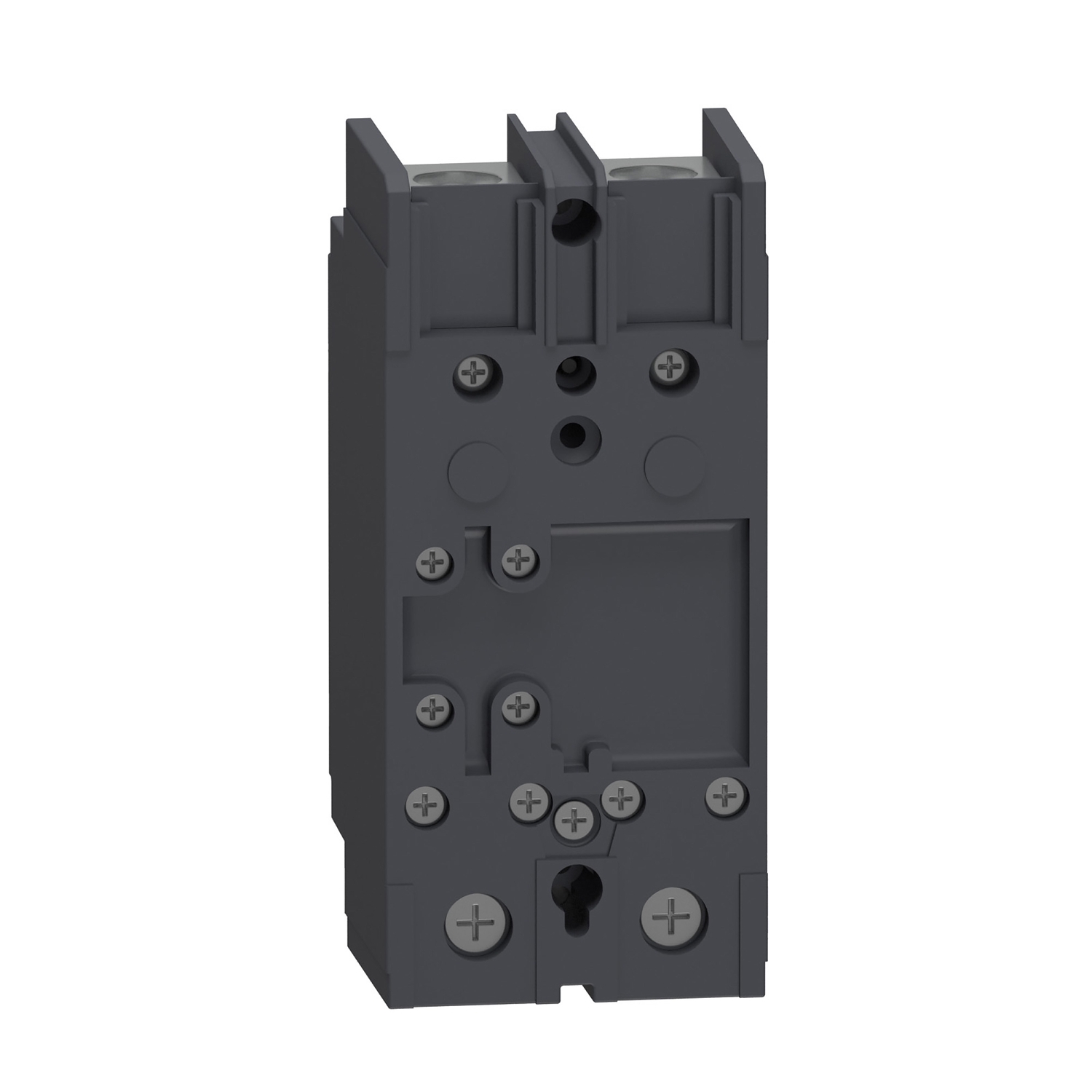

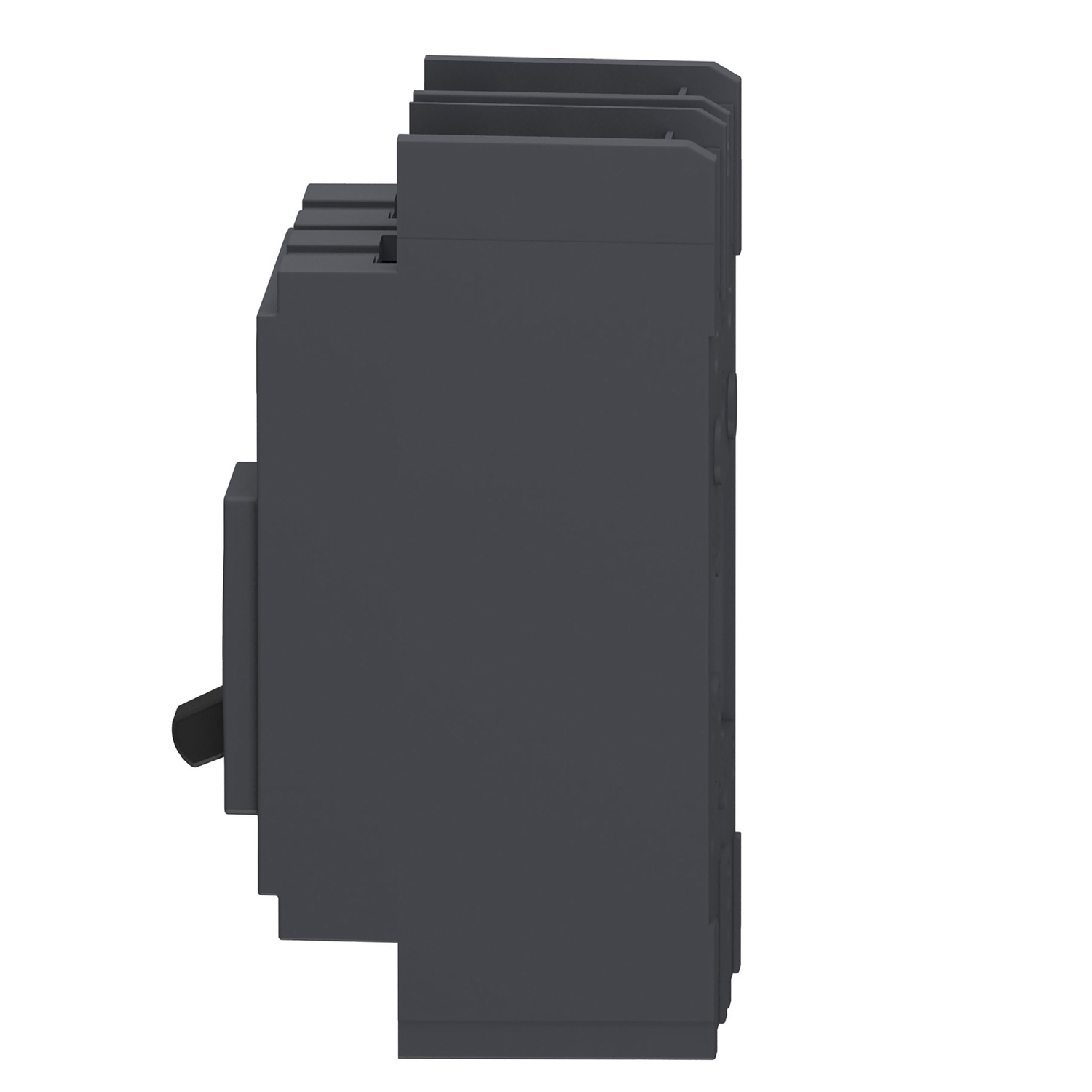

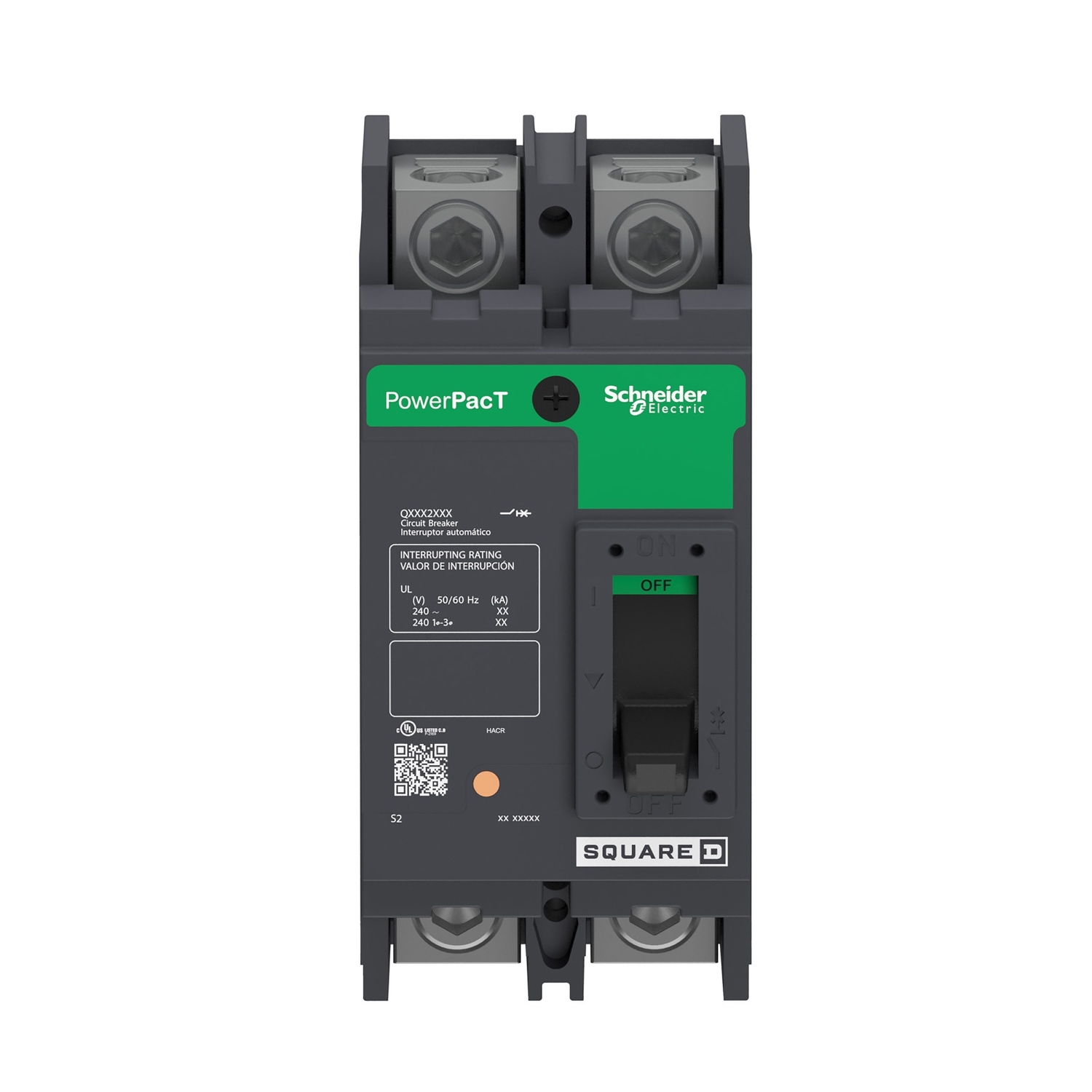

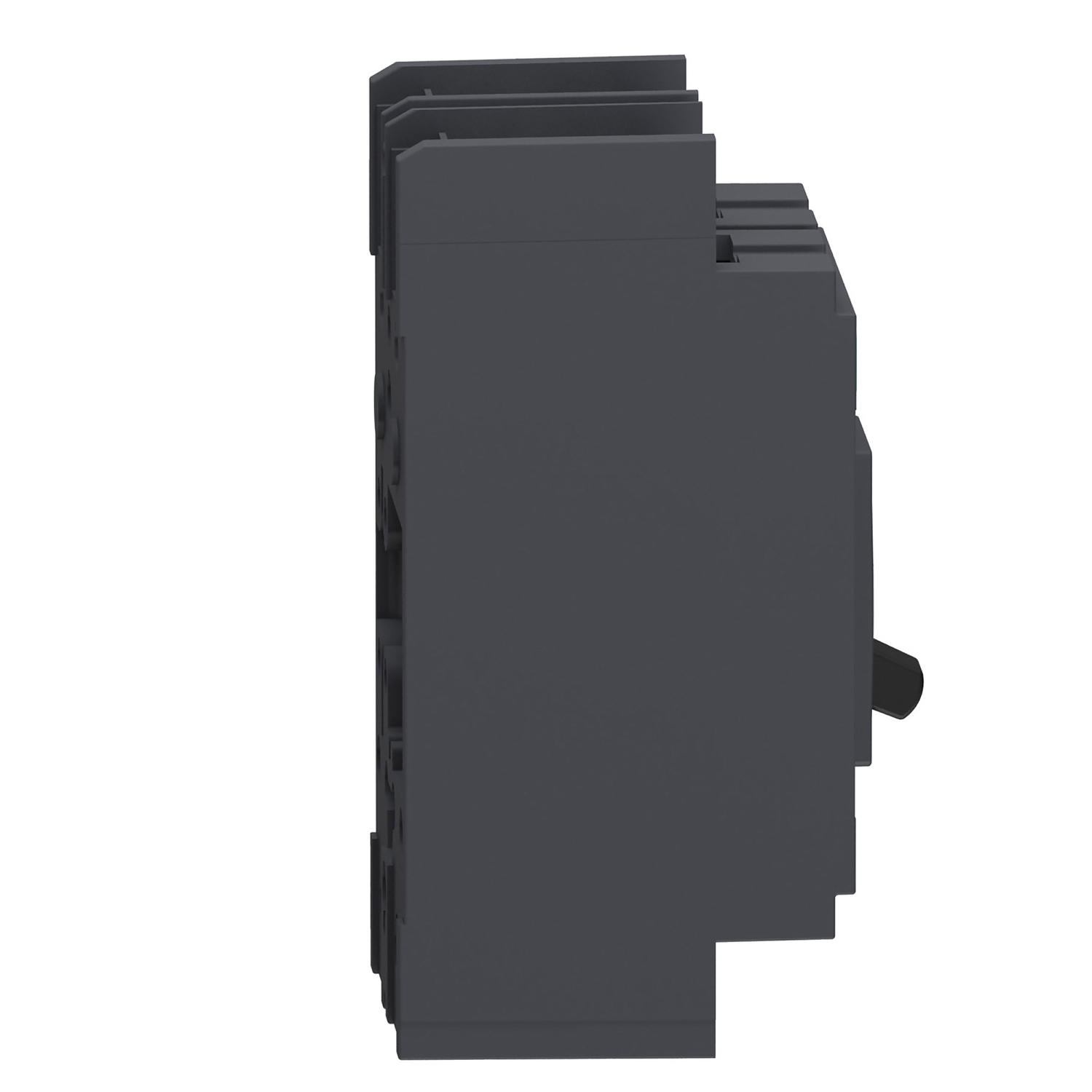

PowerPacTQ-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on the load side and terminal nuts on the line side. It has studs on the load end with no nuts and washers. This PowerPacT Q, 175A, 2 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Manuals & Documentation
| Catalog Number | QBM22175TN |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=435061&lang=en-us |
| UPC | 785901565536 |
| GTIN | 00785901565536 |
| Width | 3.0 |
| Width UOM | Inch |
| Height | 6.47 |
| Height UOM | Inch |
| Depth | 3.93 IN |
