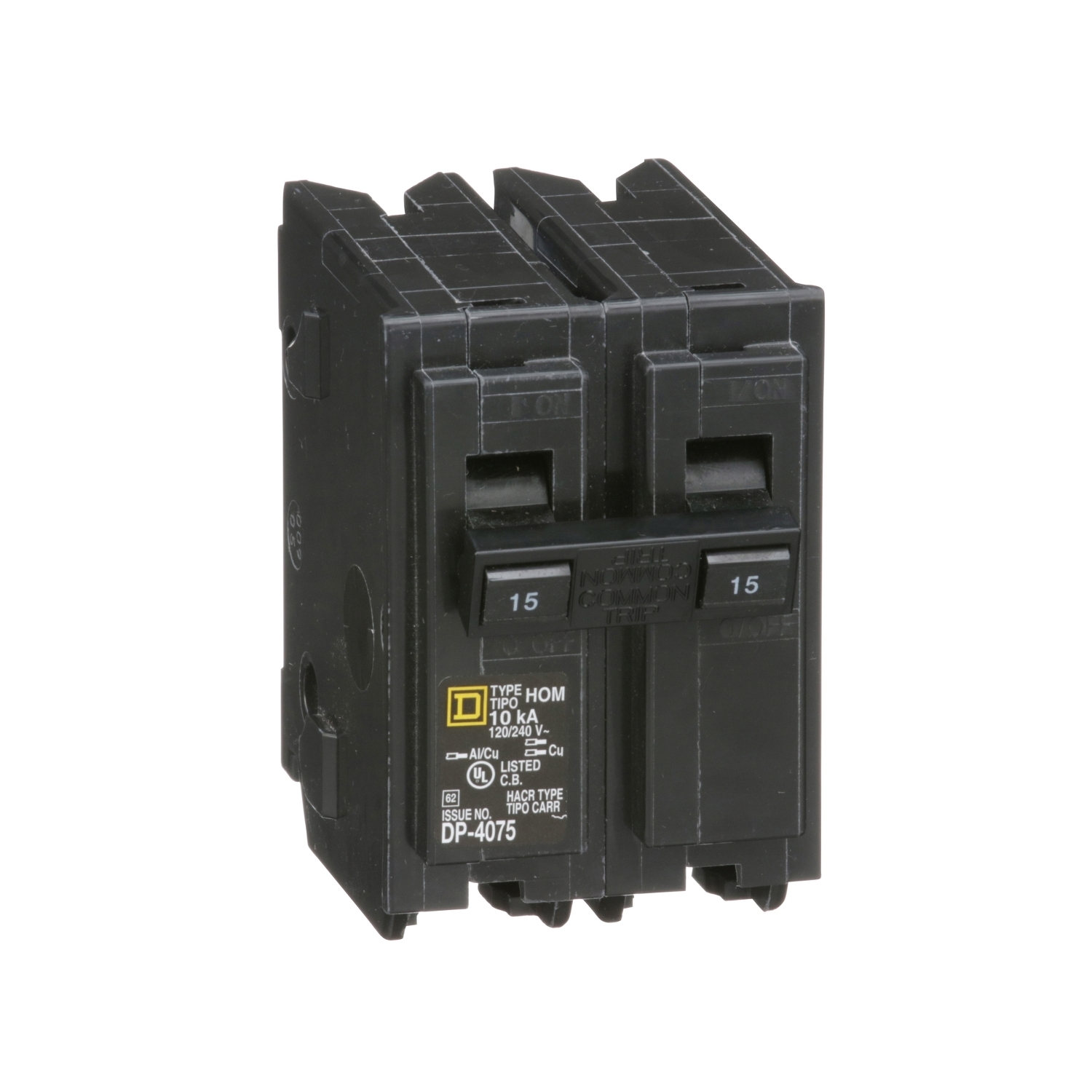

HOM215 Homeline Miniature Circuit Breaker, 15 Amp, 2 Pole, 120/240V

MFR:
Schneider Electric
MFR #:
HOM215
UPC:
785901065265
Item #:
29951

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 15A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Manuals & Documentation
Catalog Number HOM215
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:Lifetime
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398061&lang=en-us
UPC 785901065265
GTIN 00785901065265
Width 2.000000000000000
Width UOM Inch
Height 3.130000000000000
Height UOM Inch
Depth 2.98 IN
Cross Reference Products ABBInstall TB220|Crouse MP220|Eaton BR215|Eaton BR245|Eaton CH215|Eaton CHQ215|Eaton CL220|Eaton CUHBR1515|Eaton CUHBR215|Eaton CUHCH215
