Schneider Electric

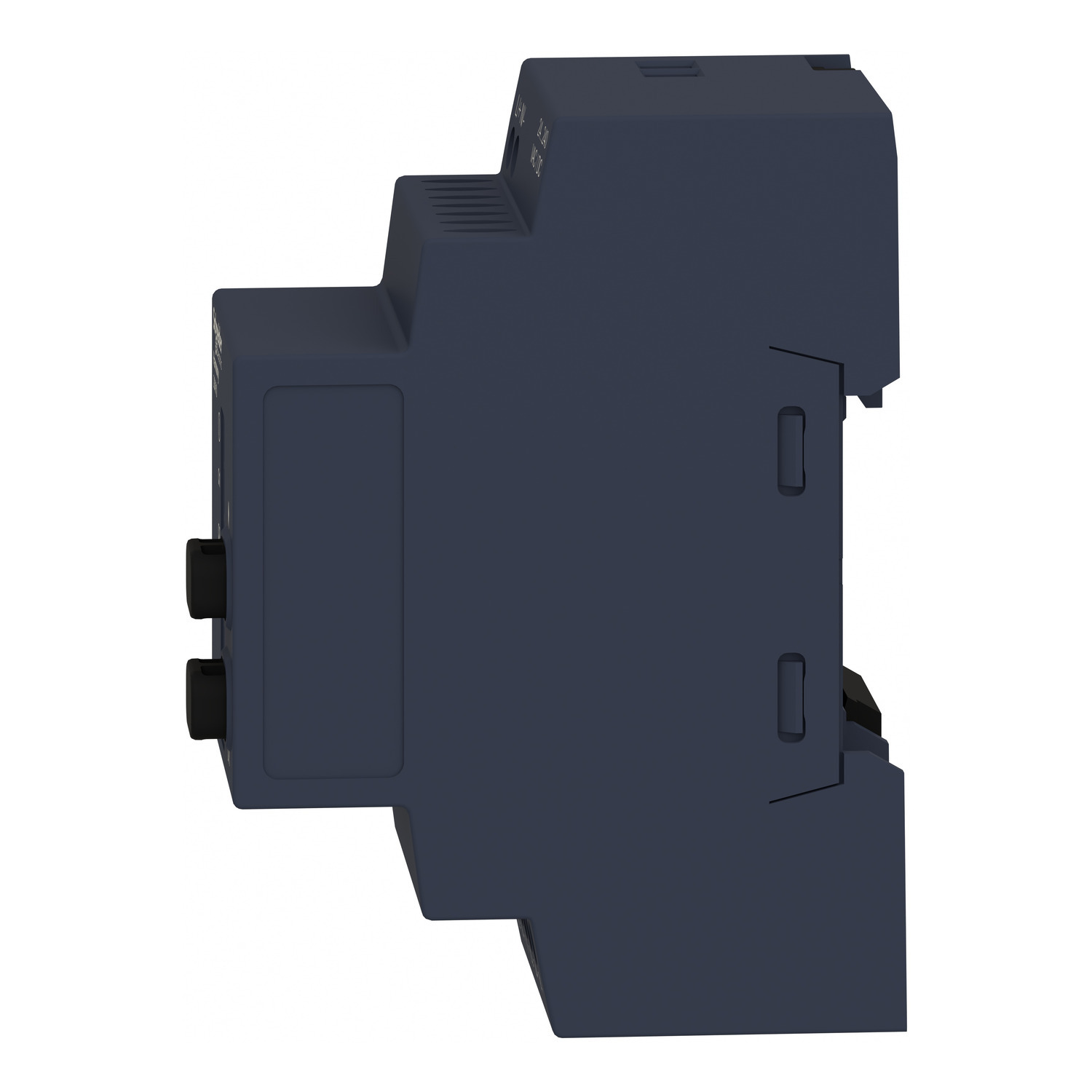

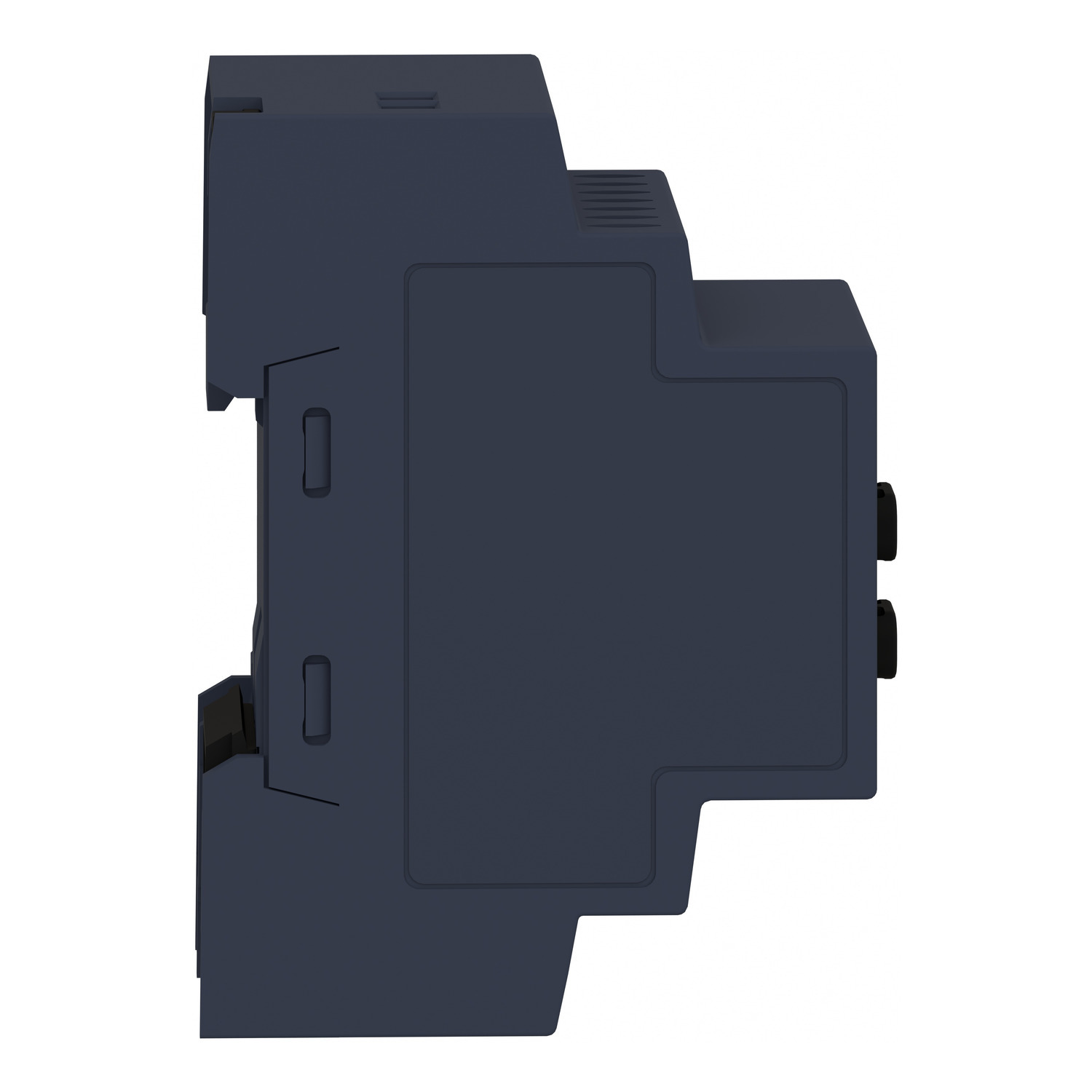

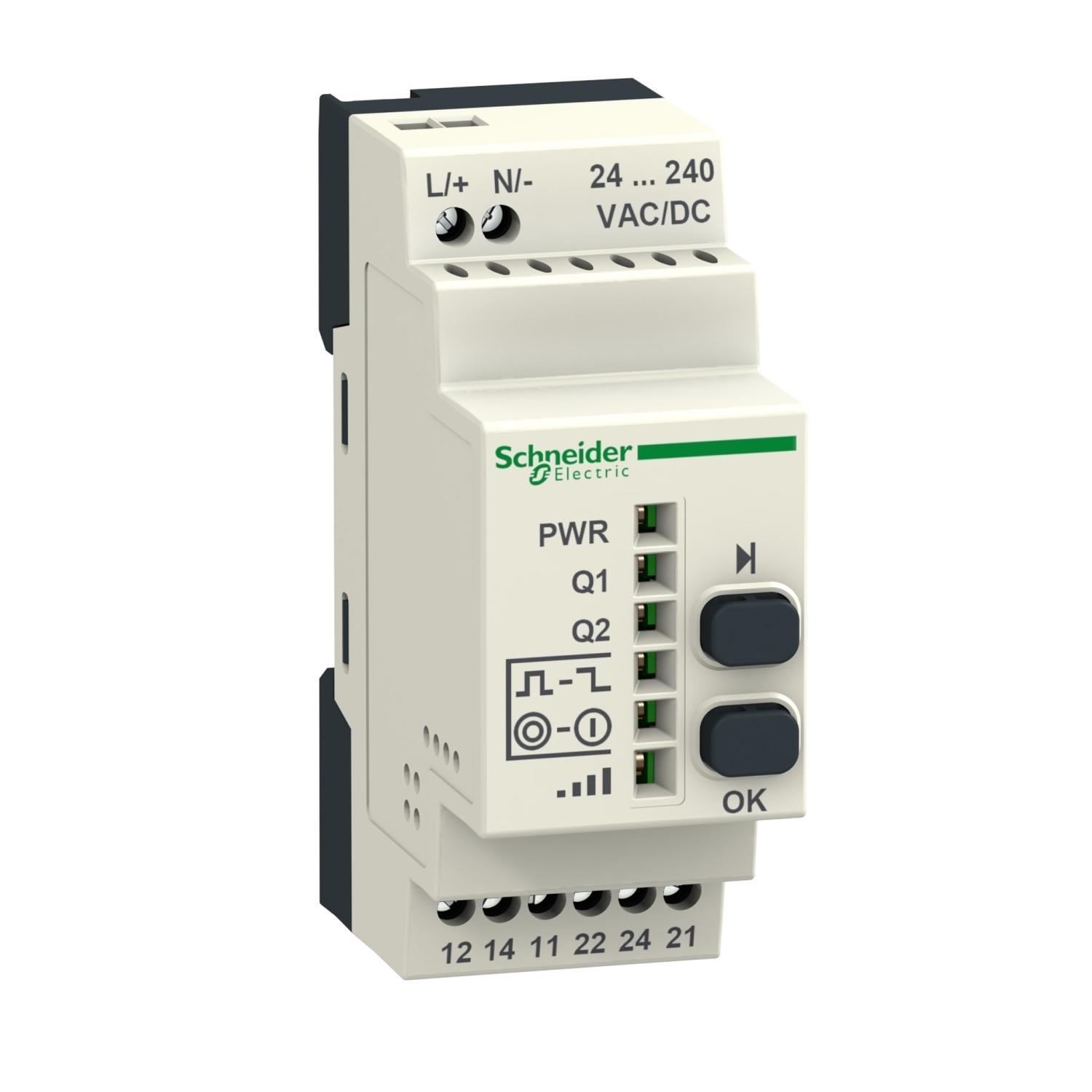

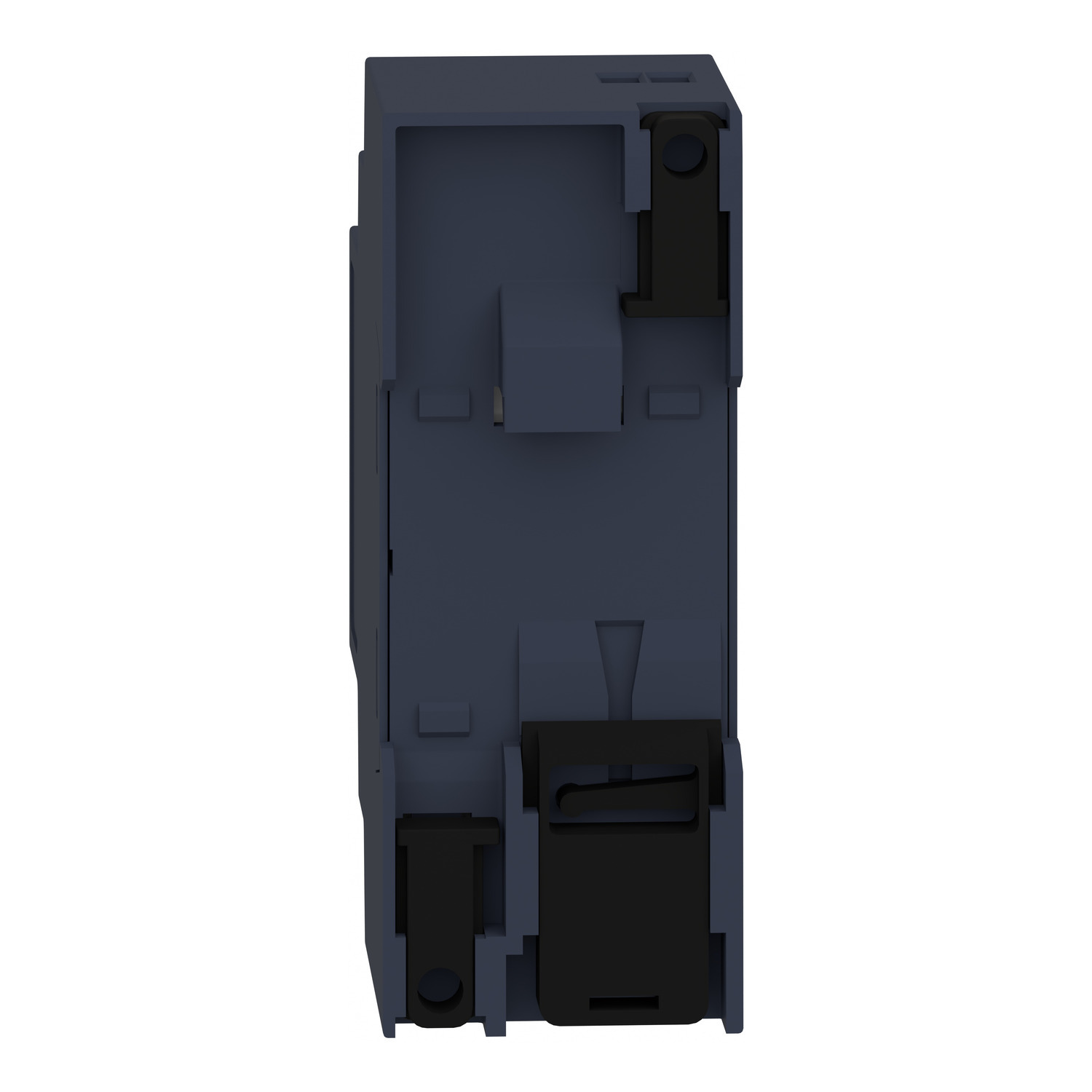

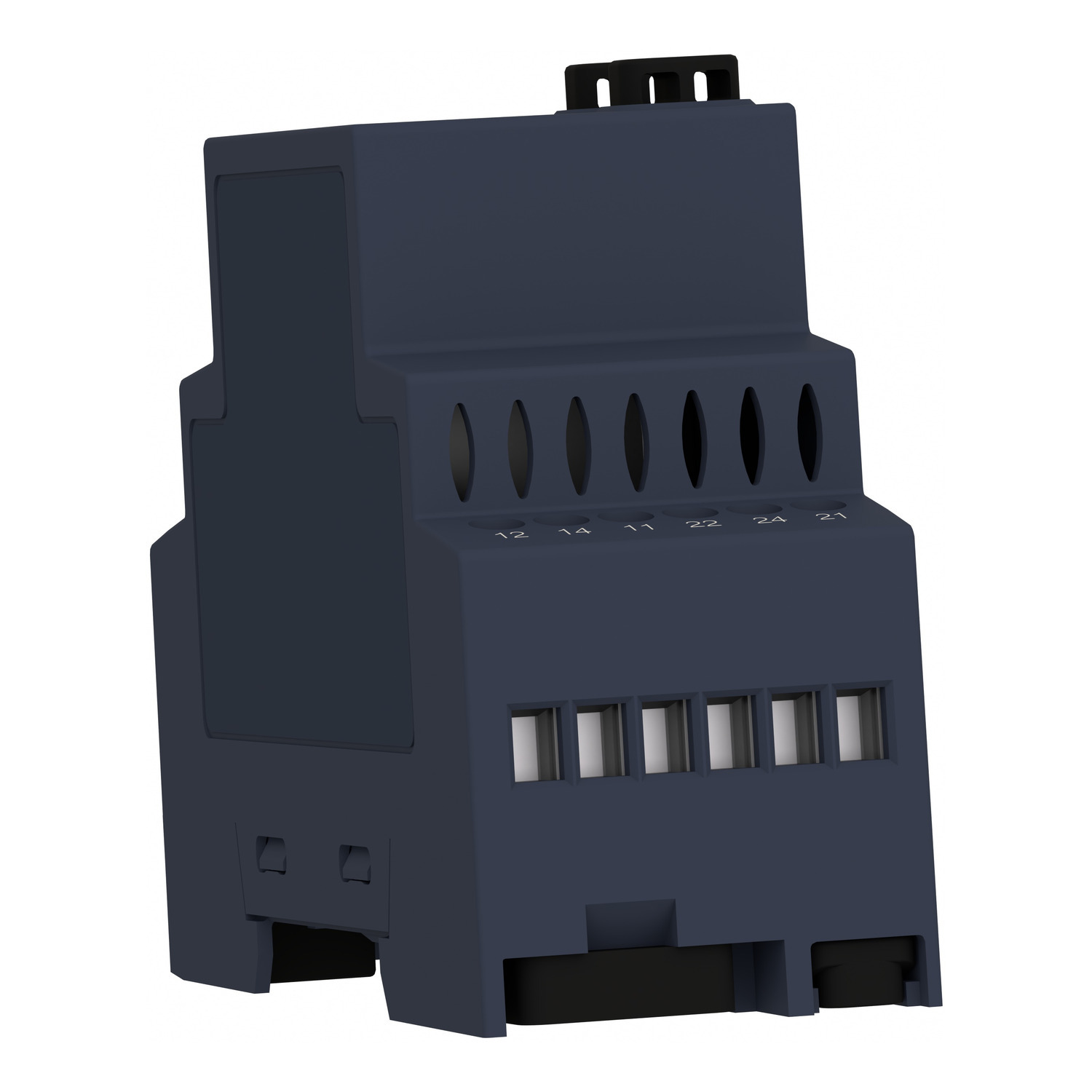

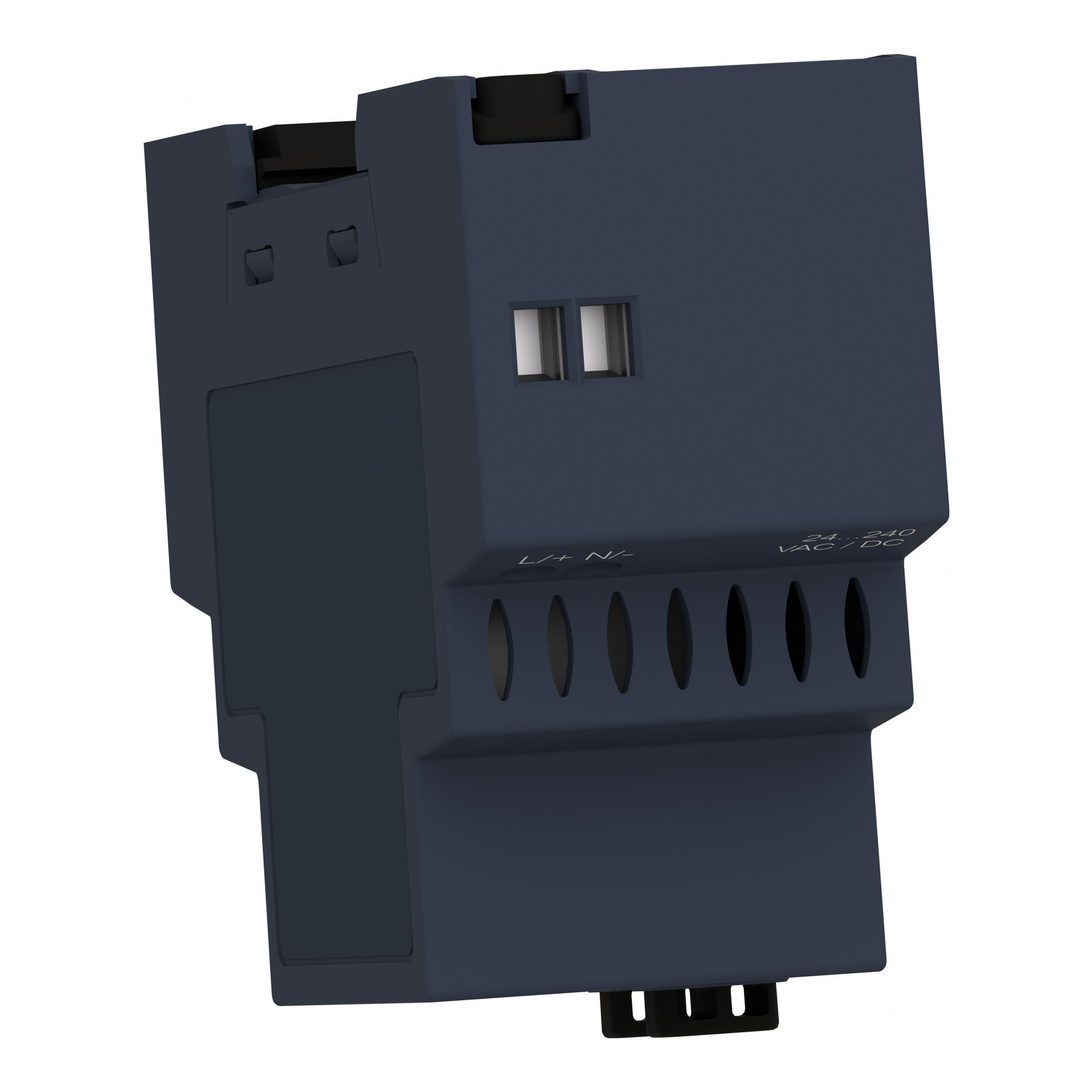

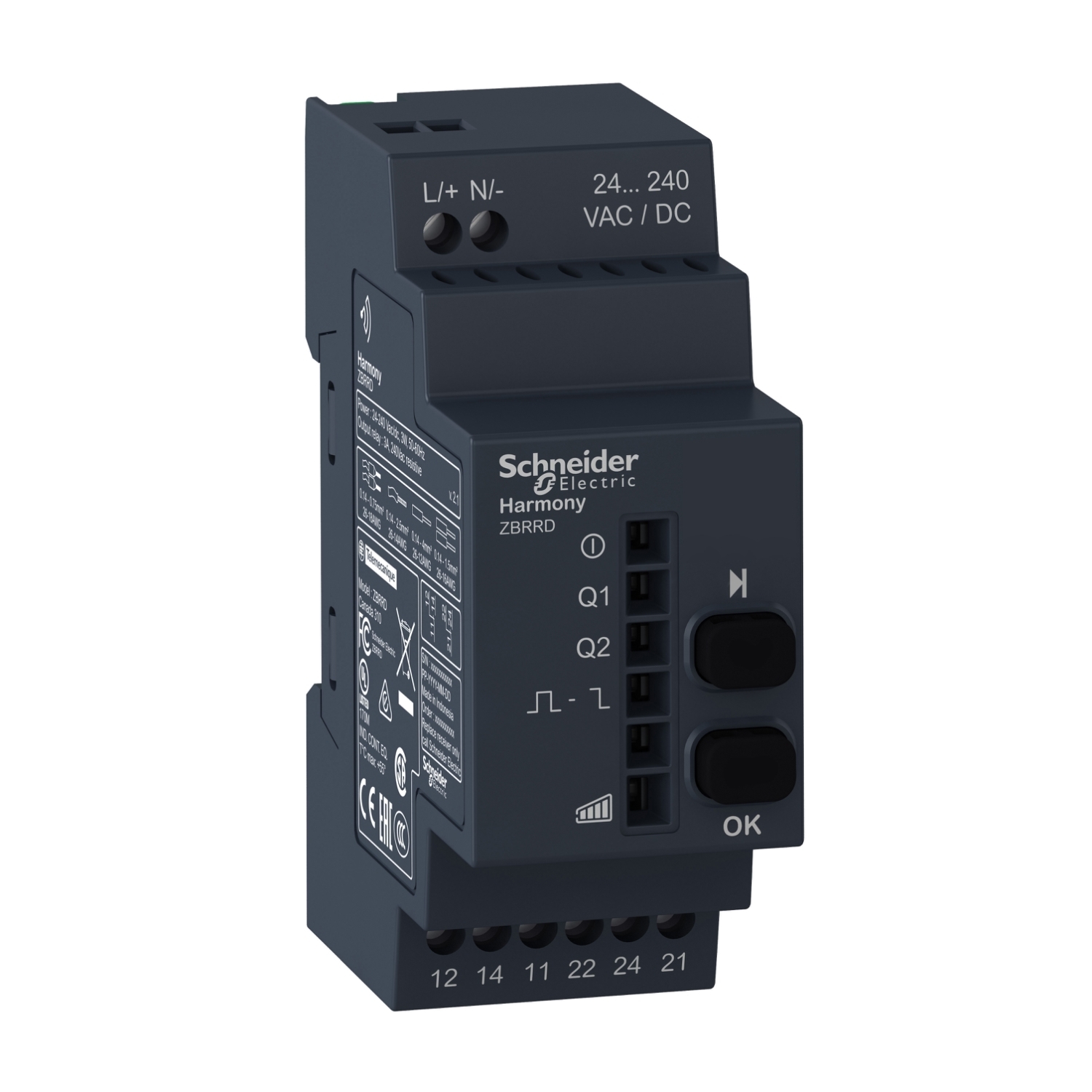

ZBRRD Harmony Bi-Stable Monostable Programmable Receiver, For Use With Harmony XB5R, XB4R 22 mm Pushbutton, 2.95 in, 24 to 240 V AC/DC, 4 W AC/DC, 2NO 2NC contact configuration, Plastic, Green

MFR:
Schneider Electric
MFR #:
ZBRRD
Item #:
298881

This programmable receiver is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a configurable receiver equipped with 2 buttons (teach and parameter setting), 6 indicating LEDs (power ON, function modes, output status, signal strength). It is supplied set to monostable output function and can be configured to bistable and stop/start functions. Its supply voltage is 24V to 240V AC/DC.

Manuals & Documentation
Catalog Number ZBRRD
Manufacturer Schneider Electric
Brand Schneider Electric
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application Interface to actuators
Connection 1 conductor cable 0.14-2.5 mm² - AWG 26...AWG 14 - solid - without cable end IEC 60947-1;2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - solid - without cable end IEC 60947-1;1 conductor cable 0.14-4 mm² - AWG 26...AWG 12 - flexible - with cable end IEC 60947-1;2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - flexible - with cable end IEC 60947-1
Frequency Rating 50...60 Hz +/- 10 %
Material Self-extinguishing plastic
Mounting Din Rail
Response Time < 30 ms after transmitter clicks
Special Features Zigbee green power 2.4 GHz IEEE 802.15.4
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267942908&lang=en-us
GTIN 03606480521164
Item Type Programmable receiver;Bi-stable;monostable
Voltage Rating 24...240 V AC/DC 50/60 Hz - 10...10 %
