Appleton

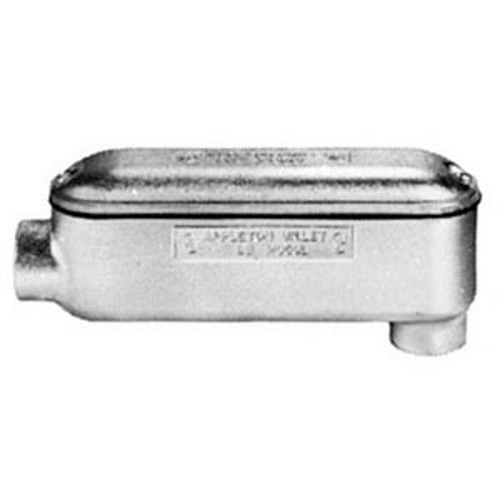

BLB125-M Mogul Unilet NEC 6x Type LB Conduit Outlet Body With Cover and Gasket, 1-1/4 in Hub, 48 cu-in, Malleable Iron, Triple Coated

MFR:
Appleton Electric
MFR #:
BLB125-M
UPC:
781381463478
Item #:
298775

Mogul UNILETS Type LB NEC 6X Conduit Outlet Body With Assembled Cover And Gasket, Hub Size: 1-1/4 IN, Length: 9.69 IN, Width: 2.38 IN, Height: 4-3/4 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy

Manuals & Documentation
Catalog Number BLB125-M
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Rigid Metal Conduit And IMC
Connection Tapered Female Threaded
Finish Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
Hub Size 1-1/4 IN
Material Malleable Iron
Special Features Exclusive built-in rollers facilitate cable pulling; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Covers have captive stainless steel screws to speed installation, prevent freezing of screws; Length Requirement: distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2); Bending space requirement: These moguls also meet the NEC 314.28(A)(2) exception requirement spelled out in NEC 312.6(A) table; Furnished with rollers for easier cable pulling; Larger body size facilitates pulling of large and heavy conductors; Specially designed raised cast covers provide additional wiring area; Wiring capacity: 48 CU-IN
Standard UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
UPC 781381463478
GTIN 00781381463478
Item Type Type LB NEC 6X Conduit Outlet Body With Assembled Cover And Gasket
Length 9.69
Length UOM Inch
Width 2.38
Width UOM Inch
Height 4-3/4
Height UOM Inch
