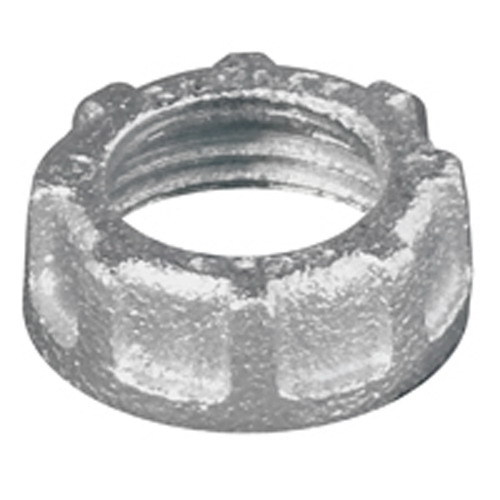

Conduit Bushing, Size: 3/4 IN, Material: Malleable Iron, Finish: Zinc Electroplate, Connection: Threaded, Dimensions: 0.44 IN Height X 1-1/4 IN Diameter, Standard: UL 514B, E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1, For Use With Loc
Manuals & Documentation
| Catalog Number | BU-75 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Locknut To Terminate Rigid Metal Conduit Or IMC To A Box Or Enclosure |
| Connection | Threaded |
| Finish | Zinc Electroplate |
| Material | Malleable Iron |
| Special Features | Provides a smooth pulling surface; Non-grounding |
| Standard | UL 514B, E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1 |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381161602 |
| GTIN | 00781381161602 |
| Item Type | Conduit Bushing |
| Length | 6.5000 |
| Length UOM | Inch |
| Width | 4.7000 |
| Width UOM | Inch |
| Height | 0.0310 |
| Height UOM | Inch |
| Weight | 0.040 |
| Weight UOM | Pounds |
| Size | 3/4 |
