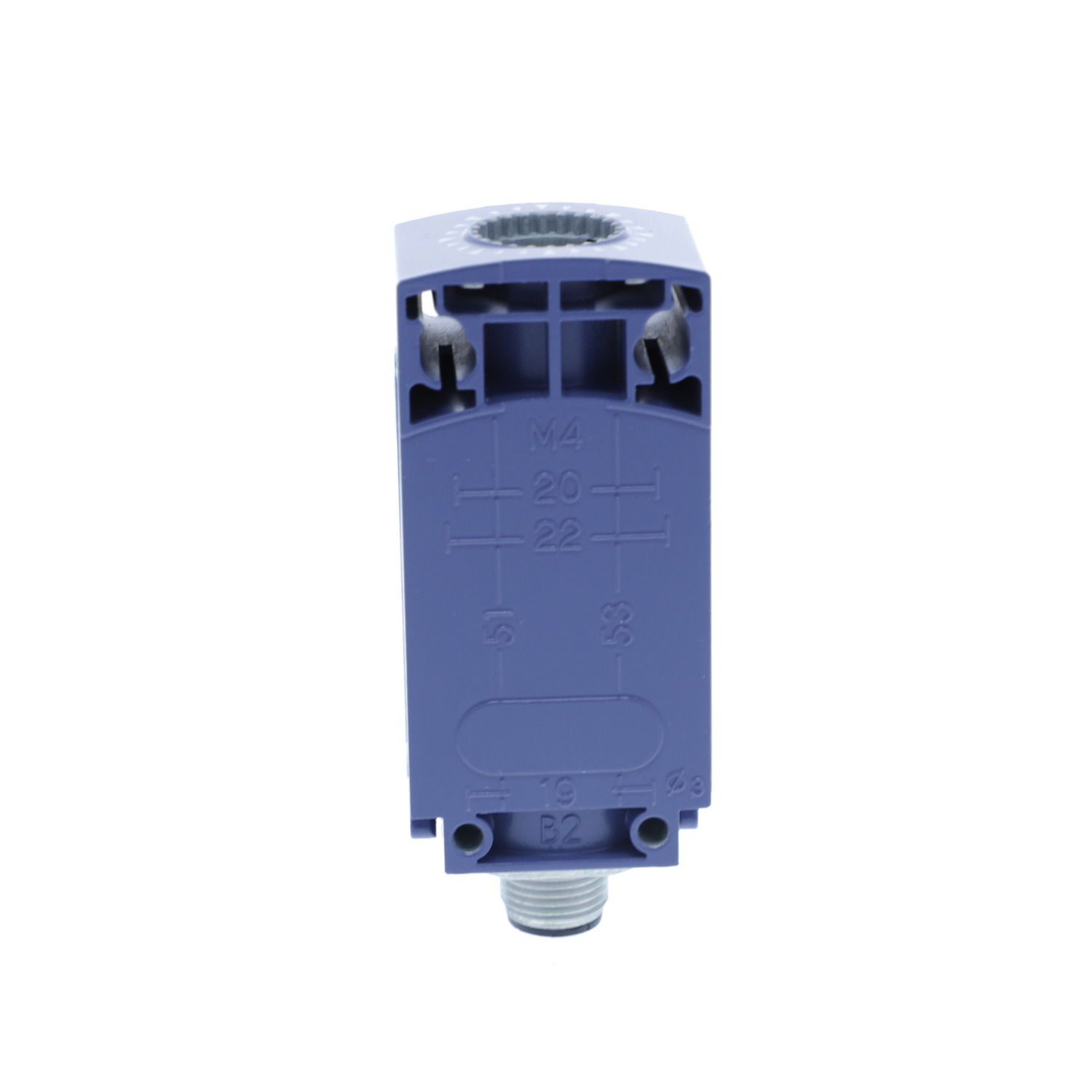

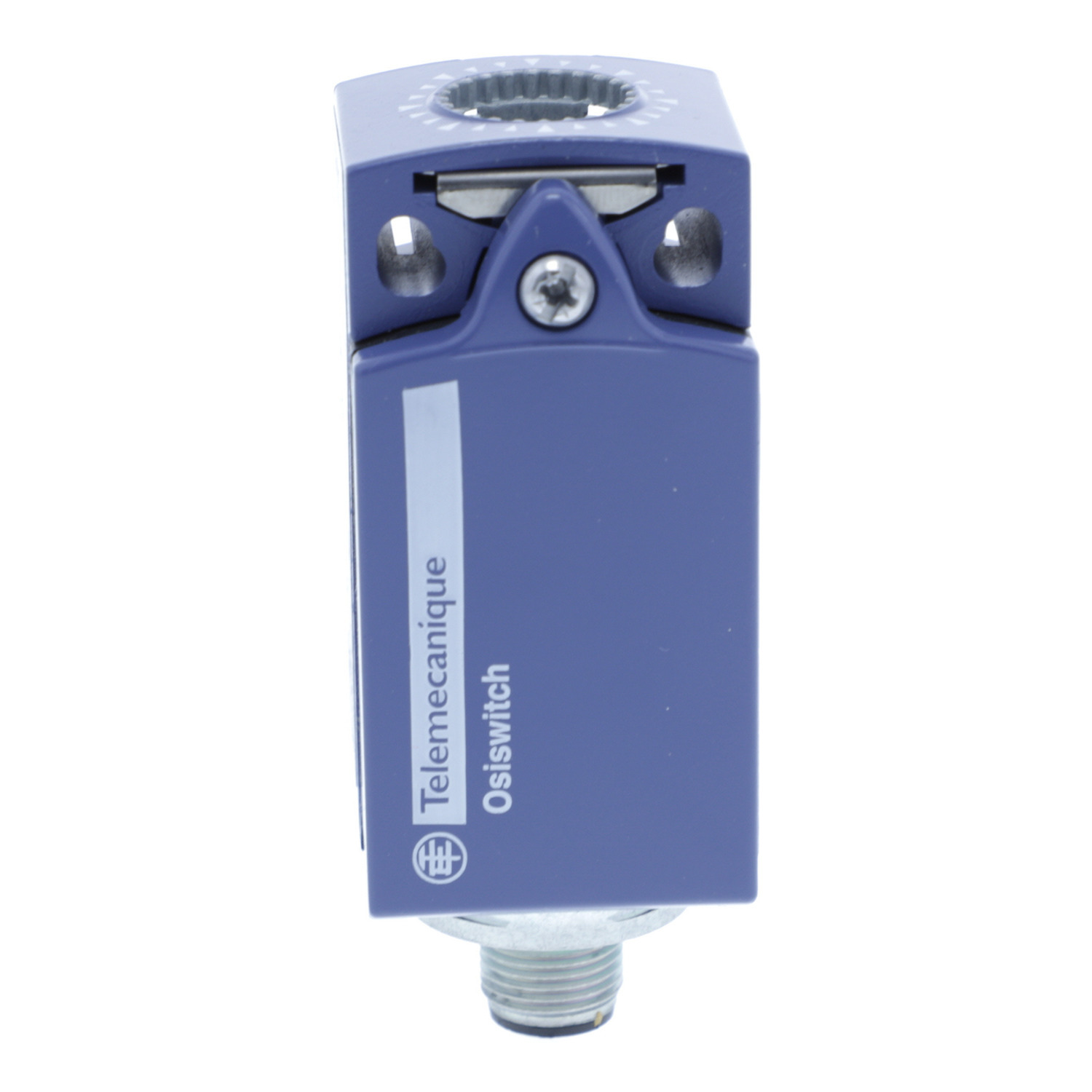

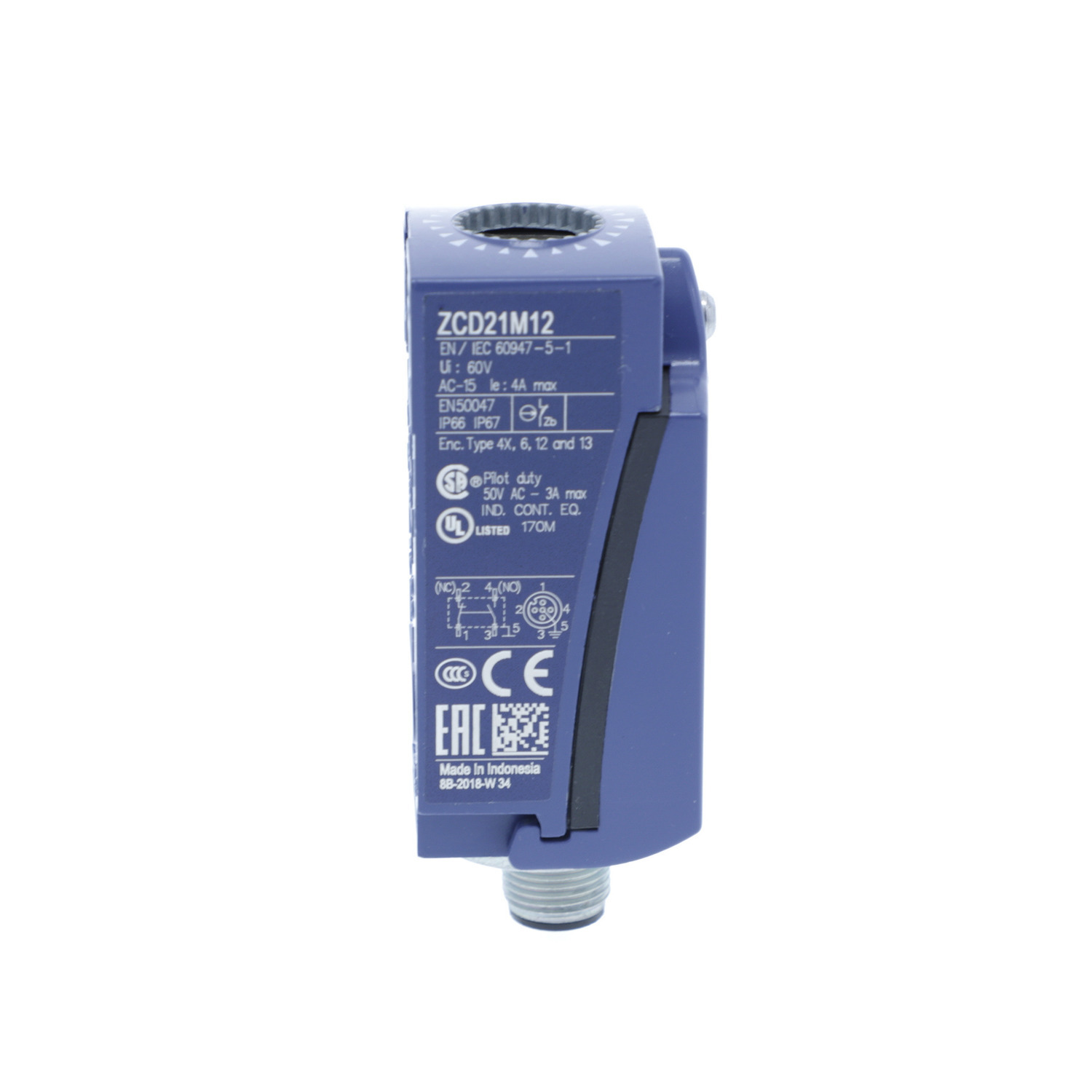

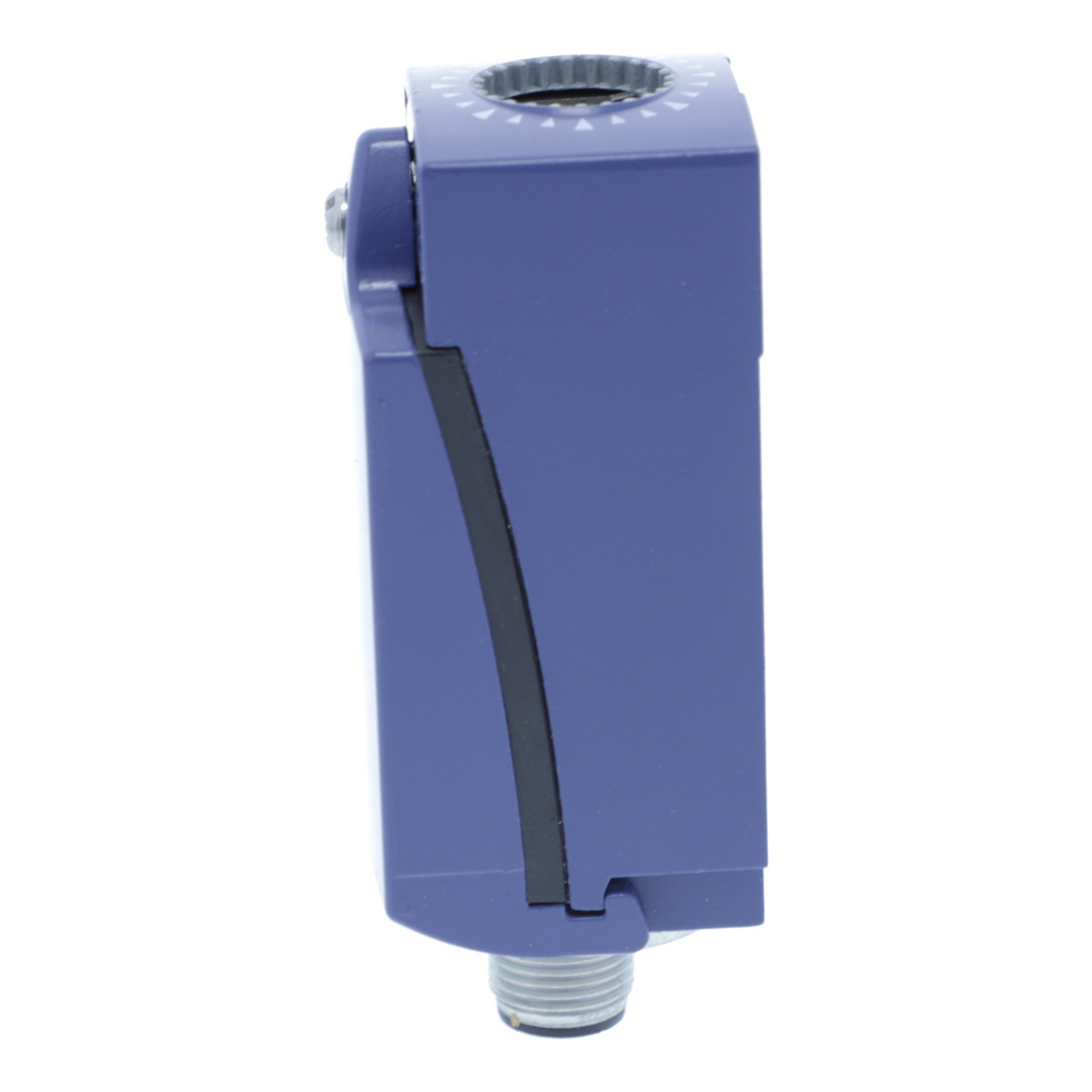

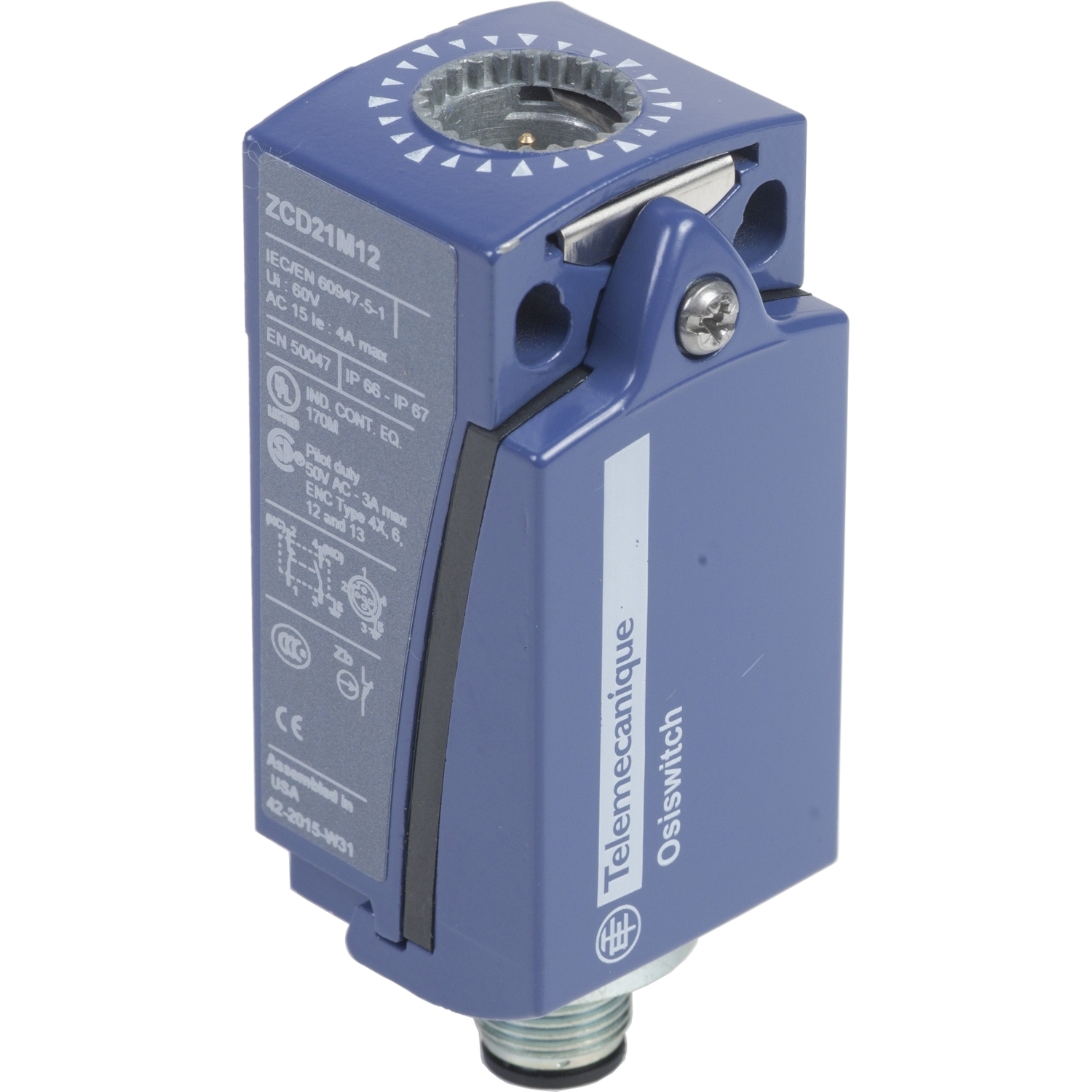

ZCD21M12 ZCD Compact Limit Switch Body, 1NO-1NC Contact, For Use With XCKD and ZCD Series Standard Compact Limit Switch, 4 A at 300/500 V AC Contact
- MFR:
- Telemecanique Sensors
- MFR #:
- ZCD21M12
- UPC:
- 785901914174
- Item #:
- 296890
ZCD21M12 ZCD Compact Limit Switch Body, 1NO-1NC Contact, For Use With XCKD and ZCD Series Standard Compact Limit Switch, 4 A at 300/500 V AC Contact
- MFR #:
- ZCD21M12
- UPC:
- 785901914174
- Item #:
- 296890
This ZCD body/contact assembly with connector has a standard contacts and a Zamak body. It has 1 x NO + 1 x NC snap action contacts and a M12 4-pin connector. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.
Manuals & Documentation
| Catalog Number | ZCD21M12 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | Snap action |
| Amperage Rating | 4 |
| Application | XCKD |
| Connection | Male connector M12, 5 pins |
| Contact Configuration | 1 NC + 1 NO |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED |
| Standard | IEC, UL LISTED, CSA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879088&lang=en-us |
| UPC | 785901914174 |
| GTIN | 03389110190700 |
| Item Type | Limit switch body |
| Size | 1.18 |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 3 A 50 V, AC-15 EN/IEC 60947-5-1 APPENDIX A-0.27 A 50 V, DC-13 EN/IEC 60947-5-1 APPENDIX A |
