SensorSwitch

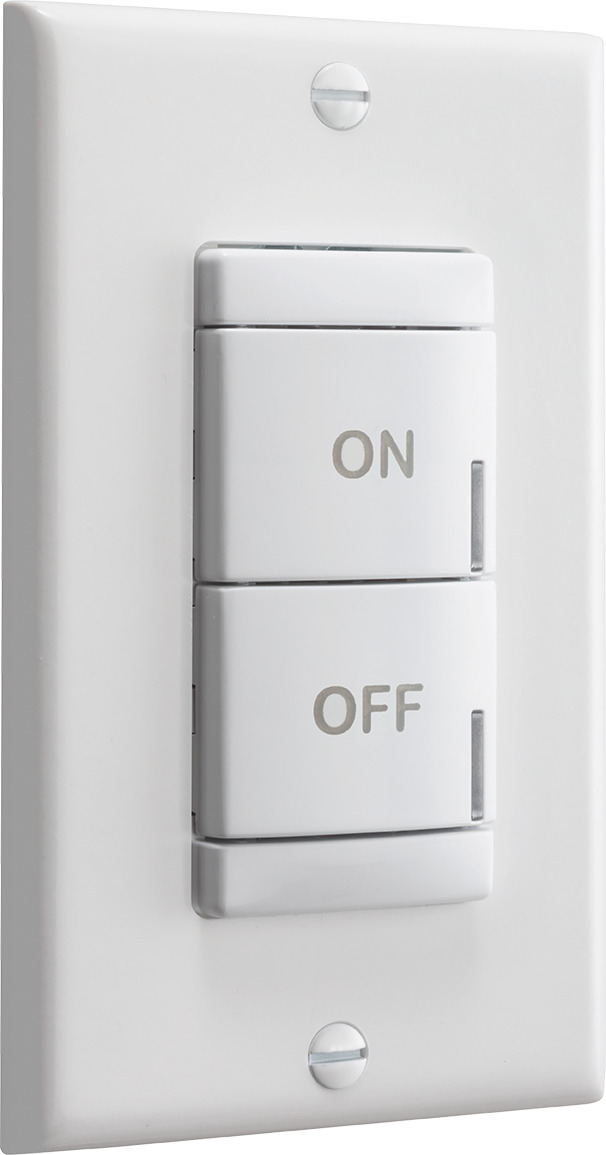

SPODM D WH Low Voltage Standard Pushbutton Switchpod, 12 to 24 V AC/DC, 5 mA, 1 Switches, Dimming Operation, White

MFR:
Acuity Brands
MFR #:
SPODM D WH
UPC:
753573217770
Item #:
295672
Manuals & Documentation
Catalog Number SPODM D WH
Manufacturer Acuity Brands
Brand SensorSwitch
Warranty Description 5 Year Limited. Warranty varies by product. See warranty information at: www.acuitybrands.com/resources/terms-and-conditions
Country of Origin Mexico
Made in USA No
Application Education,Government,Healthcare,Hospitality,House of Worship,Manufacturing,Offices & Banks,Retail,Sports and Recreation,Warehouses
Color White
Mounting Surface
Special Features The Push-Button SwitchPod (sPODM) Series of low voltage wall stations interface with standard Sensor Switch occupancy sensors and power packs in order to implement a wide range of single and bi-level switching applications. These switch devices provide an elegant and cost effective way of deploying bi-level lighting control that meet energy and building codes without having to source special sensors or power packs. Commonly required by building codes (such as California Title 24), bi-level lighting control is an easy and convenient method of delivering extra energy savings without inconveniencing the occupants. The most common bi-level configuration requires one lighting load to be switched on automatically when occupancy is detected by an occupancy sensor, while a second lighting load can be turned on manually by the occupant if desired. Both loads can then be turned off manually or via the occupancy sensor timing out. Sensors with photocells can also be configured with SwitchPods in order to add override off capabilities.
Supply Voltage Low Voltage
UPC 753573217770
GTIN 00753573217770
Item Type Wallstation
Environmental Conditions Indoor
