Telemecanique

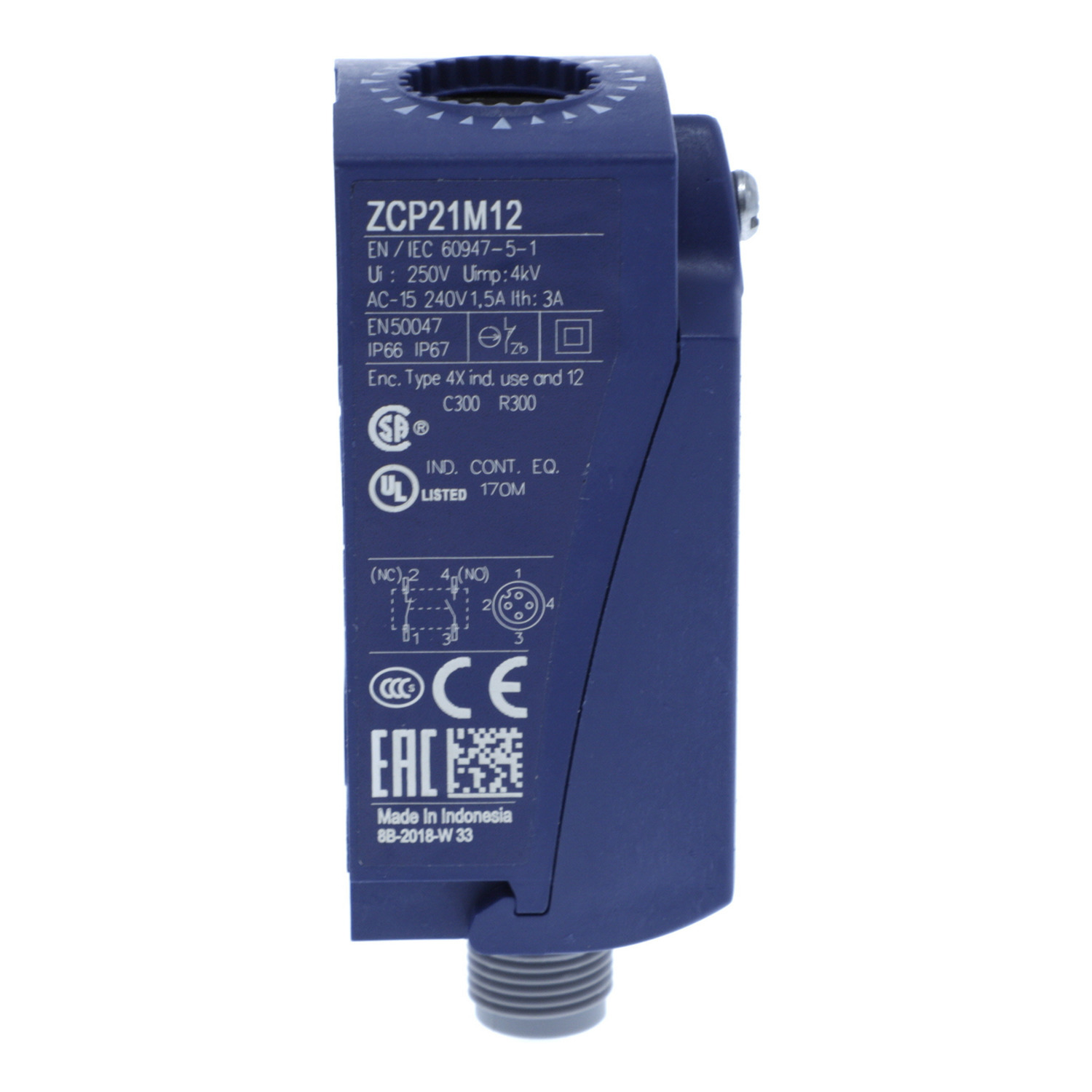

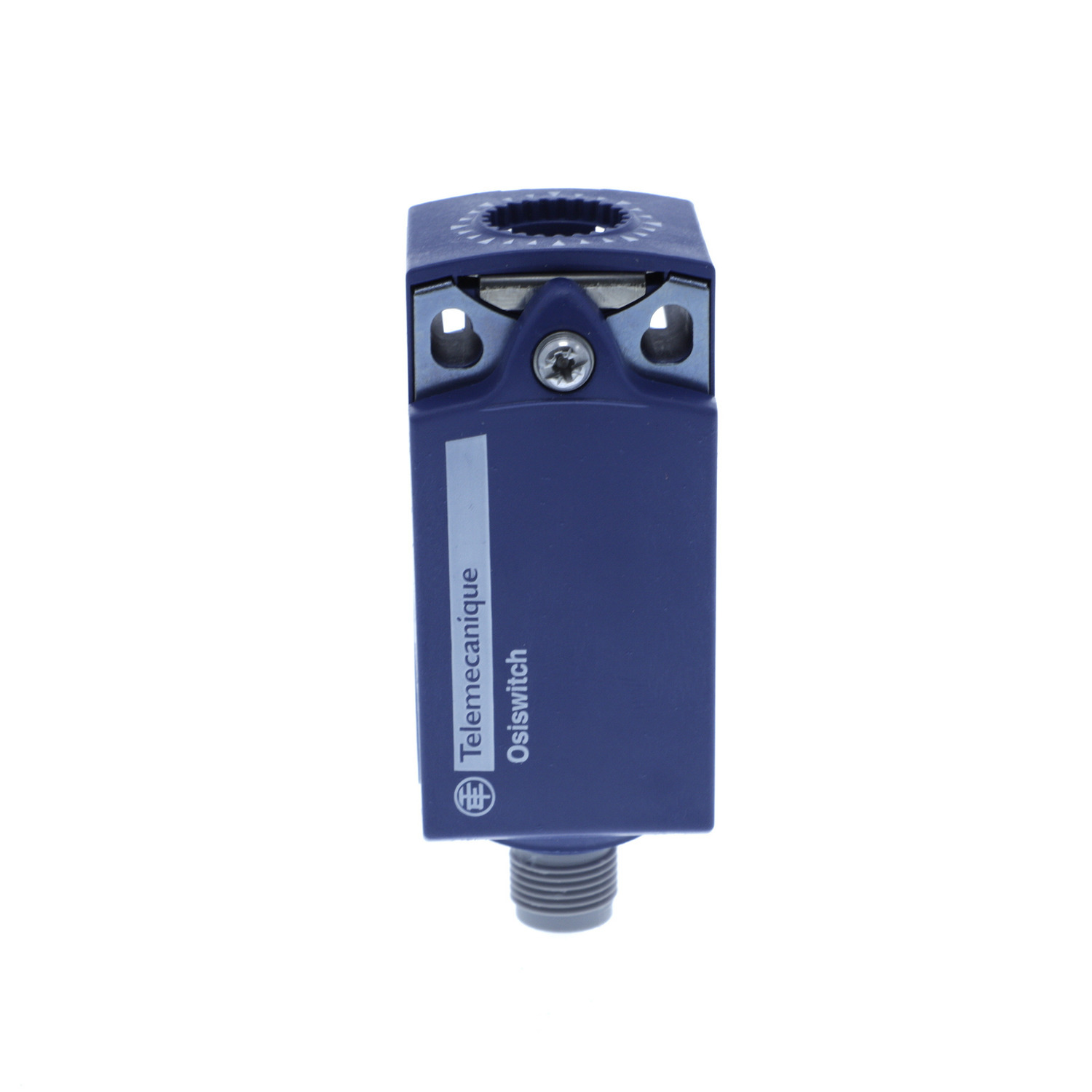

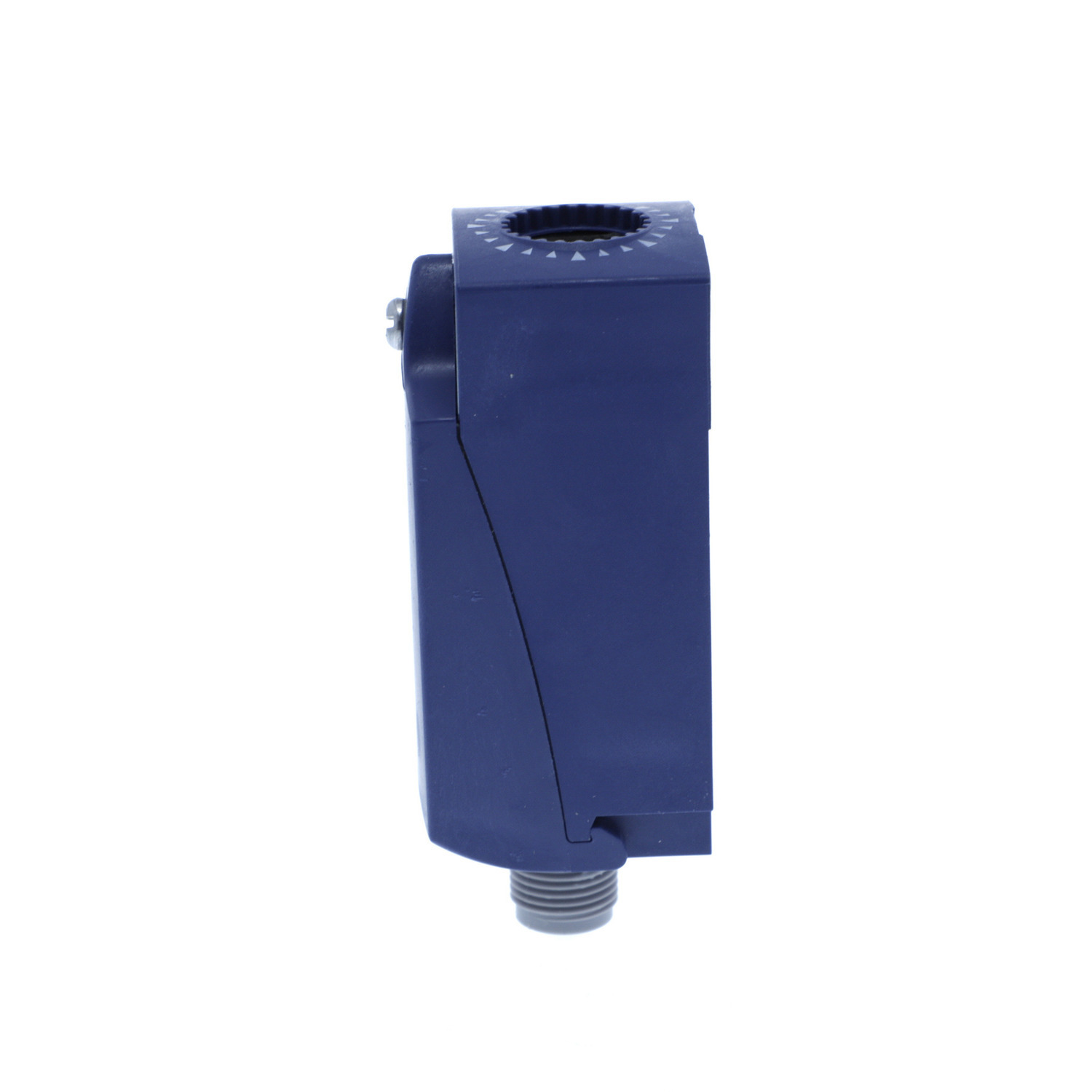

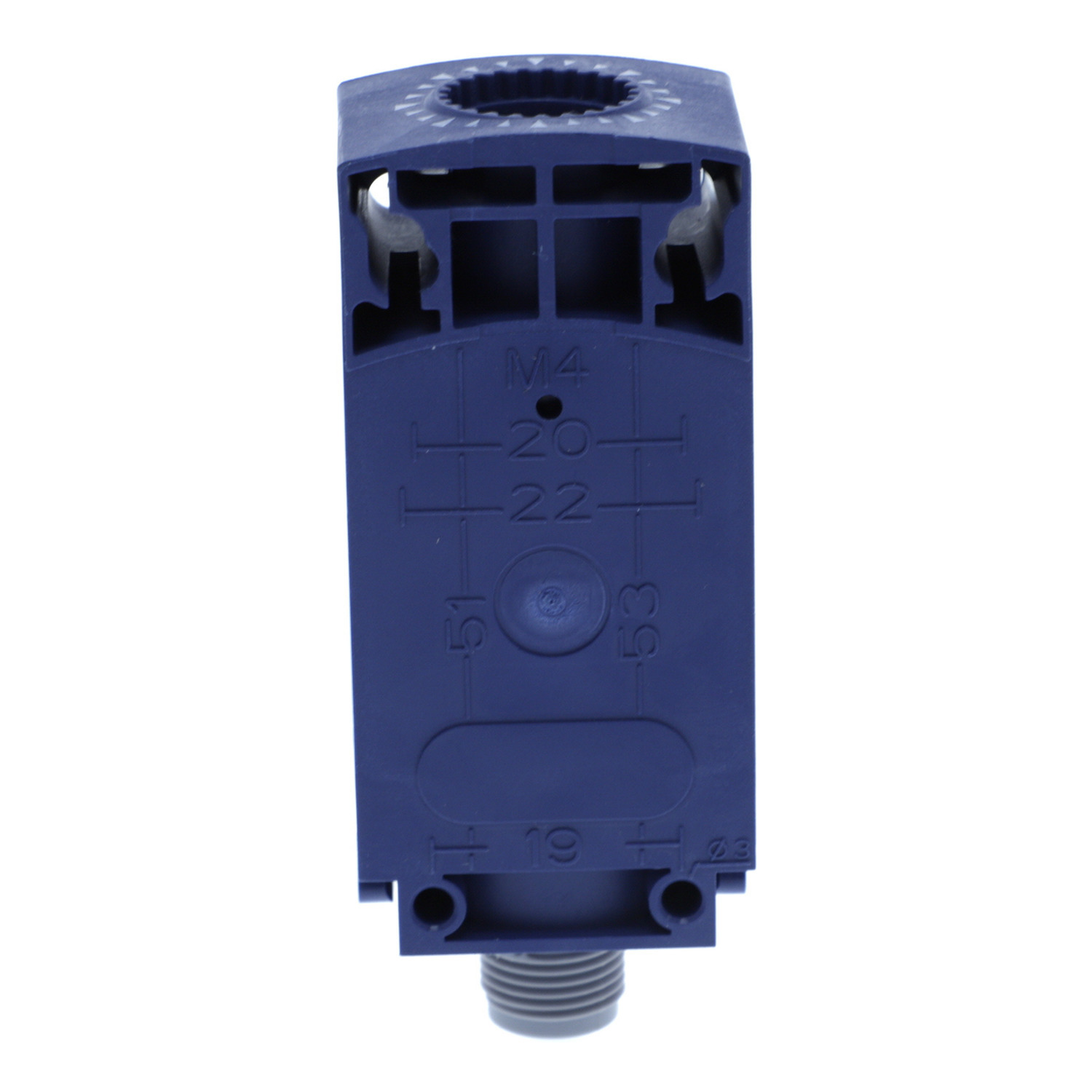

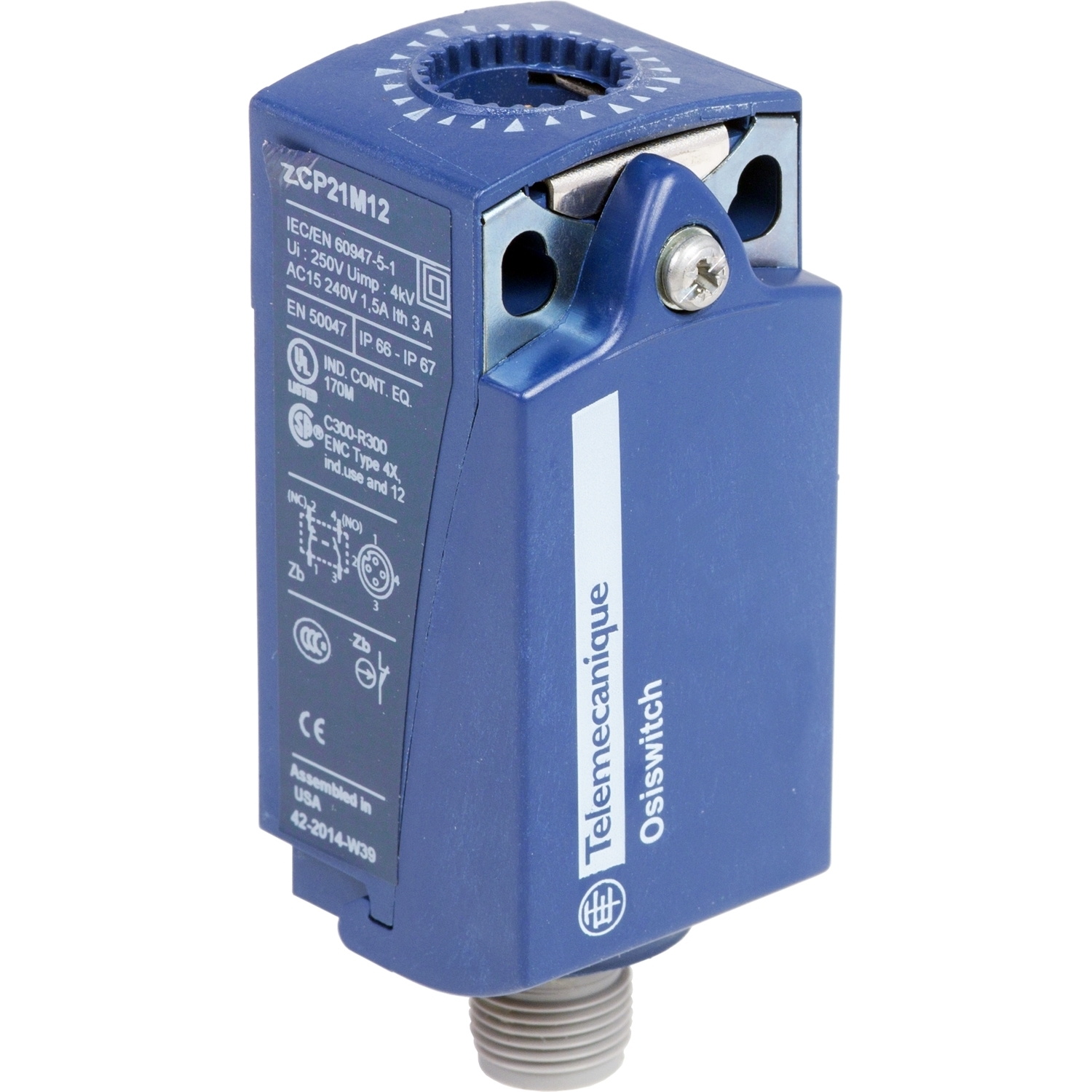

ZCP21M12 OsiSense 2-Pole Fixed Limit Switch Body With Positive Opening, 1NO-1NC Contact, For Use With XCKP Standard Compact Limit Switch, 1.5 A at 240 V AC, 0.1 A at 250 V DC Contact

MFR:
Telemecanique Sensors
MFR #:
ZCP21M12
UPC:
785901516538
Item #:
29451

This ZCP body/contact assembly with connector has standard contacts and a plastic body. It has 1 x NO + 1 x NC snap action contacts and a M12 4-pin connector. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.

Manuals & Documentation
Catalog Number ZCP21M12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Action Snap action
Amperage Rating 3
Application XCKP
Connection Male connector M12, 4 pins
Contact Configuration 1 NC + 1 NO
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IEC, UL LISTED, CSA
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880394&lang=en-us
UPC 785901516538
GTIN 03389110183962
Item Type Limit switch body
Size 30 MM,31 MM,65-65 MM
Operating Temperature -25-70 A Degrees C
Voltage Rating 3 A 240 V, AC-15 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13 EN/IEC 60947-5-1 APPENDIX A
