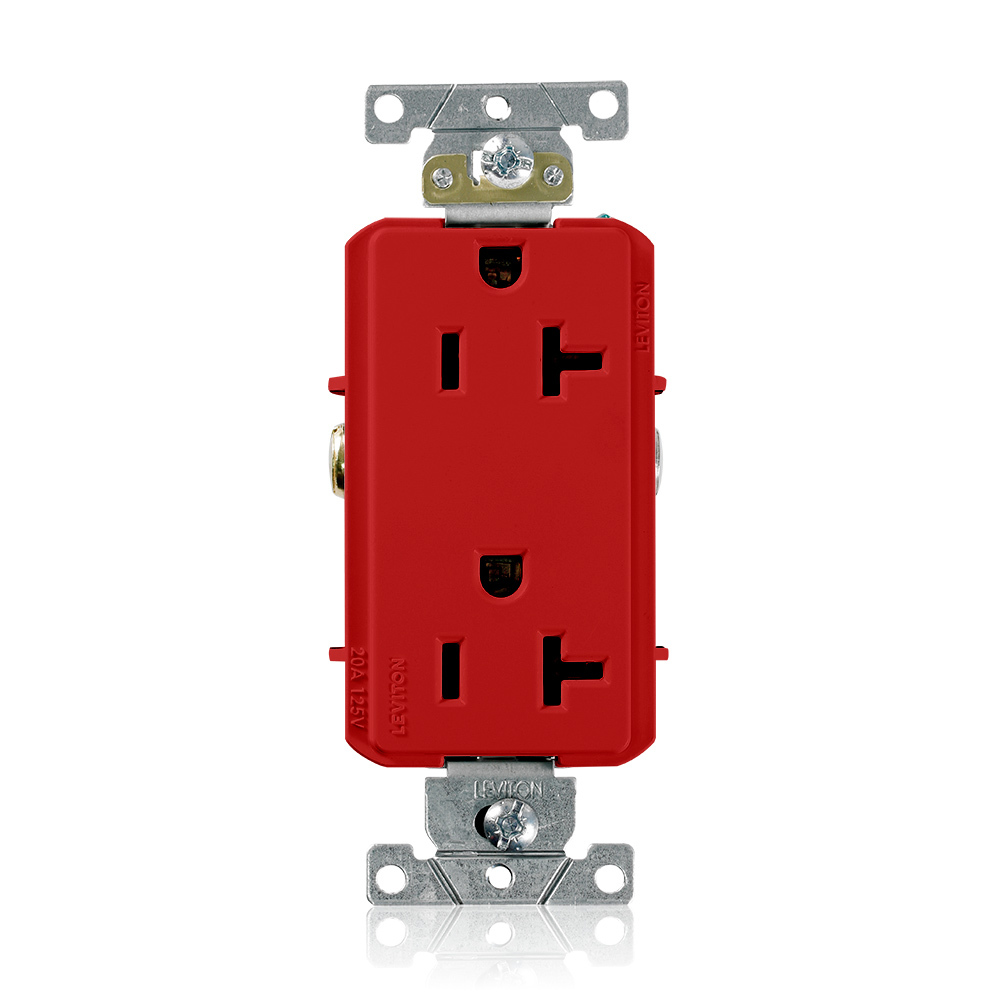

16352-R Decora Plus Heavy Duty Self Grounding Straight Blade Duplex Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Red
- MFR:
- Leviton
- MFR #:
- 16352-R
- UPC:
- 078477663097
- Item #:
- 294279
16352-R Decora Plus Heavy Duty Self Grounding Straight Blade Duplex Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Red
- MFR #:
- 16352-R
- UPC:
- 078477663097
- Item #:
- 294279
| Catalog Number | 16352-R |
| Manufacturer | Leviton |
| Brand | Leviton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Commercial |
| Color | Red |
| Connection | Back and Side Wired |
| Mounting | Wall |
| Special Features | Self Grounding, 10-Year Limited Warranty |
| Standard | NEMA (WD-6);ANSI (C-73);NOM Certified (057);CSA Certified (File 152105);UL Listed (File E-13393);UL Listed 498 |
| UPC | 078477663097 |
| GTIN | 00078477663097 |
| Item Type | Straight Blade;Duplex Outlet |
| Depth UOM | Inch |
| Size | 46 H x 1.31 W x 1.14 D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| Temperature Rating | -40 to +60 DEG C |
| Voltage Rating | 125 |
| Wire Size | 14-10 AWG |
| Cross Reference Products | DR20R |
