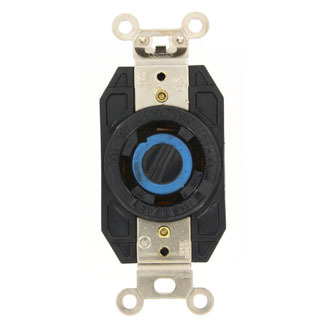

2750 3-Phase Y Non-Grounding Locking Receptacle, 120/208 V AC, 30 A, 4 Poles, 4 Wires, Black
- MFR:
- Leviton
- MFR #:
- 2750
- UPC:
- 078477045923
- Item #:
- 294189
2750 3-Phase Y Non-Grounding Locking Receptacle, 120/208 V AC, 30 A, 4 Poles, 4 Wires, Black
- MFR #:
- 2750
- UPC:
- 078477045923
- Item #:
- 294189
| Catalog Number | 2750 |
| Manufacturer | Leviton |
| Brand | Leviton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 30 |
| Application | Industrial |
| Color | Black |
| Connection | Back Wired;Side Wired |
| Material | PBT |
| Mounting | Box |
| Number of Poles | 4 |
| Number of Wires | 4 |
| Phase | 3 |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No.42;UL Fed Spec WC-596 (File E13399);UL Listed 498 |
| UPC | 078477045923 |
| GTIN | 00078477045923 |
| Item Type | Flush Mount Locking Receptacle |
| Depth UOM | Inch |
| Size | 3.63 H x 1.69 W x 1.31 D |
| Environmental Conditions | Flammability (Rated V-2, Rated V-0 per UL94) |
| Temperature Rating | -40 to +60 DEG C |
| Voltage Rating | 120;208 |
| Wire Size | 14-8 AWG |
