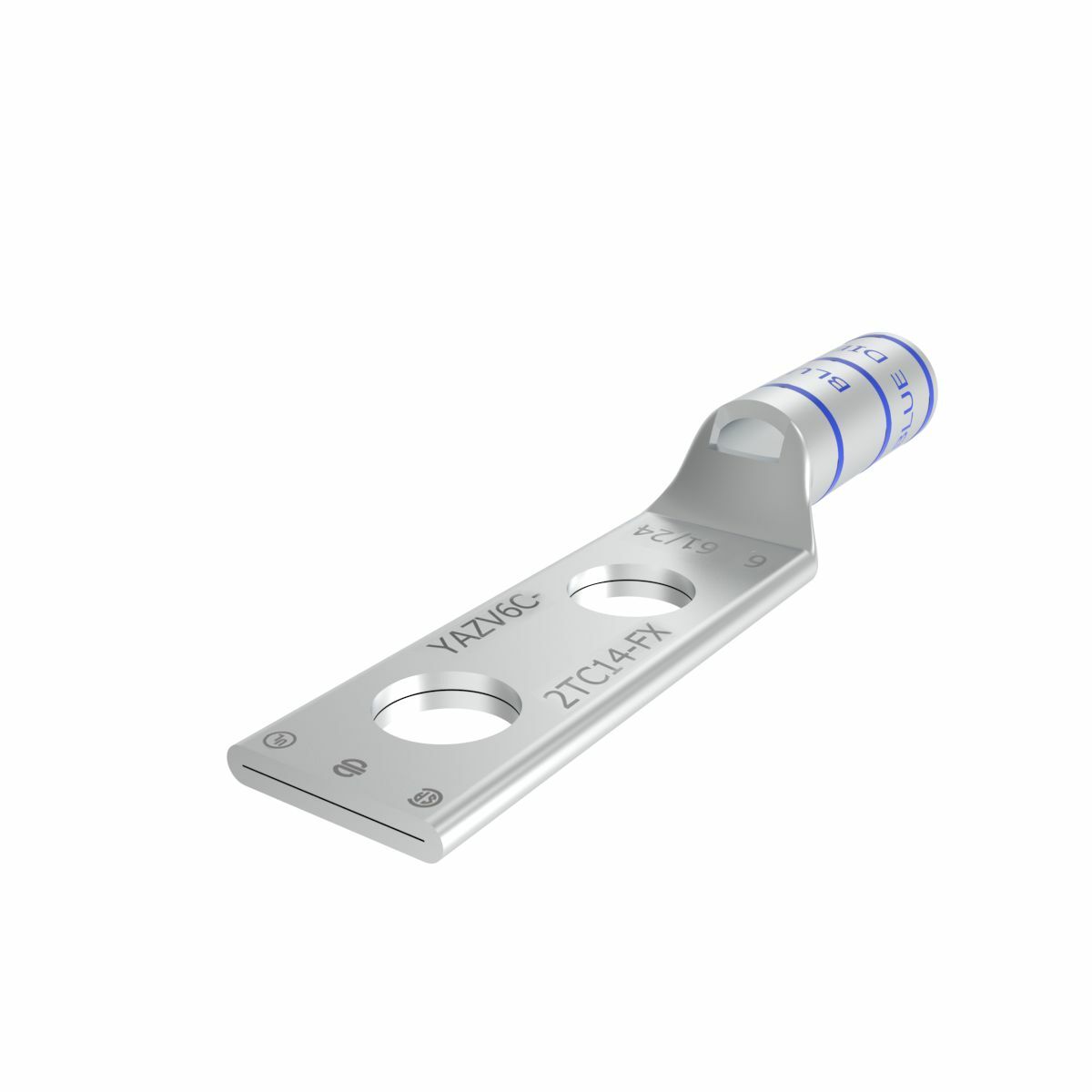

YAZV6C2TC14FX YAZ-2TC-FX 2-Hole Compression Lug With Inspection Window, 6 AWG Flexible/Stranded Copper Conductor, Die Code: 7/374, 1/4 in Stud, Tin Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YAZV6C2TC14FX
- UPC:
- 781810223352
- Item #:
- 294139
YAZV6C2TC14FX YAZ-2TC-FX 2-Hole Compression Lug With Inspection Window, 6 AWG Flexible/Stranded Copper Conductor, Die Code: 7/374, 1/4 in Stud, Tin Plated Copper
- MFR #:
- YAZV6C2TC14FX
- UPC:
- 781810223352
- Item #:
- 294139
Manuals & Documentation
| Catalog Number | YAZV6C2TC14FX |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Finish: Electro-Tin Plated, Wire Strip Length: 1-3/16 IN, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Die Index: 7, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W5CVT, W5CRT, X5CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W5CVT, W5CRT, X5CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U5CRT Die, (2), Y46 Tool, U5CRT Die With PUADP-1 Adapter, (2), Color Code: Blue, Conductor Type: Flexible, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Y1MRTC, MY29-11 Tool, (2) |
| Standard | UL 486A-486B |
| UPC | 781810223352 |
| GTIN | 00781810223352 |
| Item Type | Long Barrel, Skive |
| Voltage Rating | 35 |
