SQUARE D

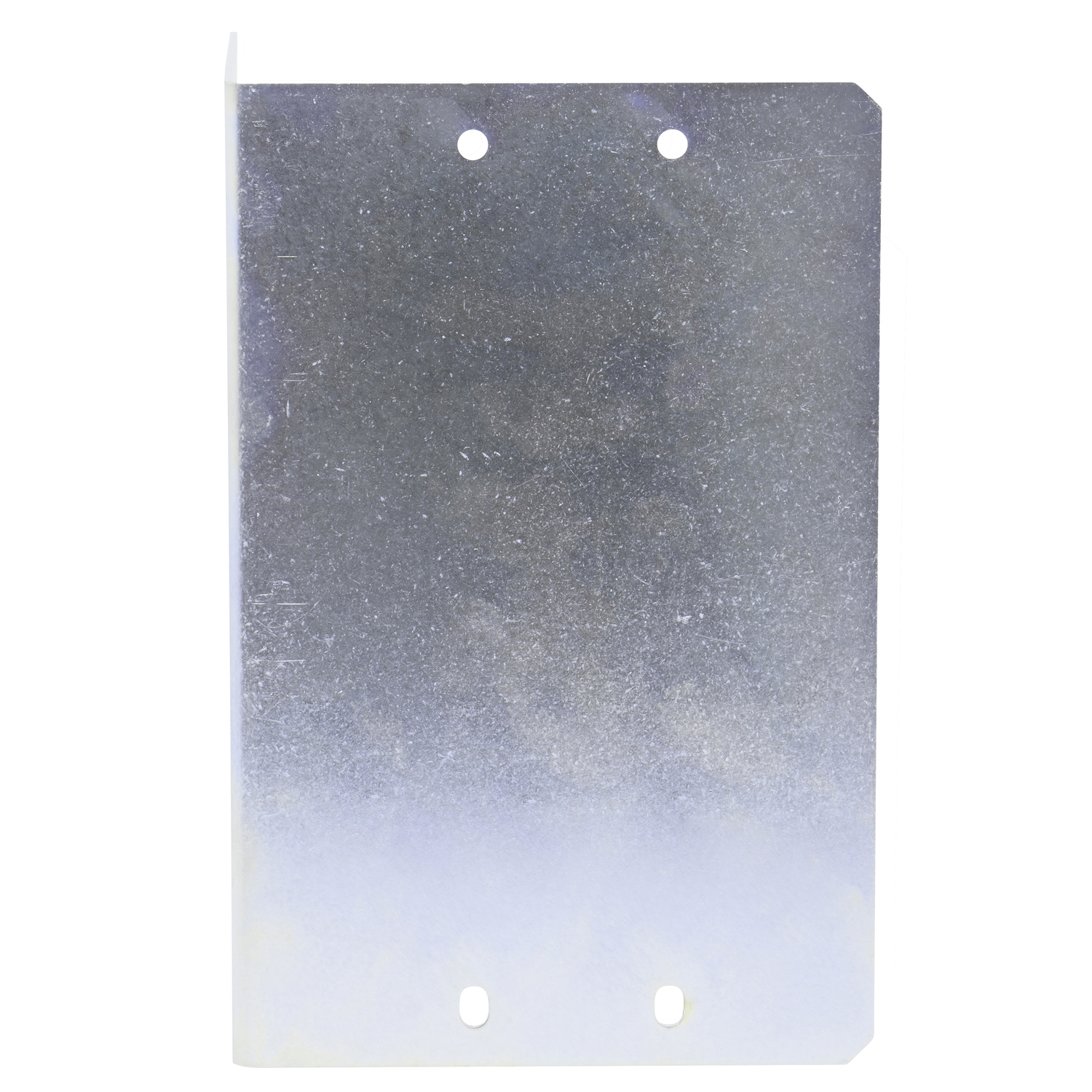

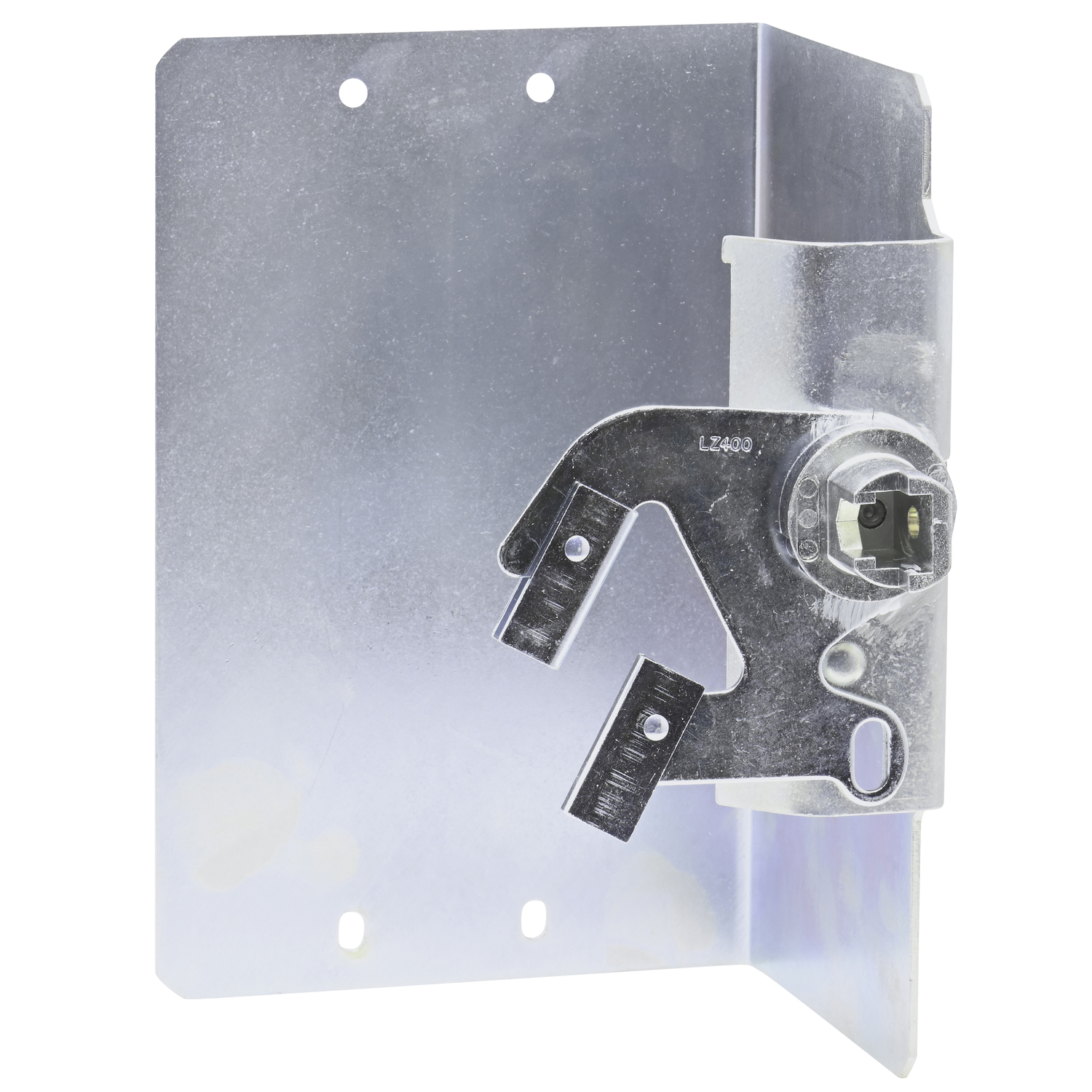

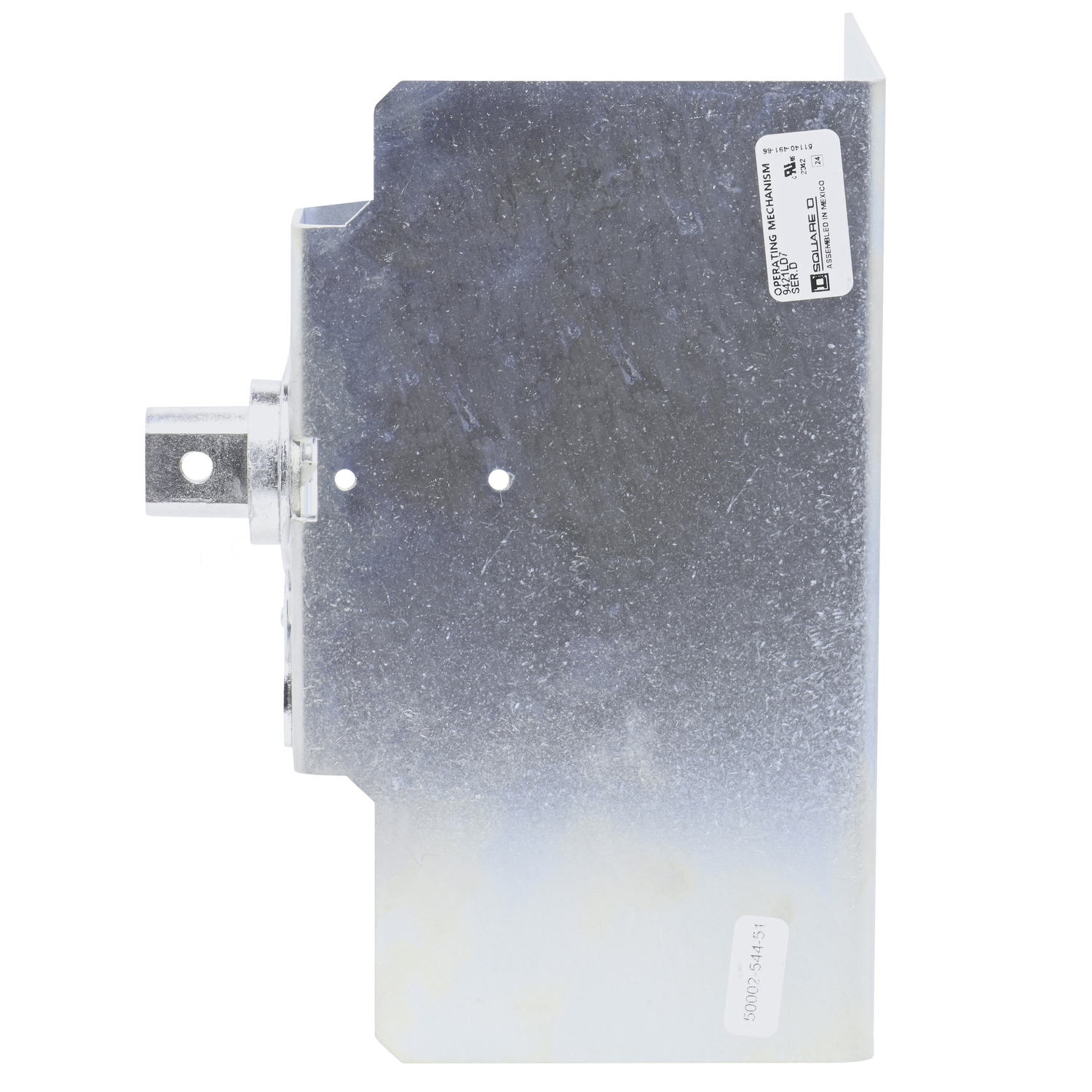

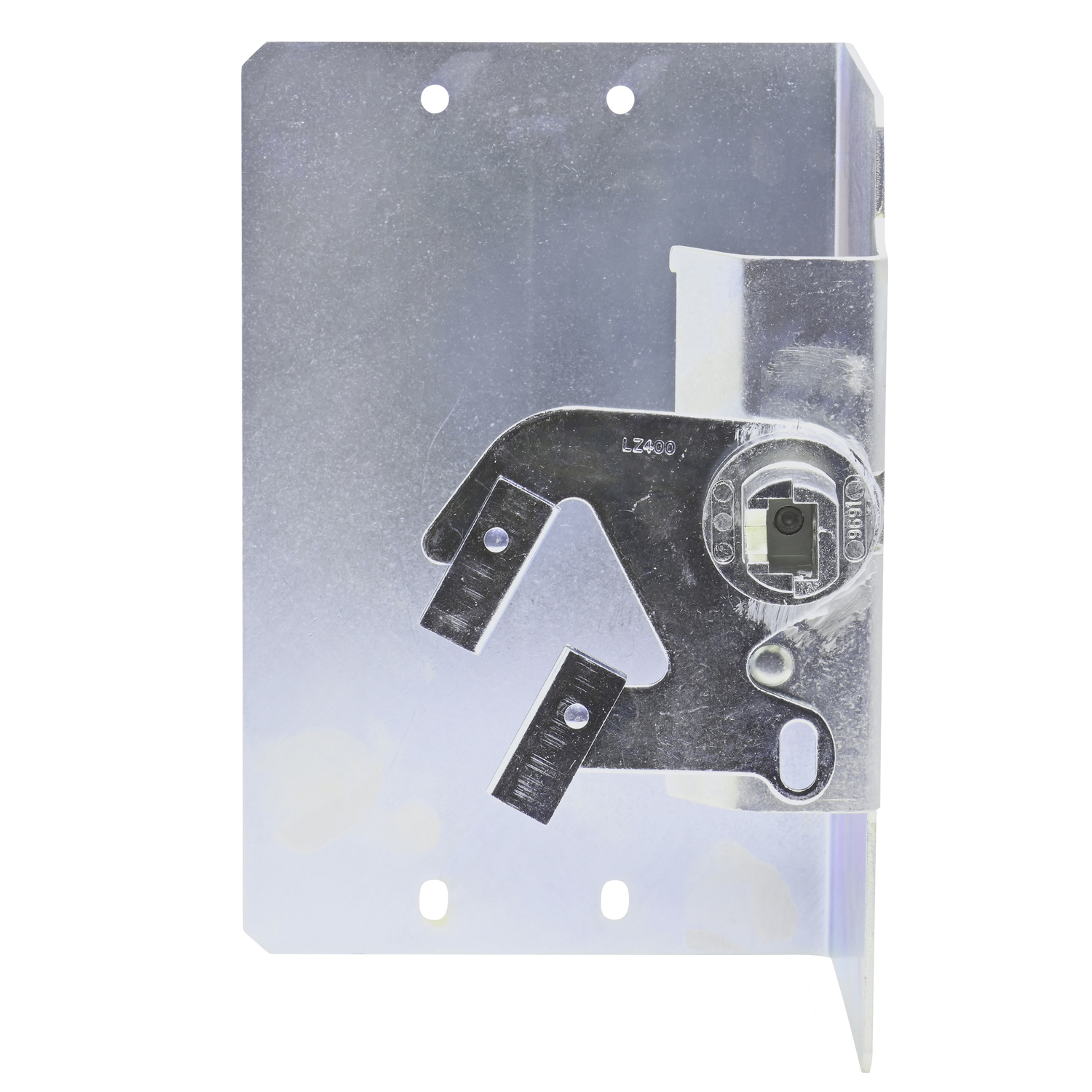

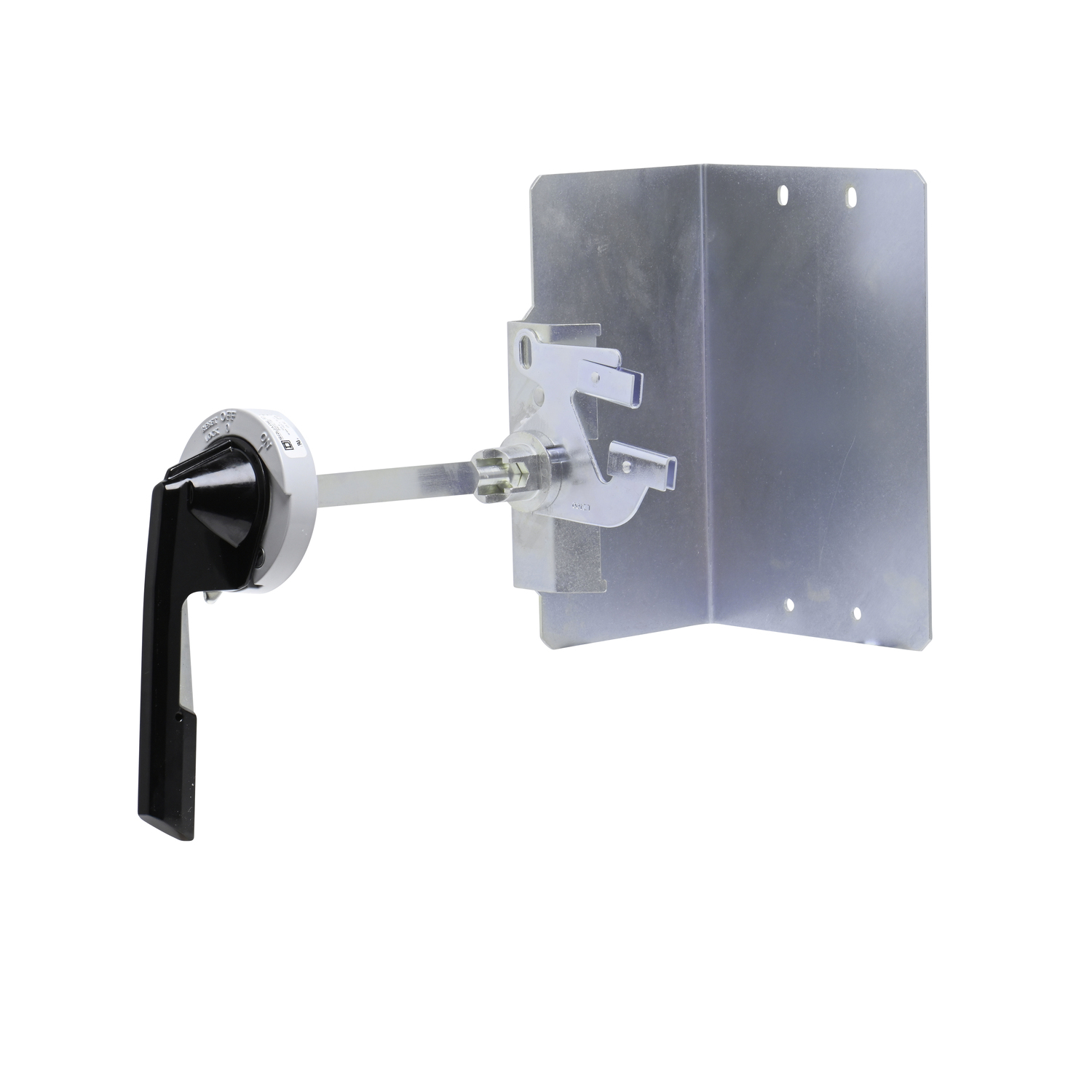

9421LD1 Type L Standard Shaft Variable Depth Circuit Breaker Operating Mechanism, NEMA 1/3R/12 NEMA Rating, Rotary Handle Handle/Operation, For Use With PowerPact 600 A 3-Pole D and L Frame Circuit Breaker

MFR:
Schneider Electric
MFR #:
9421LD1
UPC:
785901947462
Item #:
293880

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism will work with PowerPacT D and PowerPacT L circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 600A. Proper circuit breaker must be ordered separately. Kit contains a 6 inch long handle that is rated NEMA 1/3R/12. The kit contains a standard shaft. The mounting depth of this kit is 7.25 to 12.06 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Mechanism is UL Component Recognized and CSA certified.

Manuals & Documentation
Catalog Number 9421LD1
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Application PowerPact D circuit breaker 600 A;PowerPact L circuit breaker 600 A
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=565397&lang=en-us
UPC 785901947462
GTIN 00785901947462
Item Type Circuit Breaker Mechanism
Length 6.0
Length UOM Inch
