9001BR204 Harmony Complete Type BR Control Station, 600 V AC, 5 A, 1NO-1NC Contact, 2 Operators, NEMA 7/9 NEMA Rating
- MFR:
- Schneider Electric
- MFR #:
- 9001BR204
- UPC:
- 785901600886
- Item #:
- 29370
9001BR204 Harmony Complete Type BR Control Station, 600 V AC, 5 A, 1NO-1NC Contact, 2 Operators, NEMA 7/9 NEMA Rating
- MFR #:
- 9001BR204
- UPC:
- 785901600886
- Item #:
- 29370

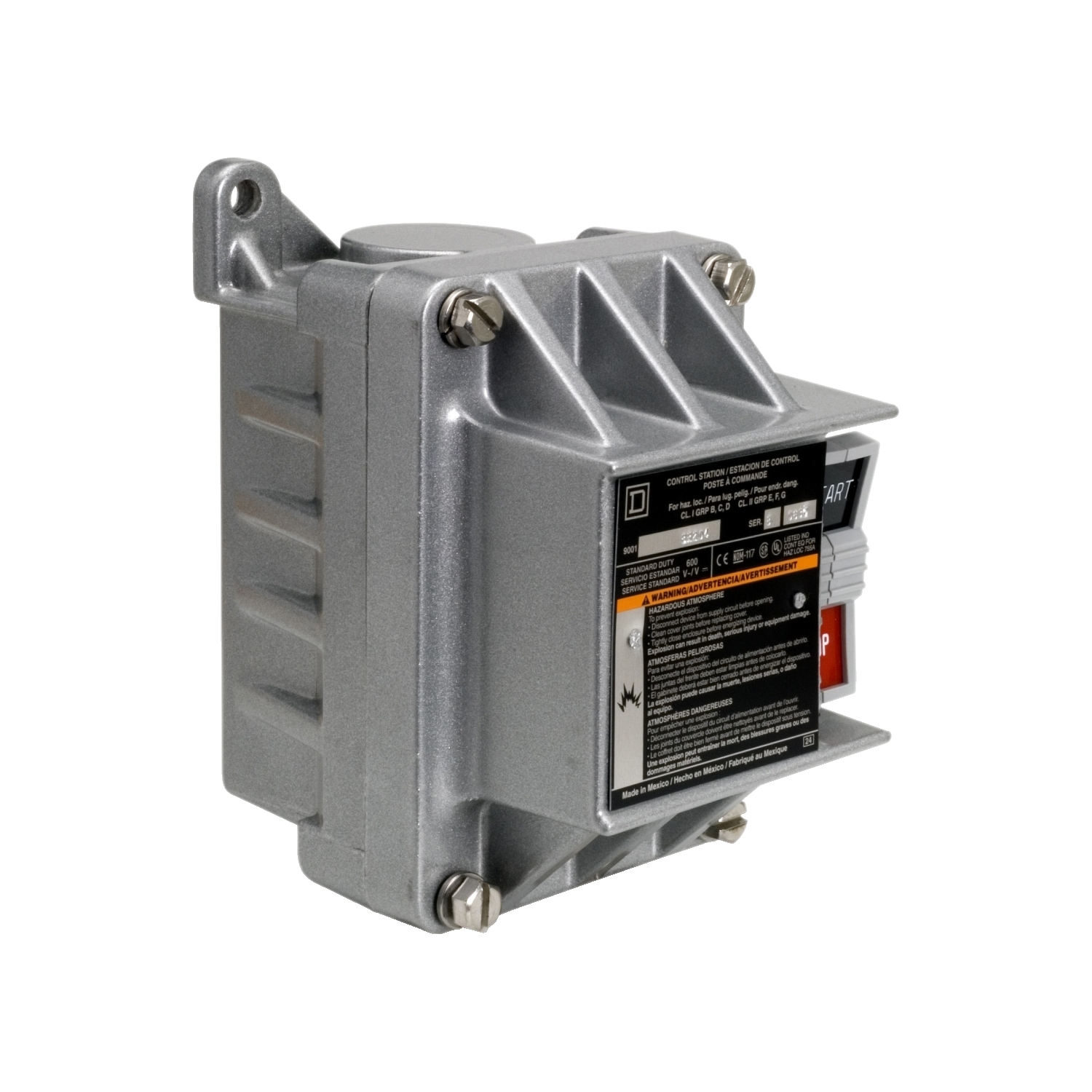

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has a external toggle to operate the two momentary push buttons inside. It has a START push button with a normally open contact. It has a STOP push button with a normally closed contact. The STOP push button has a lockout on it. This NEMA 7/9 hazardous location control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
Manuals & Documentation
| Catalog Number | 9001BR204 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=460137&lang=en-us |
| UPC | 785901600886 |
| GTIN | 00785901600886 |
