Appleton

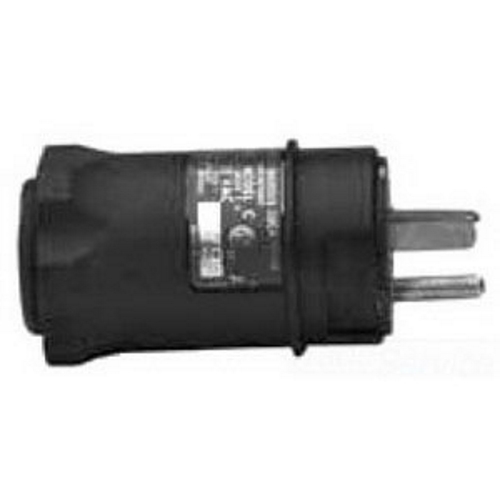

U-Line; Plug Assembly; 125 Volt AC, 15 Amp, 3-Pole, 2 Wire, NEMA 5-15R, 5-20R, or 6-20R

MFR:
Appleton Electric
MFR #:
NCP1523
UPC:
781381503877
Item #:
293669

Appleton U-Line NCP Plug, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 15 AMP, Voltage Rating: 125 VAC, Material: 30 PCT Glass-Reinforced Thermoplastic Polyester, Nema Rating: NEMA 7BCD, 9G, Plug Cable Diameter: 0.538 - 0.639 IN, Dimen

Manuals & Documentation
Catalog Number NCP1523
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 15
Application Fits Any Standard Non-Explosionproof Receptacle As Well As U-Line Explosionproof Receptacles
Material 30 PCT Glass-Reinforced Thermoplastic Polyester
Number of Poles 3
Number of Wires 2
Special Features Explosionproof, dust-ignitionproof; Ideal where moisture or corrosion is a constant problem, such as production facilities on marine platforms and pipeline transportation facilities; Unique blade-type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; Longer plug housing for better gripping and easier plug insertion and withdrawal; Plugs fits any standard non-explosionproof receptacle (NEMA 5-15R, 5-20R or 6-20R) as well as U-Line explosionproof receptacles; Special neoprene watertight plug bushing accommodates flexible cord ranging from 0.538 - 0.639 IN diameter
Standard Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Group G and Coal Dust; Class III
UPC 781381503877
GTIN 00781381503877
Item Type NCP Plug
Voltage Rating 125
