Telemecanique

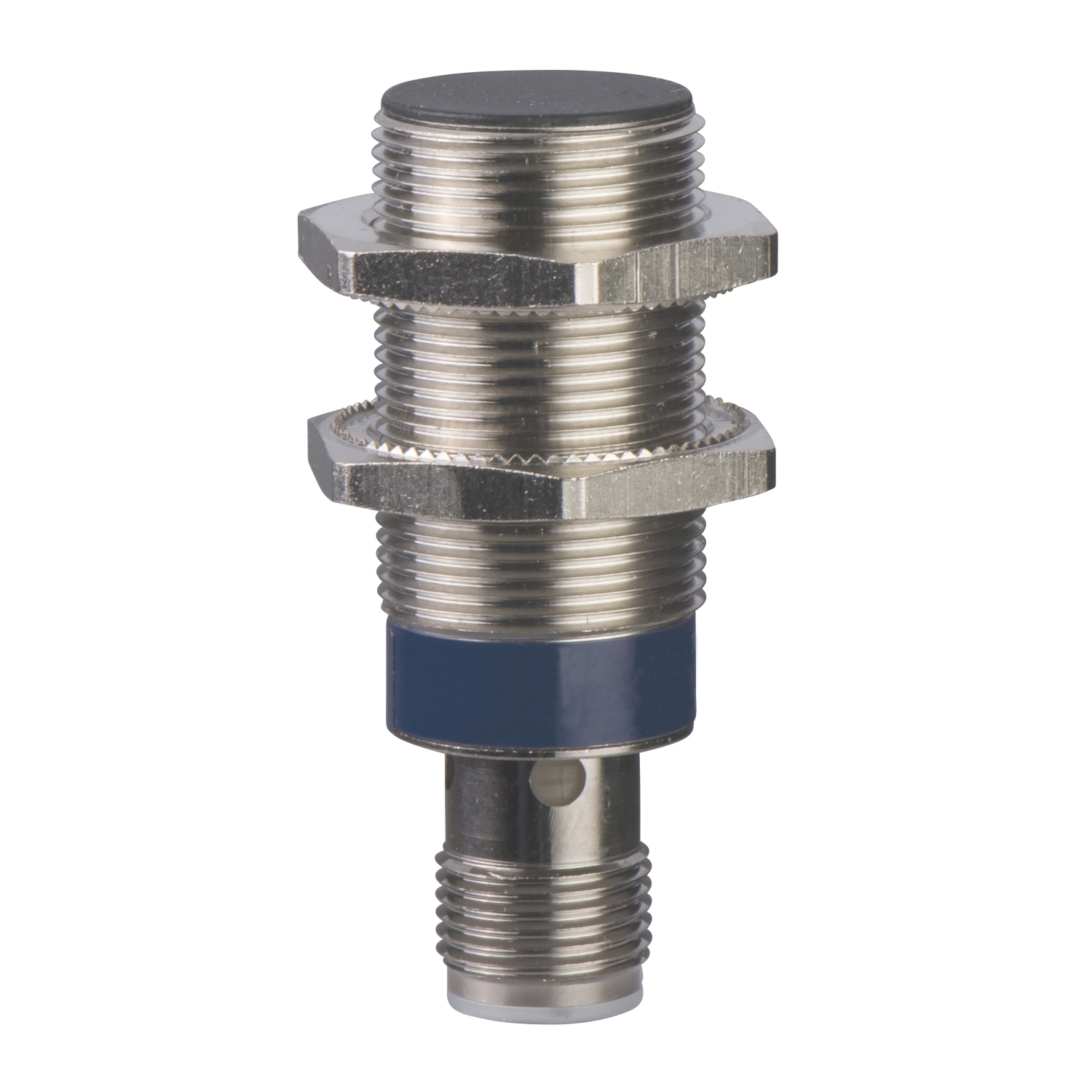

XS518B1PBM12 OsiSense XS5 Series Cylindrical Fixed Form Proximity Sensor, Inductive, PNP/Discrete Output, 12 to 24 V DC

MFR:
Telemecanique Sensors
MFR #:
XS518B1PBM12
UPC:
785901234890
Item #:
293331

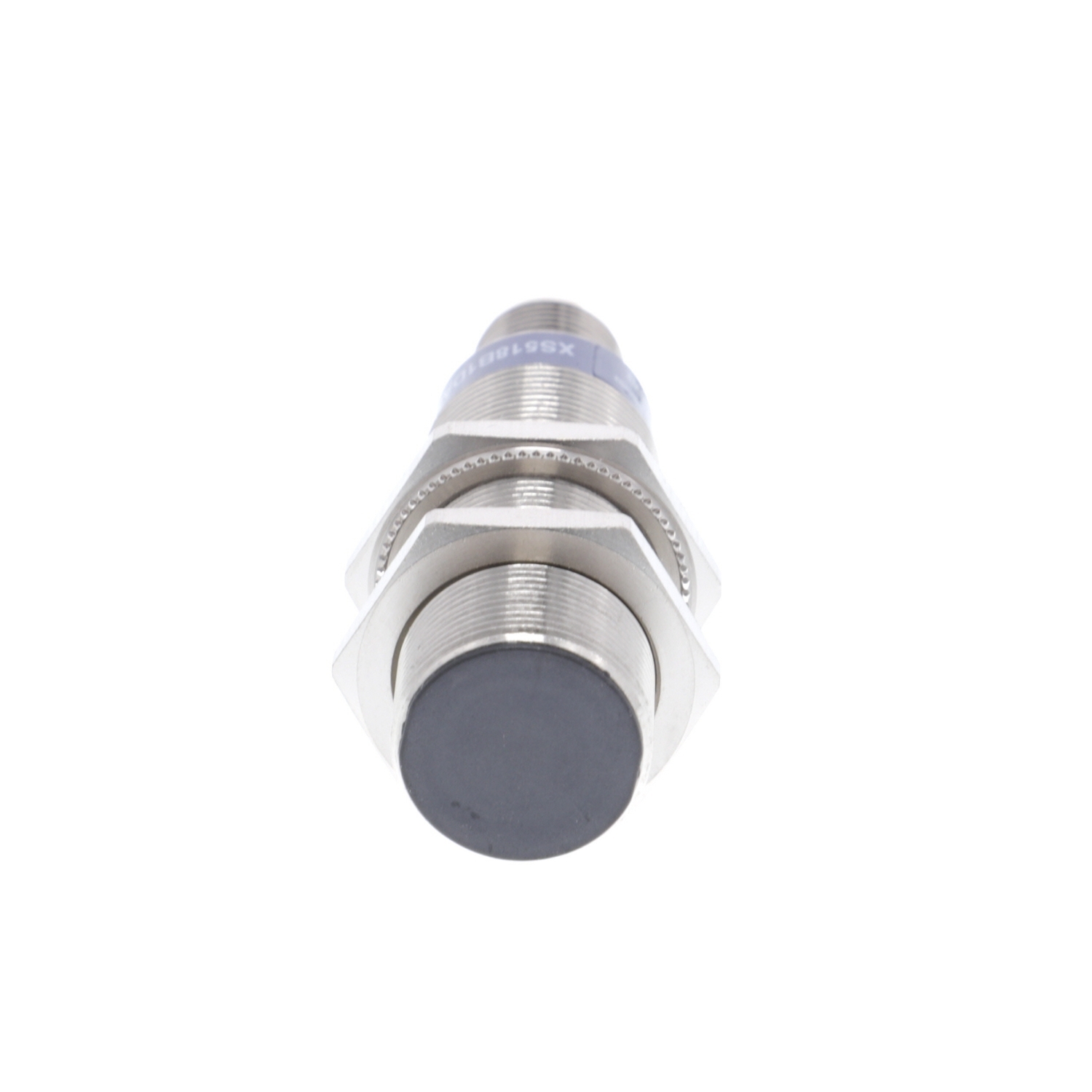

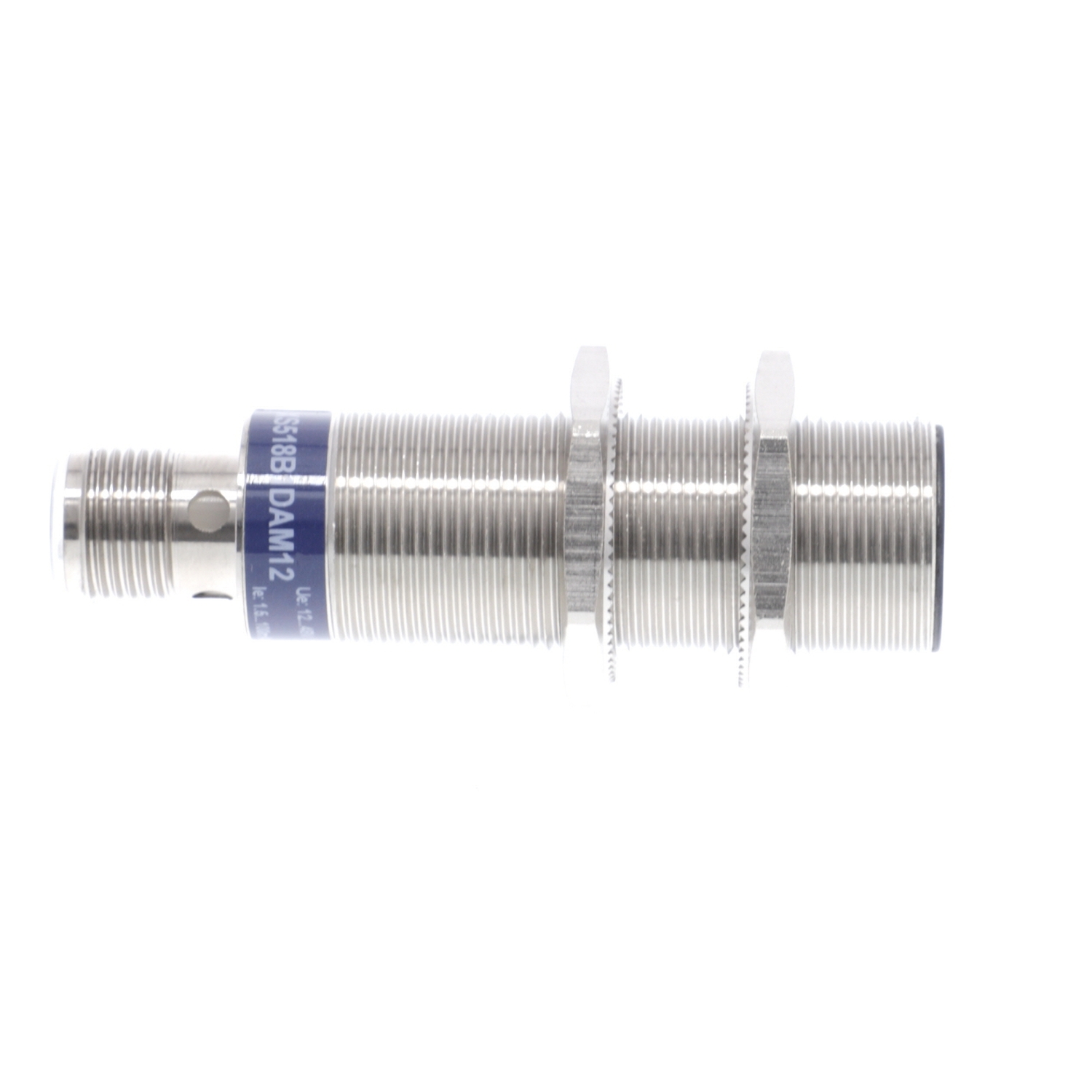

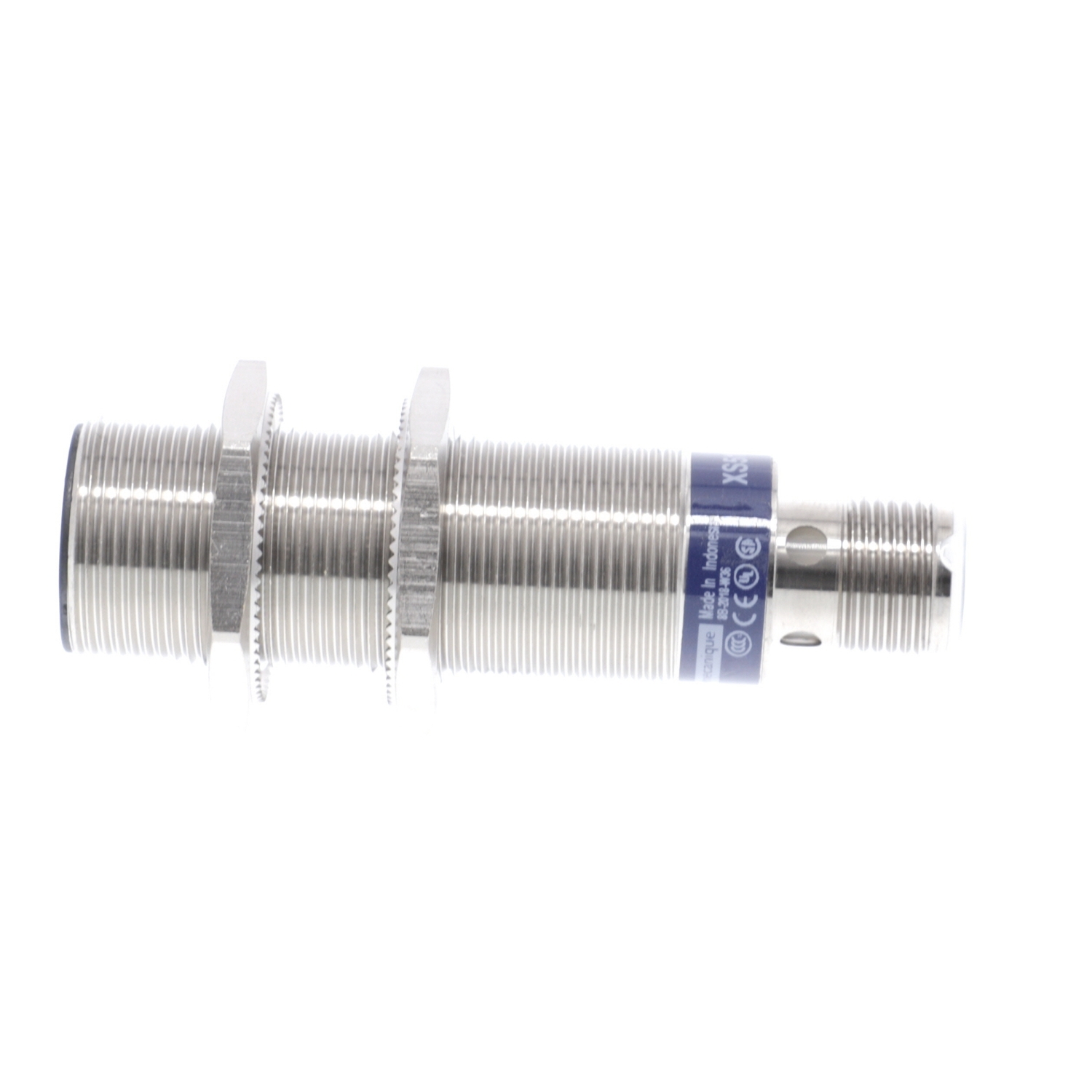

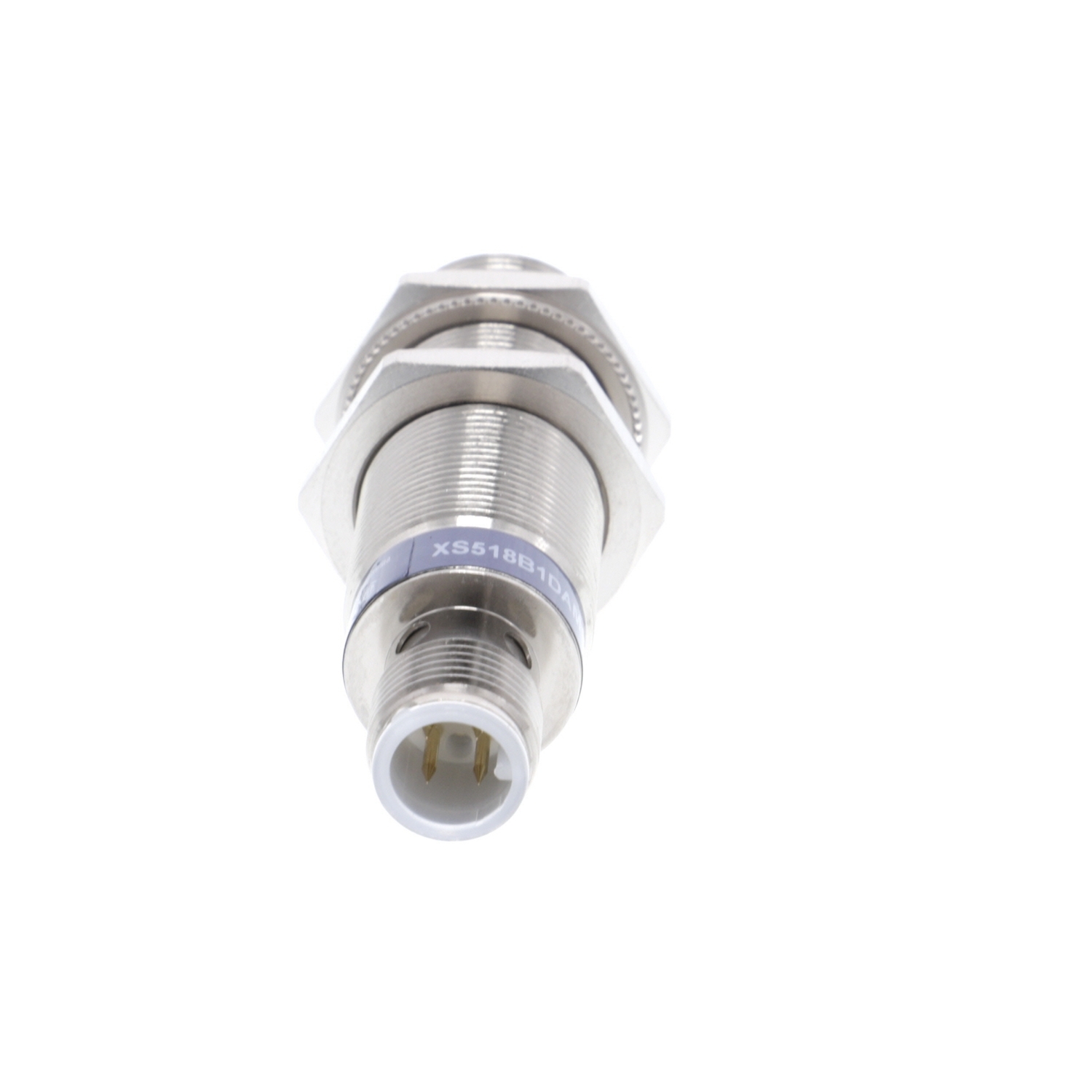

This XS cylindrical (M18 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65, IP68 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+70C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is CCC, CSA, UL certified.

Manuals & Documentation
Catalog Number XS518B1PBM12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application -
Connector Male connector M12, 4 pins
Control Output DC 3-WIRE (PNP) - 1 N.C.
Enclosure Nickel Plated Brass
Indicator Output state 1 LED yellow)
Material Metal
Mounting Flush
Sensing Range 5 MM,> 0.16...0.31 IN (> 4...8 MM)
Sensor 18 MM,50 MM,INDUCTIVE PROXIMITY SENSOR
Special Features METAL
Standard IP67 conforming to IEC 60529;IP69K conforming to DIN 40050;CE
Supply Voltage 12...24 V DC reverse polarity protection
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=869516&lang=en-us
UPC 785901234890
GTIN 03389110143959
Item Type Inductive proximity sensor;Cylindrical M18
Environmental Conditions WATER TIGHT, DUST TIGHT, OIL TIGHT, CORROSION RESISTANT AND SUBMERSIBLE (INDOOR/OUTDOOR)
Operating Temperature -25-70 A Degrees C
