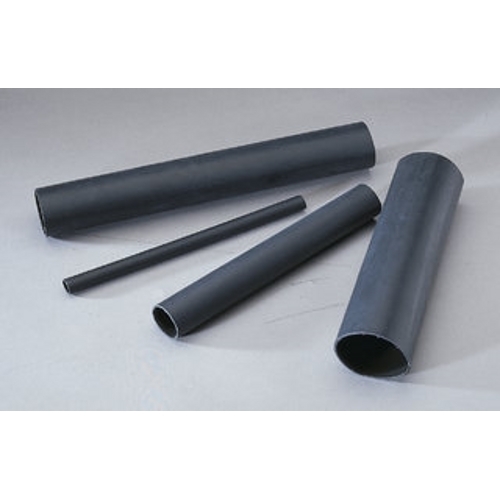

IDEAL, Heat Shrinkable Tube, Thermo-Shrink, Heavy-Wall Heat Shrink Tubing, Shrink Ratio: 3:1, Thickness: 0.120 IN, Length: 9 IN, Volume Resistivity: 1013 OHM -CM MIN, Dielectric Strength: 500 V/MIL (20 KV MINT), Continuous Operating Temperature: -55 To 110 DEG C, Minimum Shrink Temperature: 120 - 250 DEG C (200 DEG C Recommended), Low Temperature Flexibility: -55 DEG C, Heat Shock: No Cracks, Flowing Or Dripping (4 HR At 225 DEG C), Water Absorption: 0.5 PCT, Heat Aging: 500 PCT (168 HR At 175 DEG C Tensile Strength Elongation), Cable Range: 1 - 3/0 AWG, Nominal Recoveredi.d. (max.): 0.350 IN, Expanded I.d. (min.): 1.100, Copper Corrosion: Non-Corrosive, Ultimate Elongation: 600 PCT Min., Model: TS-46-1100
- MFR:
- Ideal Industries
- MFR #:
- 46-352
- UPC:
- 783250463527
- Item #:
- 293191
IDEAL, Heat Shrinkable Tube, Thermo-Shrink, Heavy-Wall Heat Shrink Tubing, Shrink Ratio: 3:1, Thickness: 0.120 IN, Length: 9 IN, Volume Resistivity: 1013 OHM -CM MIN, Dielectric Strength: 500 V/MIL (20 KV MINT), Continuous Operating Temperature: -55 To 110 DEG C, Minimum Shrink Temperature: 120 - 250 DEG C (200 DEG C Recommended), Low Temperature Flexibility: -55 DEG C, Heat Shock: No Cracks, Flowing Or Dripping (4 HR At 225 DEG C), Water Absorption: 0.5 PCT, Heat Aging: 500 PCT (168 HR At 175 DEG C Tensile Strength Elongation), Cable Range: 1 - 3/0 AWG, Nominal Recoveredi.d. (max.): 0.350 IN, Expanded I.d. (min.): 1.100, Copper Corrosion: Non-Corrosive, Ultimate Elongation: 600 PCT Min., Model: TS-46-1100
- MFR #:
- 46-352
- UPC:
- 783250463527
- Item #:
- 293191
TS-46 irradiated cross-linked polyolefin with 3:1 standard shrink ratioAdhesive liner provides complete insulation and protection to electrical splices in above-grade, underground or underwater applicationsMaximum flame retardancyMeets UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western Underground Guides Nos. 2.4, 2.5, MIL-DTL-23053/15, IEEE 383 Vertical Flame Test, ANSI C37.20.2, ICEA S-19-8 and NEMA insulation thickness requirementsRated for 600V, 90C continuous use
| Catalog Number | 46-352 |
| Manufacturer | Ideal Industries |
| Brand | Ideal |
| Country of Origin | United States |
| Made in USA | Yes |
| Special Features | Features: TS-46 irradiated cross-linked polyolefin with 3:1 standard shrink ratio; Adhesive liner provides complete insulation and protection to electrical splices in above-grade, underground or underwater applications; Maximum flame retardancy; Meets UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western Underground Guides Nos. 2.4, 2.5, MIL-DTL-23053/15, IEEE 383 Vertical Flame Test, ANSI C37.20.2, ICEA S-19-8 and NEMA insulation thickness requirements; Continuous operating temperature from -55 Degrees C to 110 Degrees C; Rated for 600V, 90 Degrees C continuous use; Shrink temperature of 120 Degrees C; Ultimate Elongation: 600 PCT min; Secant Modulus @ 2 PCT Strain: 25,000 PSI max; Specific Gravity: 1.20 max; Cable Range: 1 - 3/0 AWG; Nominal Recoveredi.d. (max.): 0.350 IN; Expanded I.d. (min.): 1.100; Copper Corrosion: Non-Corrosive; Ultimate Elongation: 600 PCT Min.; Model: TS-46-1100 |
| Standard | CSA, UL Listed,RoHS |
| RoHS URL | https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF |
| UPC | 783250463527 |
| GTIN | 00783250463527 |
| Item Type | Heavy-Wall Heat Shrink Tubing |
| Length | 9 |
| Length UOM | Inch |
| Thickness | 0.120 IN |
