A wide range of I/O modules are available for use with the CSMSTR master Modular Controller. The master controller uses a high-speed serial protocol to communicate, with up to 16 slave I/O modules. Through the same backplane connection, the master Modular Controller also provides power to the modules making installing and powering these Modular Controllers easy. The CSMSTR master Modular Controller automatically identifies and addresses all connected slave modules upon powering up. By storing the configuration information of all of the modules, the CSMSTR is able to automatically configure modules if they are replaced.

Features

  • Adds remote I/O capability to the modular controller series
  • Eight input, six output digital module
  • Inputs isolated from outputs
  • Inputs independently switch selectable for sink or source signals
  • Inputs independently configurable for high or low active state
  • Inputs independently switch selectable for high or low frequency signals
  • Relay or NFET output models available
  • Six relay output

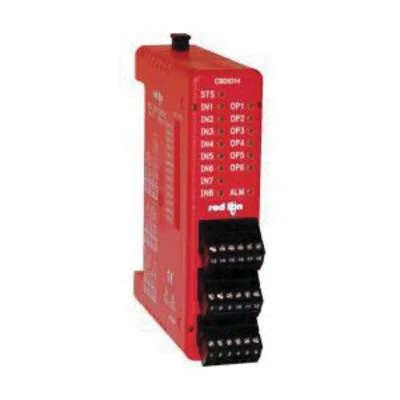

Manufacturer Part Number CSDIO14R
Brand redlion®
Manufacturer Red Lion Controls
UPC 786261310118
Country Of Origin US
Type Digital
Manufacturer Item Status Active
Country USA
Number Of Inputs 8
