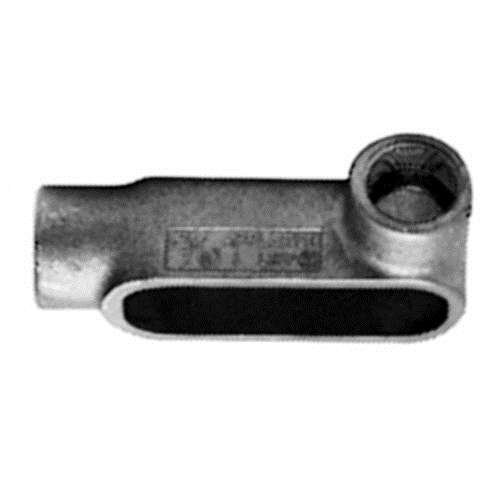

Conduit Outlet Body, Type LR, 1 in Hub, 2 Hubs, 11 cu-in Capacity, Form 7 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Cast Aluminum, Epoxy Powder Coated, 6 in L x 2.75 in W x 2.88 in H Dimensions
- MFR:
- Appleton Electric
- MFR #:
- LR37SA
- UPC:
- 781381600927
- Item #:
- 291246
Conduit Outlet Body, Type LR, 1 in Hub, 2 Hubs, 11 cu-in Capacity, Form 7 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Cast Aluminum, Epoxy Powder Coated, 6 in L x 2.75 in W x 2.88 in H Dimensions
- MFR #:
- LR37SA
- UPC:
- 781381600927
- Item #:
- 291246
FM7 UNILETS Type LR Conduit Outlet Body, Hub Size: 1 IN, Form: 7, Length: 6 IN, Width: 2-3/4 IN, Material: Aluminum, Finish: Epoxy Powder Coat, Connection: Tapered Female Threaded, Standard: UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1, For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
Manuals & Documentation
| Catalog Number | LR37SA |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| Connection | Tapered Female Threaded |
| Finish | Epoxy Powder Coat |
| Form | 7 |
| Hub Size | 1 IN |
| Material | Aluminum |
| Special Features | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers; Equivalent FM7 and Form 7 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Wiring capacity: 11 CU-IN as per NEC 314.16(A) |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| UPC | 781381600927 |
| GTIN | 00781381600927 |
| Item Type | Type LR Conduit Outlet Body |
| Length | 6 |
| Length UOM | Inch |
| Width | 2-3/4 |
| Width UOM | Inch |
