Appleton

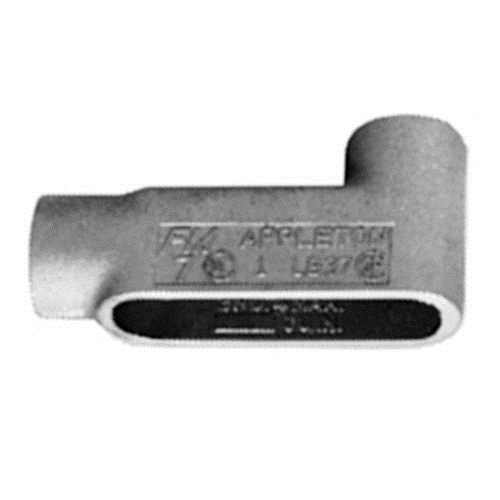

Conduit Outlet Body, Type LB, 1 in Hub, 2 Hubs, 11 cu-in, 7, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Cast Aluminum, Epoxy Powder Coated, 6 in L x 2.75 in W x 2.88 in H

MFR:
Appleton Electric
MFR #:
LB37SA
UPC:
781381600743
Item #:
291243

FM7 UNILETS Type LB Conduit Outlet Body, Hub Size: 1 IN, Form: 7, Length: 6 IN, Height: 2.88 IN, Material: Aluminum, Finish: Epoxy Powder Coat, Connection: Tapered Female Threaded, Standard: UL 514A, UL 514B, UL File Number E2527, CSA C22.

Manuals & Documentation
Catalog Number LB37SA
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
Connection Tapered Female Threaded
Finish Epoxy Powder Coat
Form 7
Hub Size 1 IN
Material Aluminum
Special Features Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers; Equivalent FM7 and Form 7 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Wiring capacity: 11 CU-IN as per NEC 314.16(A)
Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
UPC 781381600743
GTIN 00781381600743
Item Type Type LB Conduit Outlet Body
Length 6
Length UOM Inch
Height 2.88
Height UOM Inch
