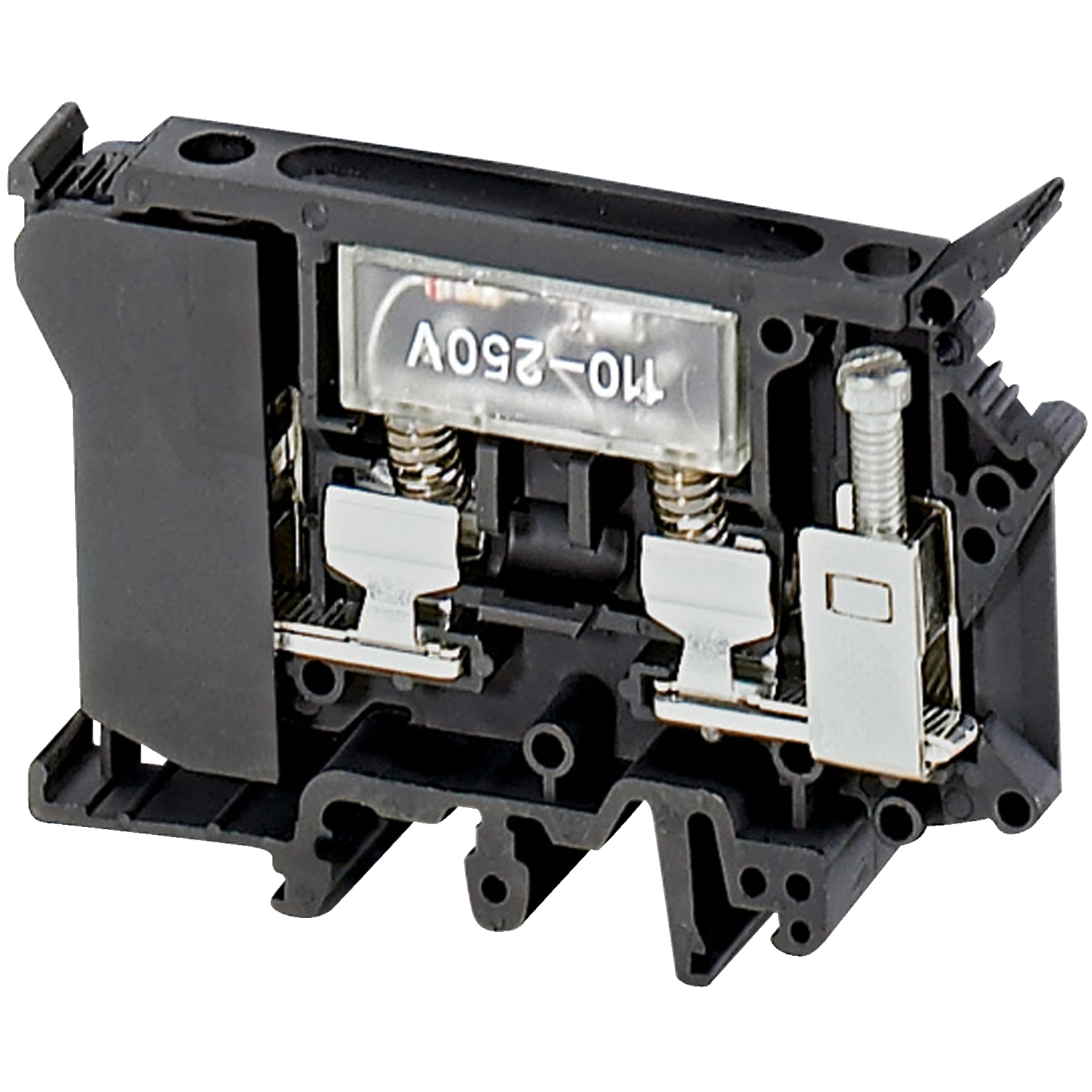

NSYTRV42SF6LA Linergy 1-Level Fused Terminal Block With 110/250 V AC/VDC Light Indicator, 500/600 V AC, 10 A, 0.5 to 16 sq-mm Wire, Clip-Fit Mount

MFR:
Schneider Electric
MFR #:
NSYTRV42SF6LA
Item #:
290285

The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This black fuseholder block will accept 6.3x32 mm fuses. This fuseholder has a UL rating of 10 A at 600 volts. The two terminal points have screw termination. The terminals will accept wires from 26 AWG to 8 AWG. This fuse holder has a 110 to 250 volt blown fuse indicator light to make trouble shooting fastger. With the help of a screw driver this fuse holder block will mount on 35mm DIN rail. Each block is 2.38 inches tall, 0.40 inches wide and 3.11 inches deep. Each wieghs 1.21 oz. The fuse blocks are sold in boxes of 50. The blocks are UL component recognized, CSA certified and meet IEC requirements.

Manuals & Documentation
Catalog Number NSYTRV42SF6LA
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Turkey
Made in USA No
Application 6.3 x 32 mm
Color Black
Connection 1 x screw terminal upstream;1 x screw terminal downstream
Material Polyamide 6/6: insulating case
Mounting Clip
Standard V0 0.8 mm UL 94
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403764377&lang=en-us
GTIN 03606480532382
Item Type Fused disconnect;Terminal block;Spacial enclosures
