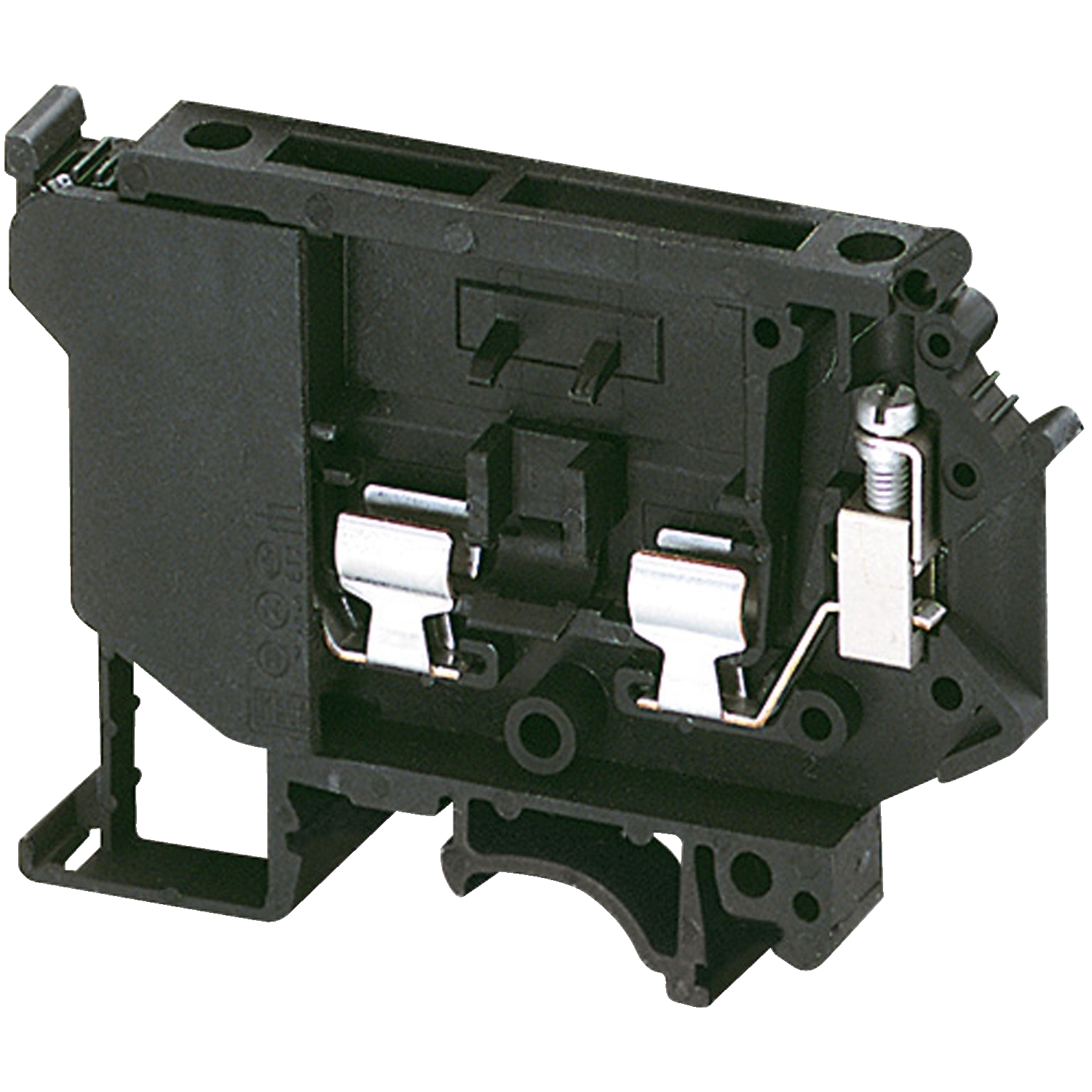

NSYTRV42SF5LA Linergy TRV 1-Level 2-Point Fused Terminal Block With 110/250 V AC/VDC Light Indicator, 500/600 V AC, 6.3/12 A, 2 to 4 sq-mm Wire, 1 Poles, Clip-Fit Mount
- MFR:
- Schneider Electric
- MFR #:
- NSYTRV42SF5LA
- Item #:
- 290283
NSYTRV42SF5LA Linergy TRV 1-Level 2-Point Fused Terminal Block With 110/250 V AC/VDC Light Indicator, 500/600 V AC, 6.3/12 A, 2 to 4 sq-mm Wire, 1 Poles, Clip-Fit Mount
- MFR #:
- NSYTRV42SF5LA
- Item #:
- 290283
Linergy TR is terminal block for Fuse disconnect type. It belongs to linergy fuse disconnect terminal block with 4 mm nominal cross section. The rated operational voltage is 500V conforming to CSA/UL and 600V conforming to EN/IEC 60947-7-1. The rated current is 6.3A conforming to EN/IEC 60947-7-1 and 10A conforming to CSA and cURus. It has Black surface treatment. Mounting by clip-on and top connection by single-level 1x1 push-in (upstream and downstream) terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS ,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, LR, GL, IEC-Ex).
Manuals & Documentation
| Catalog Number | NSYTRV42SF5LA |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Turkey |
| Made in USA | No |
| Application | 5 x 20 mm |
| Color | Black |
| Connection | 1 x screw terminal upstream;1 x screw terminal downstream |
| Material | Polyamide 6/6: insulating case |
| Mounting | Clip |
| Standard | V0 0.8 mm UL 94 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403761590&lang=en-us |
| GTIN | 03606480532351 |
| Item Type | Fused disconnect;Terminal block;Spacial enclosures |
