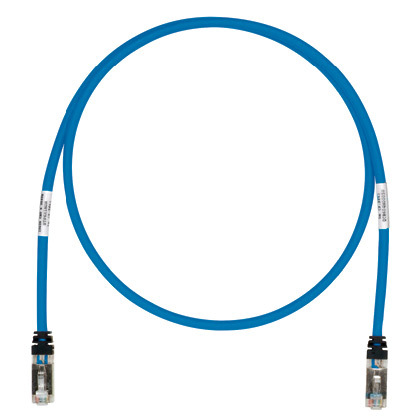

STP6X10BU PanNet TX6A 10Gig S/FTP Shielded Patch Cord, Cat 6a, 26 AWG Stranded Copper Conductor, RJ45 Modular Plug Connector, 10 ft L Cord
- MFR:
- Panduit
- MFR #:
- STP6X10BU
- UPC:
- 074983011858
- Item #:
- 290087
STP6X10BU PanNet TX6A 10Gig S/FTP Shielded Patch Cord, Cat 6a, 26 AWG Stranded Copper Conductor, RJ45 Modular Plug Connector, 10 ft L Cord
- MFR #:
- STP6X10BU
- UPC:
- 074983011858
- Item #:
- 290087
This TX6A 10Gig Cat 6A STP Patch Cord is a 10-Foot, Blue cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Manuals & Documentation
| Catalog Number | STP6X10BU |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | (1) Stacking switched and switch-to-switch links(2) Aggregation of Gigabit Ethernet channels(3) Streaming video(4) Scientific modeling(5) Storage area networks(6) Real-time intensive financial transactions(7) Animation(8) Medical imaging |
| Color | Blue |
| Conductor Material | Copper |
| Jacket Material | LSZH Material |
| Plug Type | Modular Plug |
| Standard | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA, meets ANSI/TIA-1096-A requirements (formerly FCC Part 68), meets IEC 60603-7, meets IEC 60332-1, IEC 60754-1, IEC 61034-2, UL 1863 approved, Rated for 2500 cycles with IEEE 802.3af / 802.3at |
| UPC | 074983011858 |
| GTIN | 00074983011858 |
| Item Type | Shielded Patch Cord |
| Length | 10.00 |
| Length UOM | Inch |
| Outside Diameter | 0.24 IN |
| Temperature Rating | 140 °F |
| Wire Size | 26 |
