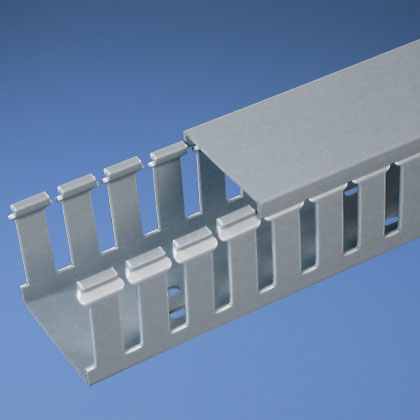

The G.75X1LG6-A Panduct Lead-Free PVC Wide Slot Adhesive Wiring Duct features a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122F (50C). Mounting holes provided. 0.75 x 1.0 (19.05 mm x 25.4 mm) and 6' (1.8 m) long. Cover sold separately. Color Light Gray.
Manuals & Documentation
| Catalog Number | G.75X1LG6-A |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wide Slot Wiring Duct for use in Control Panel and Machine Builder applications |
| Color | Light Gray |
| Connection | Mounting Holes with Adhesive |
| Material | PVC |
| Slot Pitch | 0.31 IN |
| Slot Style | Slotted |
| Standard | RoHS Compliant, UL Recognized, CE Compliant |
| UPC | 074983639823 |
| GTIN | 00074983639823 |
| Item Type | Base Wiring Duct |
| Width | 0.92 |
| Width UOM | Inch |
| Size | 0.93 x 1.06 |
