EZMH113125 EZ Meter Pak Meter Center Branch Unit, 125 Amp, 1 Phase, Ringless, Horn, 5 Jaw with no release, 3 Socket, 120/240V
- MFR:
- Schneider Electric
- MFR #:
- EZMH113125
- UPC:
- 785901402299
- Item #:
- 289190
EZMH113125 EZ Meter Pak Meter Center Branch Unit, 125 Amp, 1 Phase, Ringless, Horn, 5 Jaw with no release, 3 Socket, 120/240V
- MFR #:
- EZMH113125
- UPC:
- 785901402299
- Item #:
- 289190

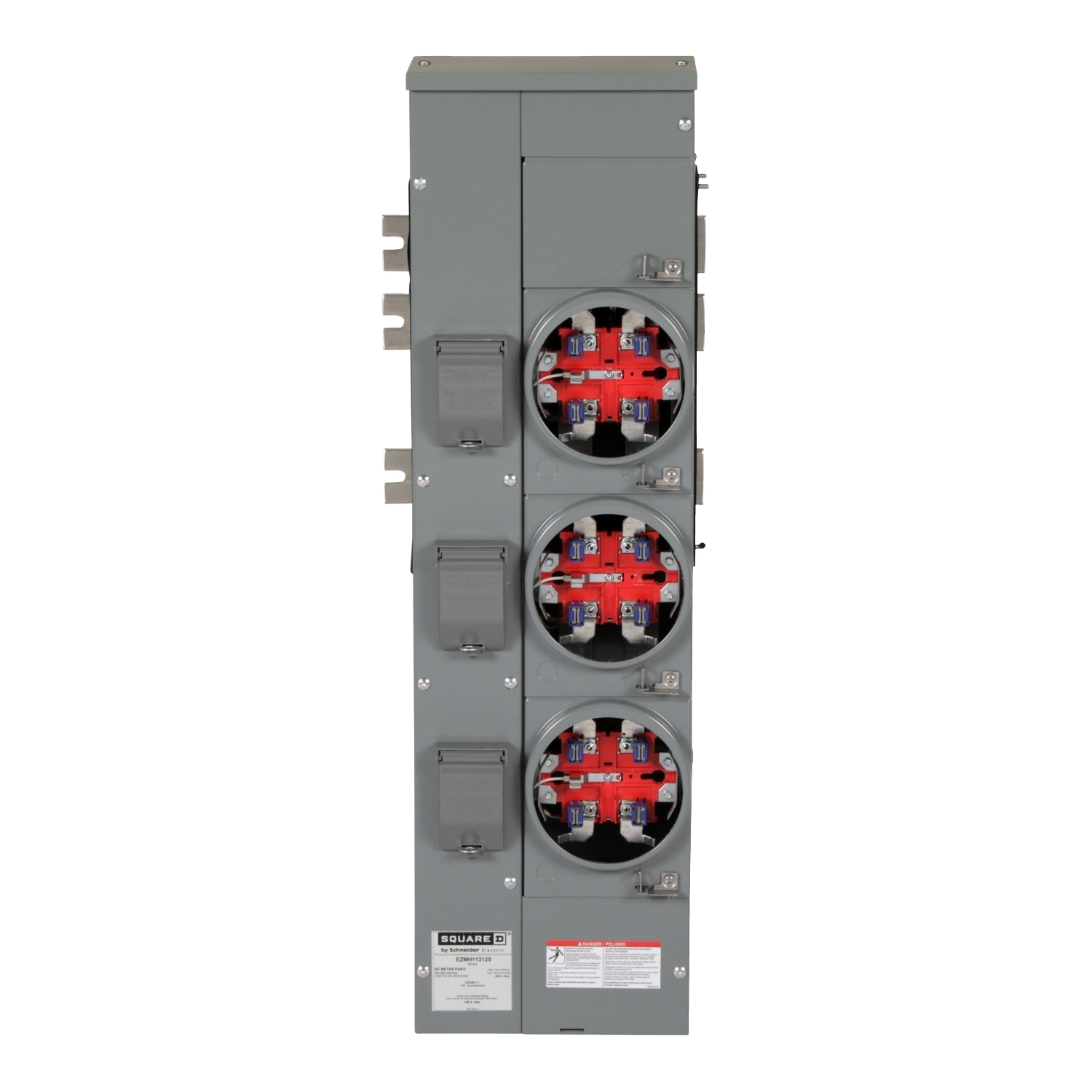

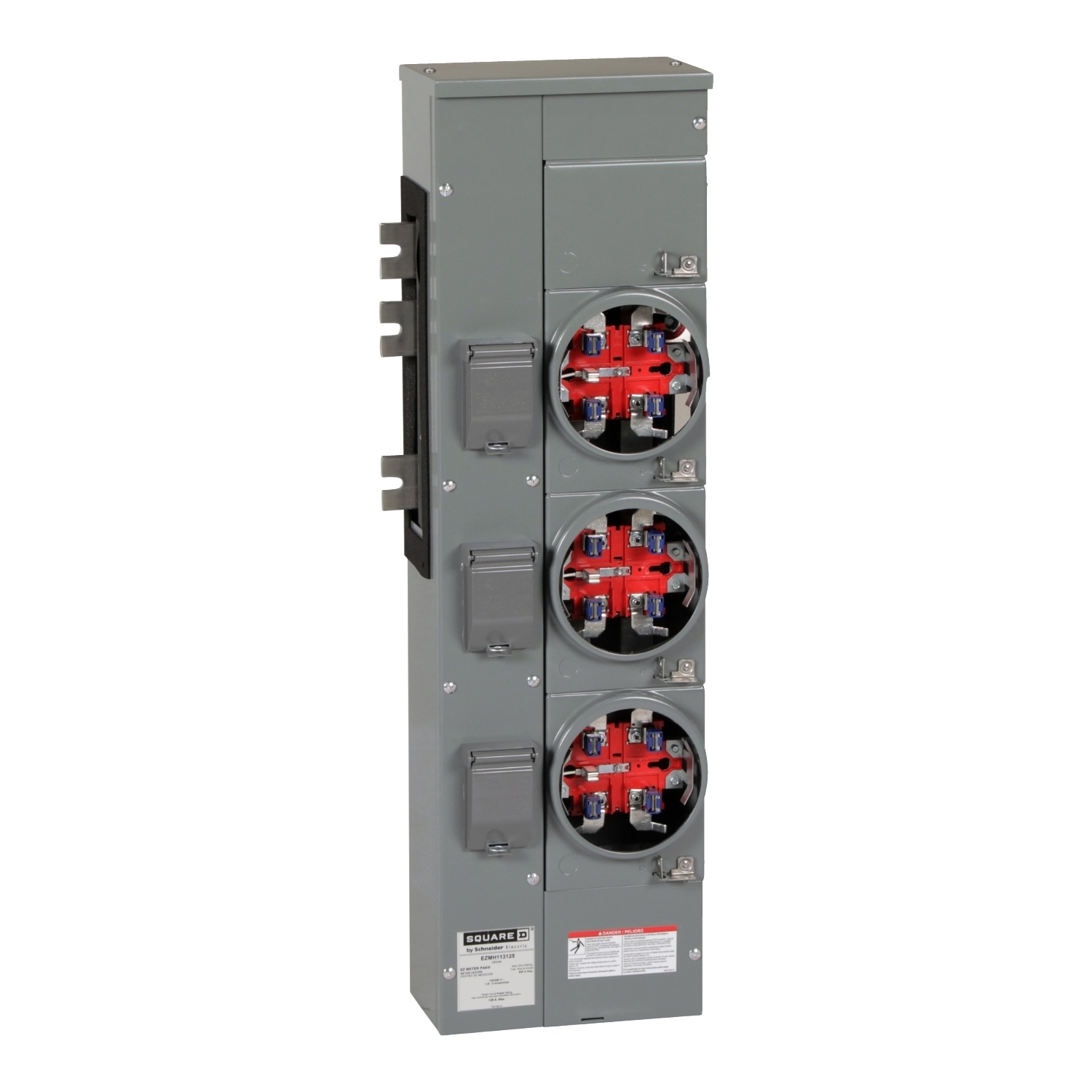

Square D EZ Meter-Pak devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 125A. It has 3 five jaw sockets for use. The system voltage is 120/240 VAC and has a horn bypass. It includes a 800 A aluminium busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
Manuals & Documentation
| Catalog Number | EZMH113125 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Bypass Type | Horn |
| Enclosure | Steel |
| Mounting | Surface |
| Phase | 1 |
| Special Features | Aluminium: busbar |
| Standard | UL Listed |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358081&lang=en-us |
| UPC | 785901402299 |
| GTIN | 00785901402299 |
| Item Type | Meter Center Branch Unit;Ringless |
| Width | 12.25 |
| Width UOM | Inch |
| Height | 42.37 |
| Height UOM | Inch |
| Depth | 7.09 IN |
