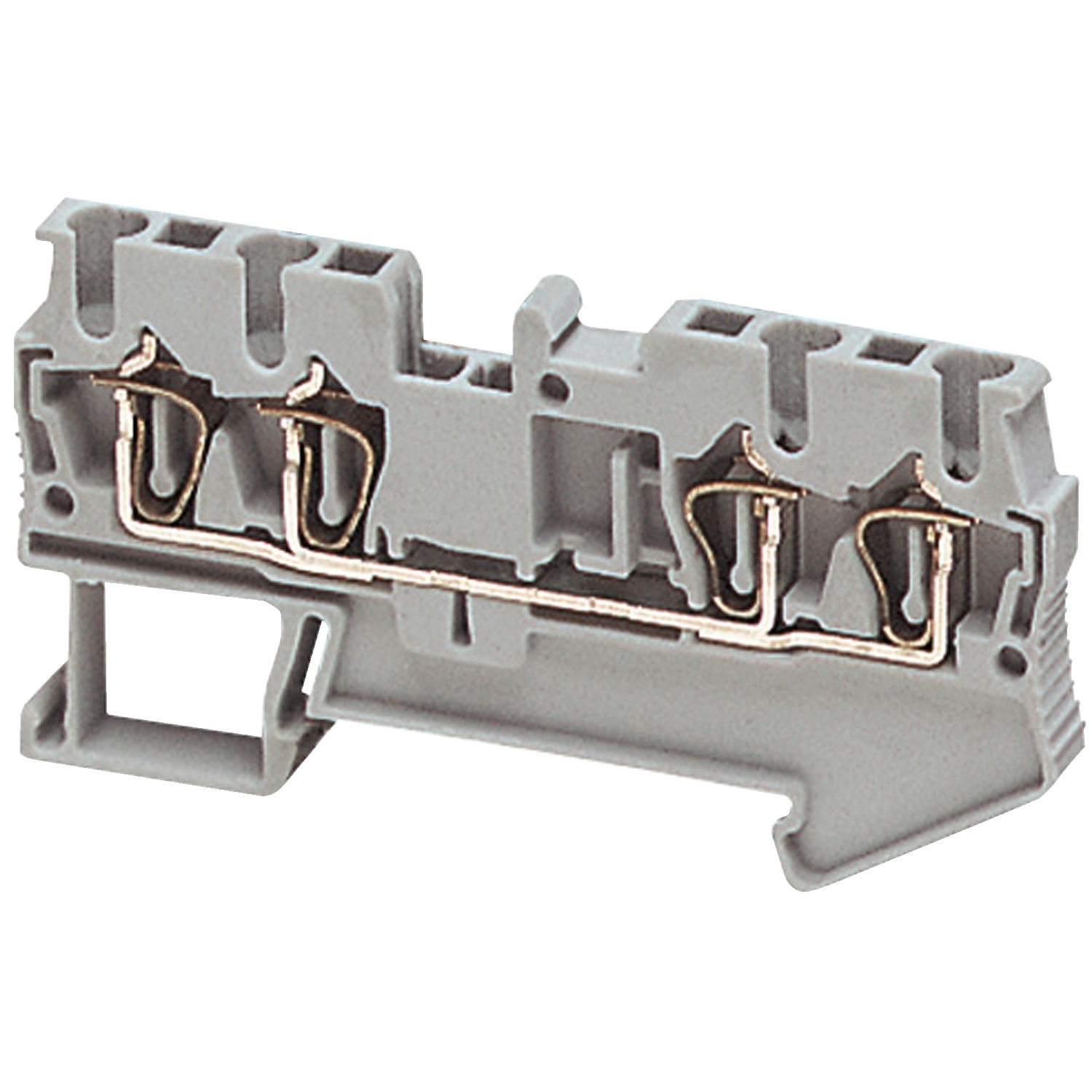

NSYTRR24 Linergy 1-Level 4-Terminal Feed-Thru Terminal Block, 800 V, 28 A, 28 to 12 AWG Solid/Stranded Wire, 1 Poles, DIN Rail Mount
- MFR:
- Schneider Electric
- MFR #:
- NSYTRR24
- Item #:
- 288319
NSYTRR24 Linergy 1-Level 4-Terminal Feed-Thru Terminal Block, 800 V, 28 A, 28 to 12 AWG Solid/Stranded Wire, 1 Poles, DIN Rail Mount
- MFR #:
- NSYTRR24
- Item #:
- 288319
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 800V conforming to EN/IEC 60947-7-1. The rated current is 192A conforming to EN/IEC 60947-7-1 and 192A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC).
Manuals & Documentation
| Catalog Number | NSYTRR24 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Germany |
| Made in USA | No |
| Color | Gray |
| Connection | 2 x spring terminal downstream;2 x spring terminal upstream |
| Material | Polyamide 6/6: insulating case;copper alloy: connector and screw;copper alloy: commoning link;chromium-nickel steel: spring |
| Mounting | Clip |
| Standard | V0 0.8 mm UL 94 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403762111&lang=en-us |
| GTIN | 03606480532580 |
| Item Type | Passthrough;Terminal block;Spacial enclosures |
