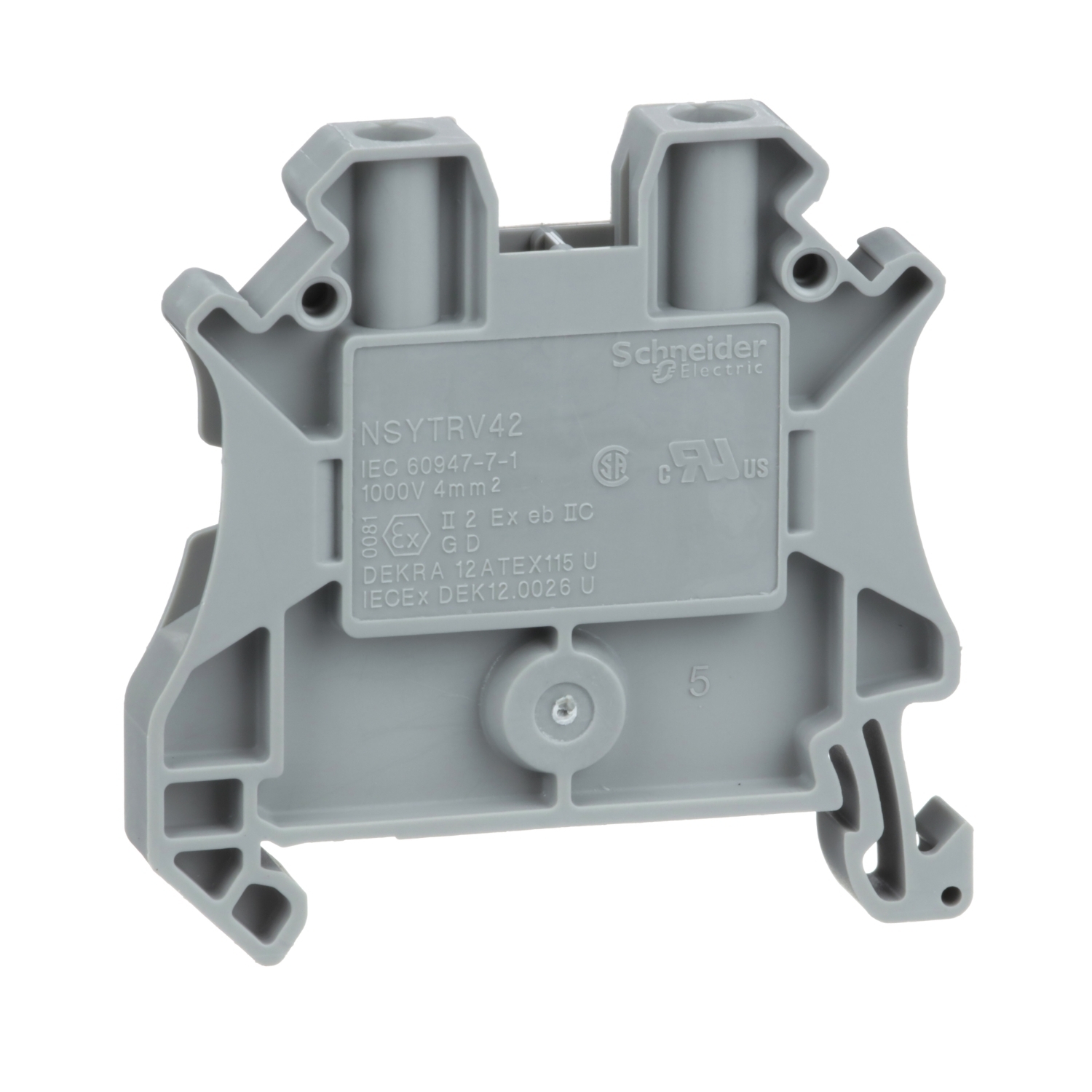

NSYTRV42 Linergy TRV Feed Through Terminal Block, 600/690/1000 V AC, 32 A, DIN Rail Mount

MFR:
Schneider Electric
MFR #:
NSYTRV42
Item #:
288294

Linergy terminal blocks offer three terminal block technologies. The traditional screw connection, the spring clamp connection, and the new pushin connection. The industrial control, machine tool, packaging, material hadling, HVAC, textile, hoisting, water, marine, critiical power, elevator industries and many more use these terminal blocks for their connection requirements. These terminal blocks are designed for fast and easy installation. A wide variety of accessories are availble for these blocks to make your total installation easier. Linergy terminal blocks meet international standards, including UL Component Recognition and CSA certification. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC).

Manuals & Documentation
Catalog Number NSYTRV42
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin China
Made in USA No
Color Gray
Connection 1 x screw terminal upstream M3);1 x screw terminal downstream M3)
Material Polyamide 6/6: insulating case;copper alloy: connector and screw;copper alloy: commoning link;chromium-nickel steel: spring
Mounting Clip
Standard V0 0.8 mm UL 94
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403761175&lang=en-us
GTIN 03606480531897
Item Type Passthrough;Terminal block;Spacial enclosures
