VW3A7723 Altivar Braking Resistor, For Use With Altivar 12, Altivar 312, Altivar 312 Solar, Altivar Easy 310 and Altivar 310L Variable Frequency Drive, 100 Ohm, IP00, 28 W 122 deg F/32 W 104 deg F
- MFR:
- Schneider Electric
- MFR #:
- VW3A7723
- Item #:
- 286384
VW3A7723 Altivar Braking Resistor, For Use With Altivar 12, Altivar 312, Altivar 312 Solar, Altivar Easy 310 and Altivar 310L Variable Frequency Drive, 100 Ohm, IP00, 28 W 122 deg F/32 W 104 deg F
- MFR #:
- VW3A7723
- Item #:
- 286384

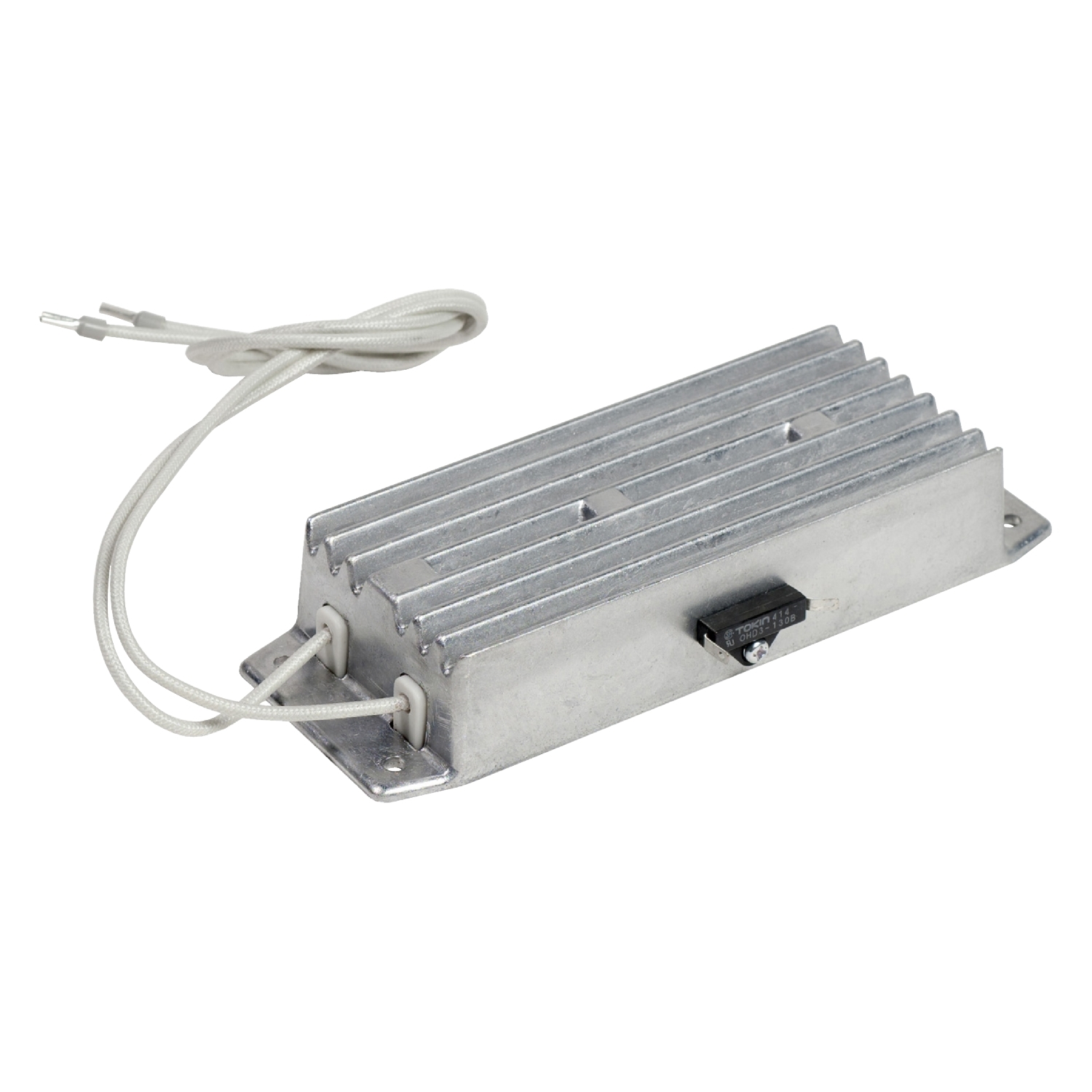

This braking resistoris an option for variable speed drives of Altivar ranges. It has an Ohmic value of 100Ohms at 20C and its protection index is IP00. It is compatible with Altivar 12, Altivar 312, Altivar 312 solar, easy Altivar 310 and easy Altivar 310L ranges. It is compatible with Altivar 312, Altivar 320 and Altivar easy 310. the power available is 28W at 50c and 32W at 40c. It weighs 0.605kg and its dimensions are, 60mm wide, 170mm high, 30mm deep.
Manuals & Documentation
| Catalog Number | VW3A7723 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=9480075&lang=en-us |
| GTIN | 03606480075827 |
